Circuit Diagrams of Electrical Appliances
21-155

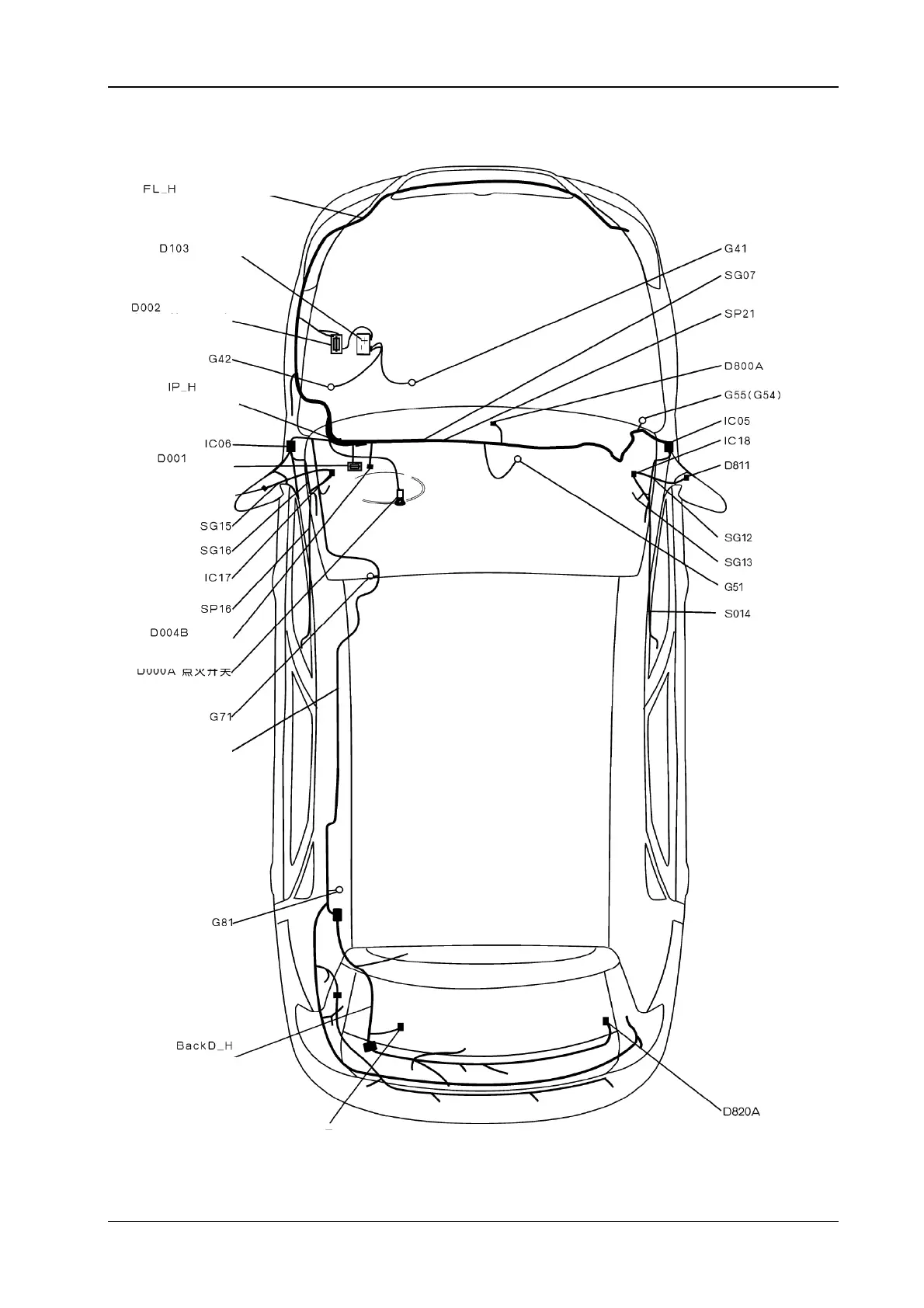

18.2 The electrical location diagram for the back window and rear view mirror (H30)
The front wiring harness
Battery
The engine compartment
fb
The instrument panel wiring harness
Cabin fuse box
D812 The rear view mirror heating
The combined instrument yellow
D00A The ignition switch
BD_H Cabin wiring harness
The back door wiring harness trunk
D820B The back window frost removing
The back window frost
removing +
The right rear view mirror heating
The manual operated air
conditionin
g
control module
