Circuit Diagrams of Electrical Appliances
21-161

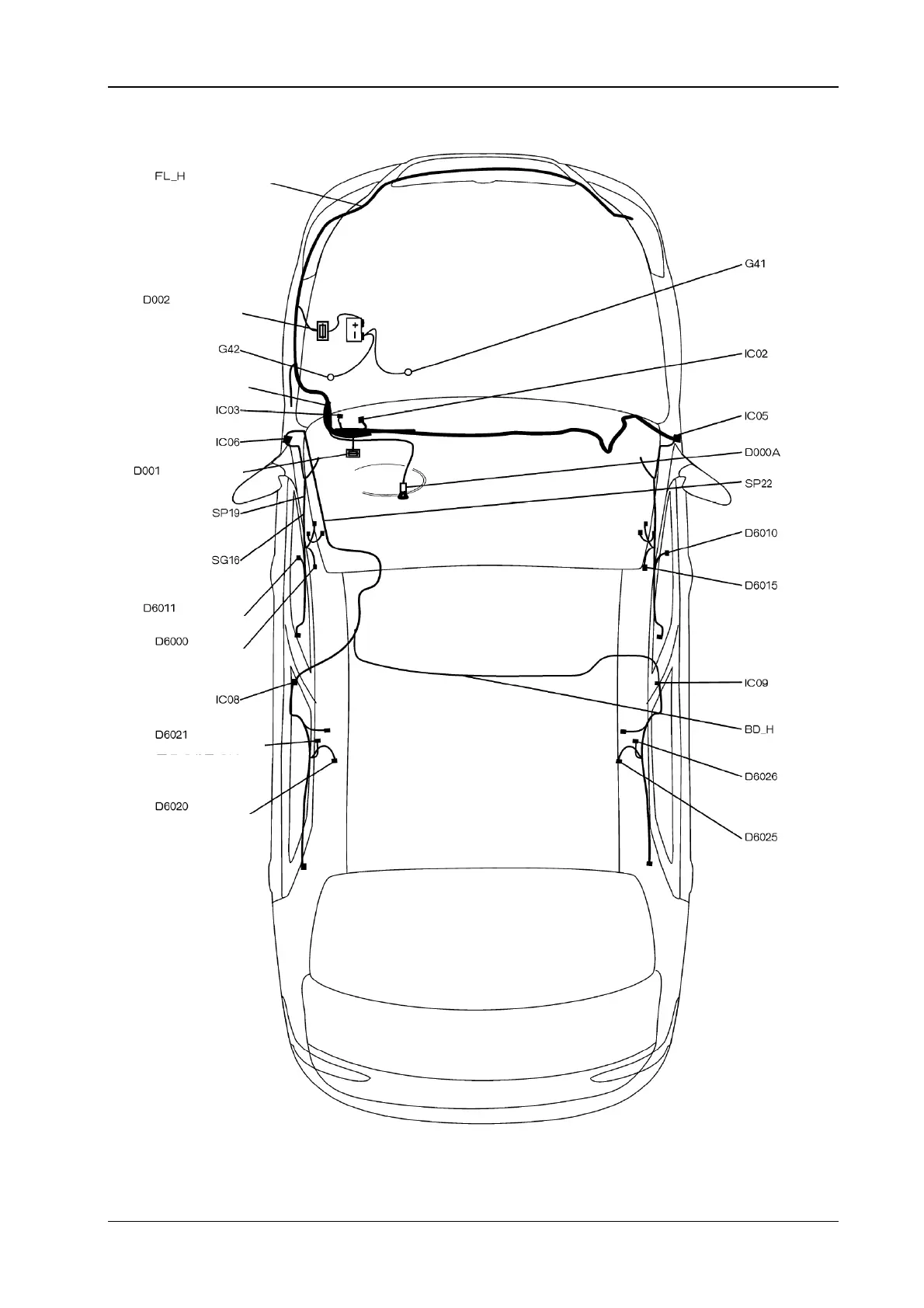

20.1 The electrical location diagram for the electric vehicle door and window S30/H30
The front wiring harness
Cabin fuse box
IP_H The instrument panel wiring harness
The river electric window motor
The glass rising main switch
The left back electric window motor
The left back electric window switch
The ignition switch
The right front electric window motor
The right front electric window switch
The cabin wiring harness
The right back electric window motor
The right back electric window switch
The engine compartment fuse
