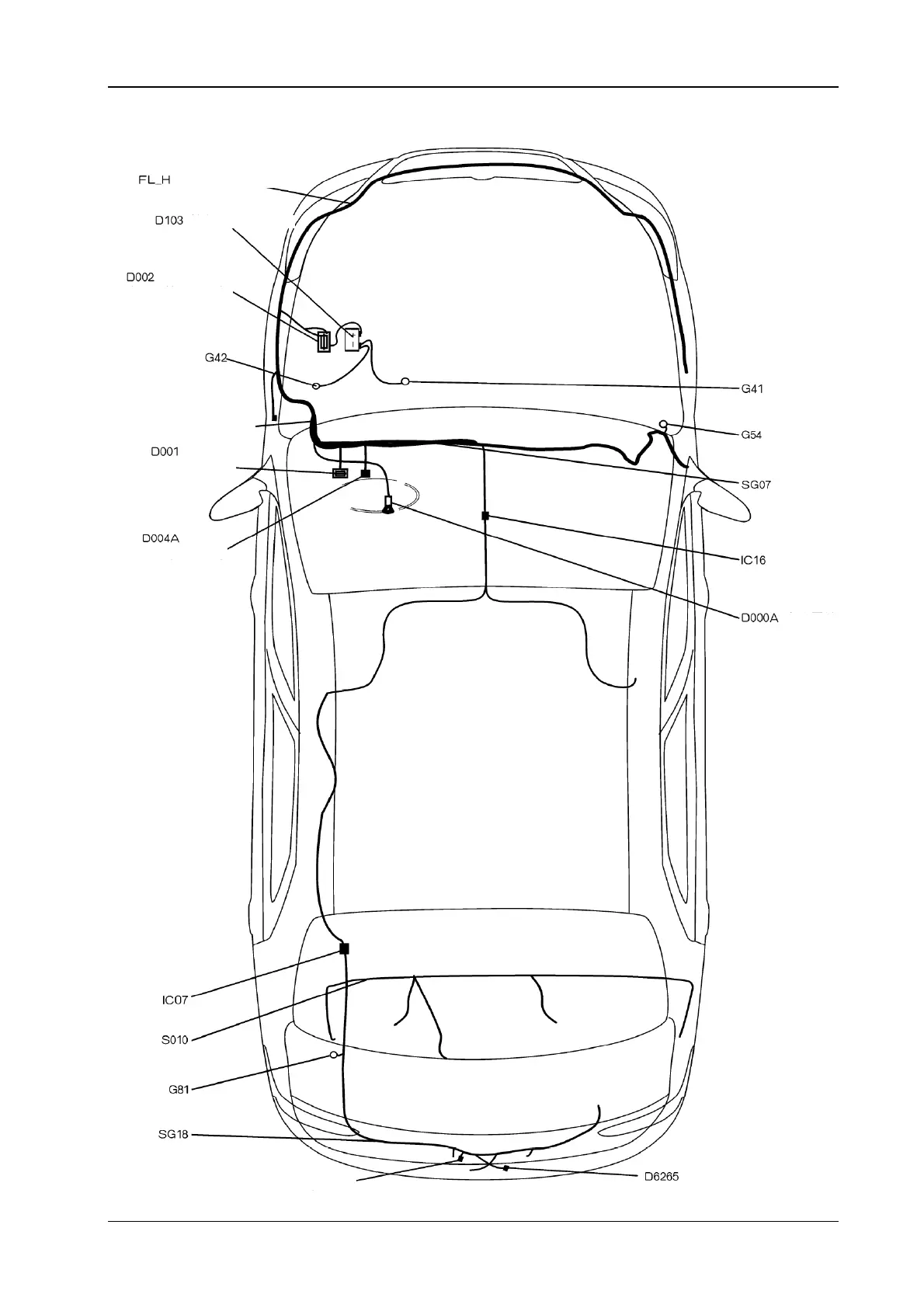

22.1 The electrical location diagram for the luggage compartment unlocking S30
The front wiring harness
Battery
Engine fuse box
IP_H The instrument wiring harness
Cabin fuse box
The combined instrument Blue
D6260The luggage compartment lock
assembly
The luggage compartment
unlocking assembly
The ignition switch
