DongFeng S30 - Page 194

Circuit Diagrams of Electrical Appliances
21-173

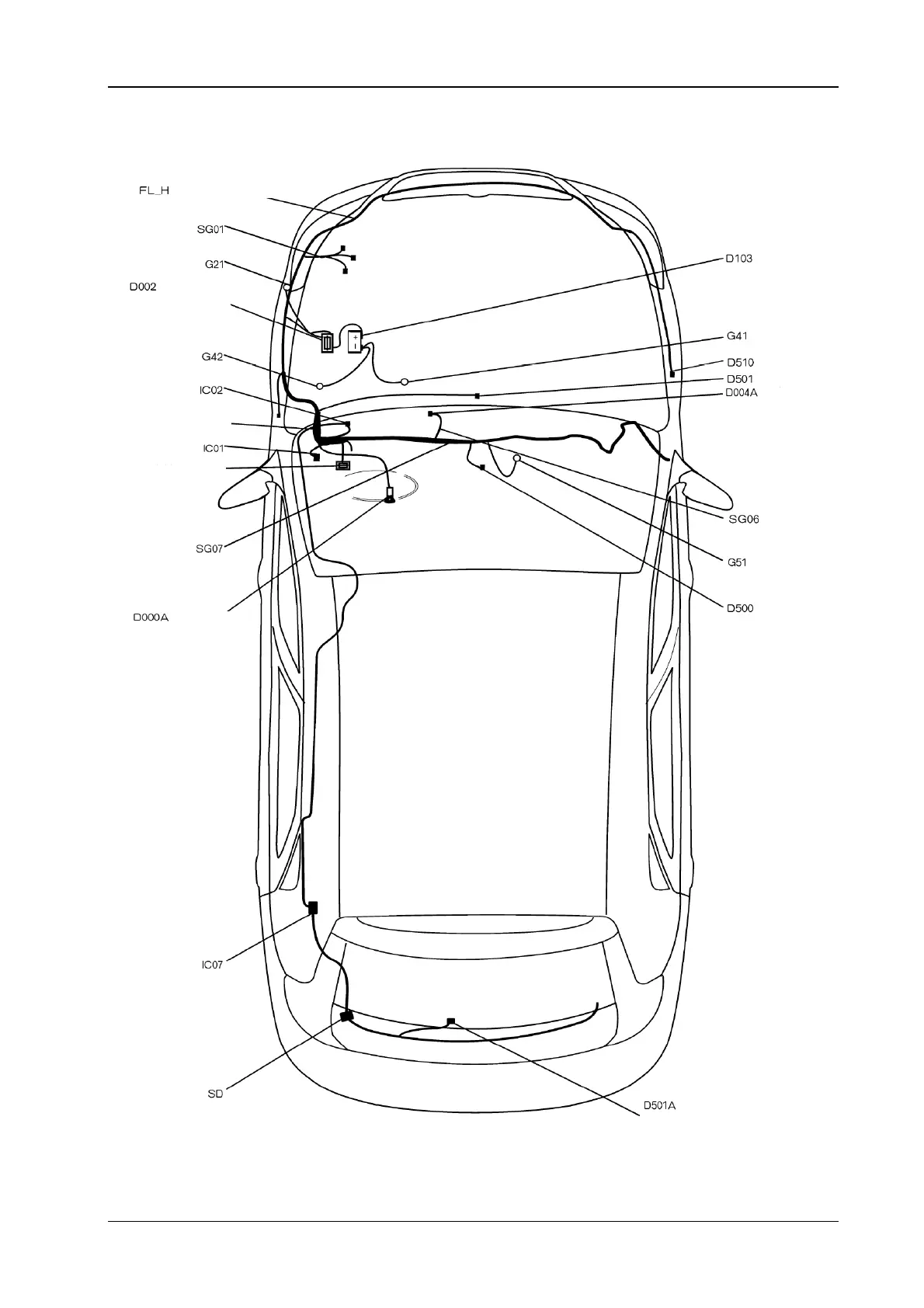

24.2 The electrical location diagram for the wind shield wiper and washing pump (H30)
The front wiring harness
Cabin fuse box
IP_H The instrument panel
wiring harness
The engine compartment
fb
The ignition switch
Battery
The washing pump motor
The wind shield wiper
The combined instrument
blue
The wind shield wiper switch
The back wind shield wiper motor
