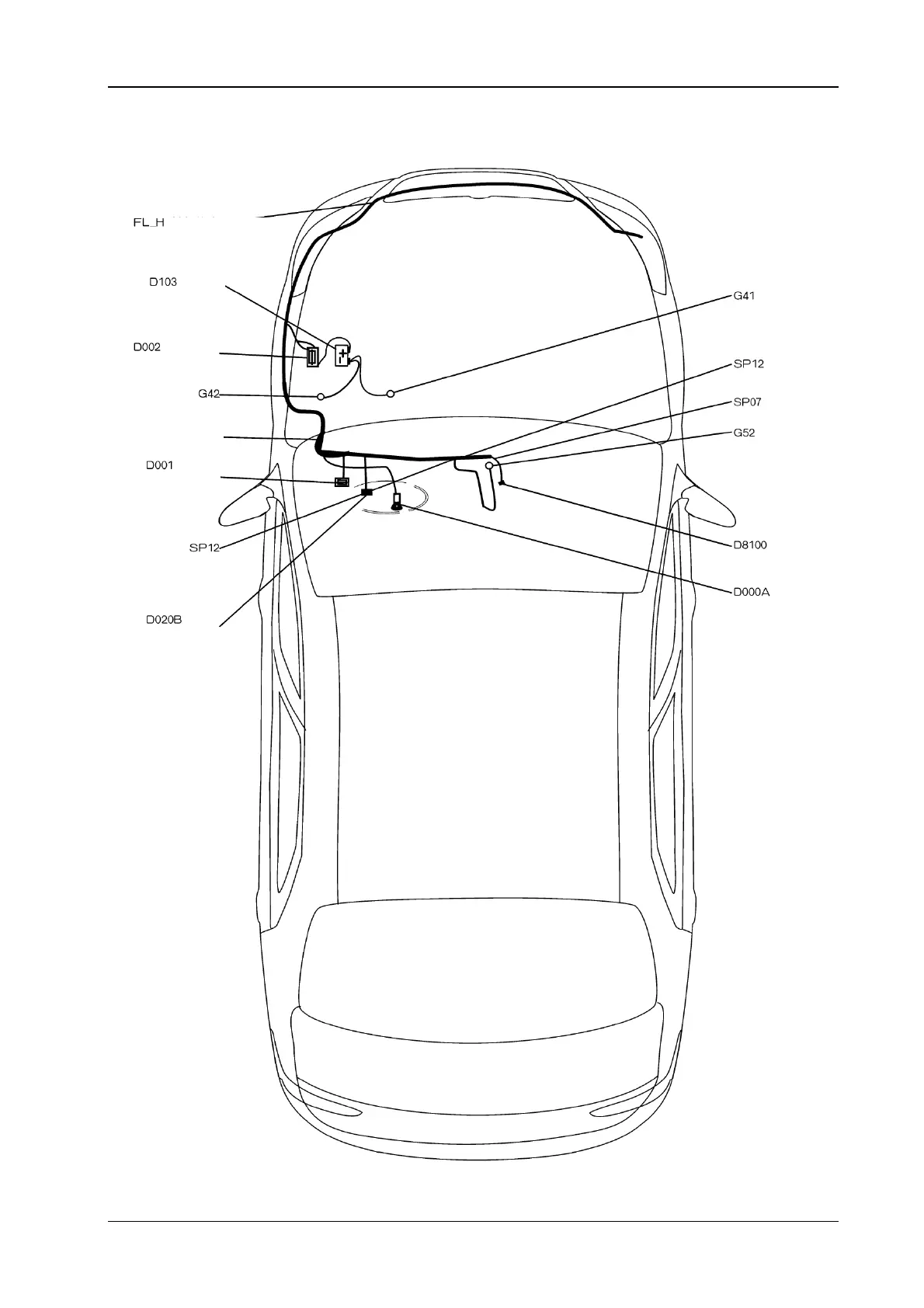

25.1 The electrical location diagram for the cigarette lighter (H30)
The front wiring harness
Battery
The engine compartment
fb
IP_H The instrument panel
wiring harness
Cabin fuse box
The light combined switch
The cigarette lighter
The ignition switch
