Electrical appliances circuit diagram
21-34

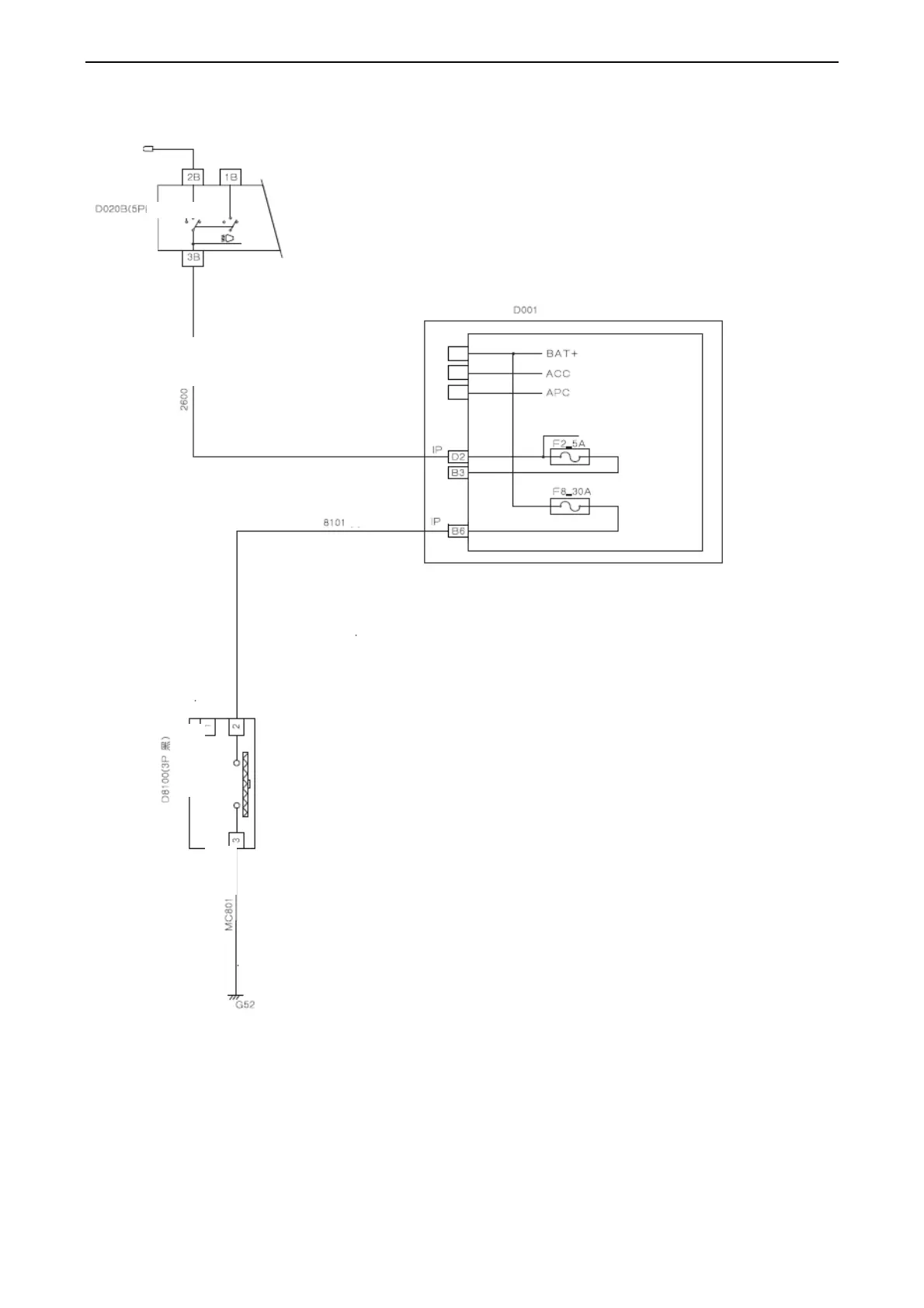

2.2 - Schematic diagram for the cigarette lighter electrical appliances (S30/H30)
Connect
to engine
fuse box
Cabin fuse box
Light
combined
switch
Yellow
White
Yellow
Y
ellow
Green
Cigarette li
g
hte
r
