Sunroof
15-21
3.1.8. Disassembly of upper apron assembly of rear pillar

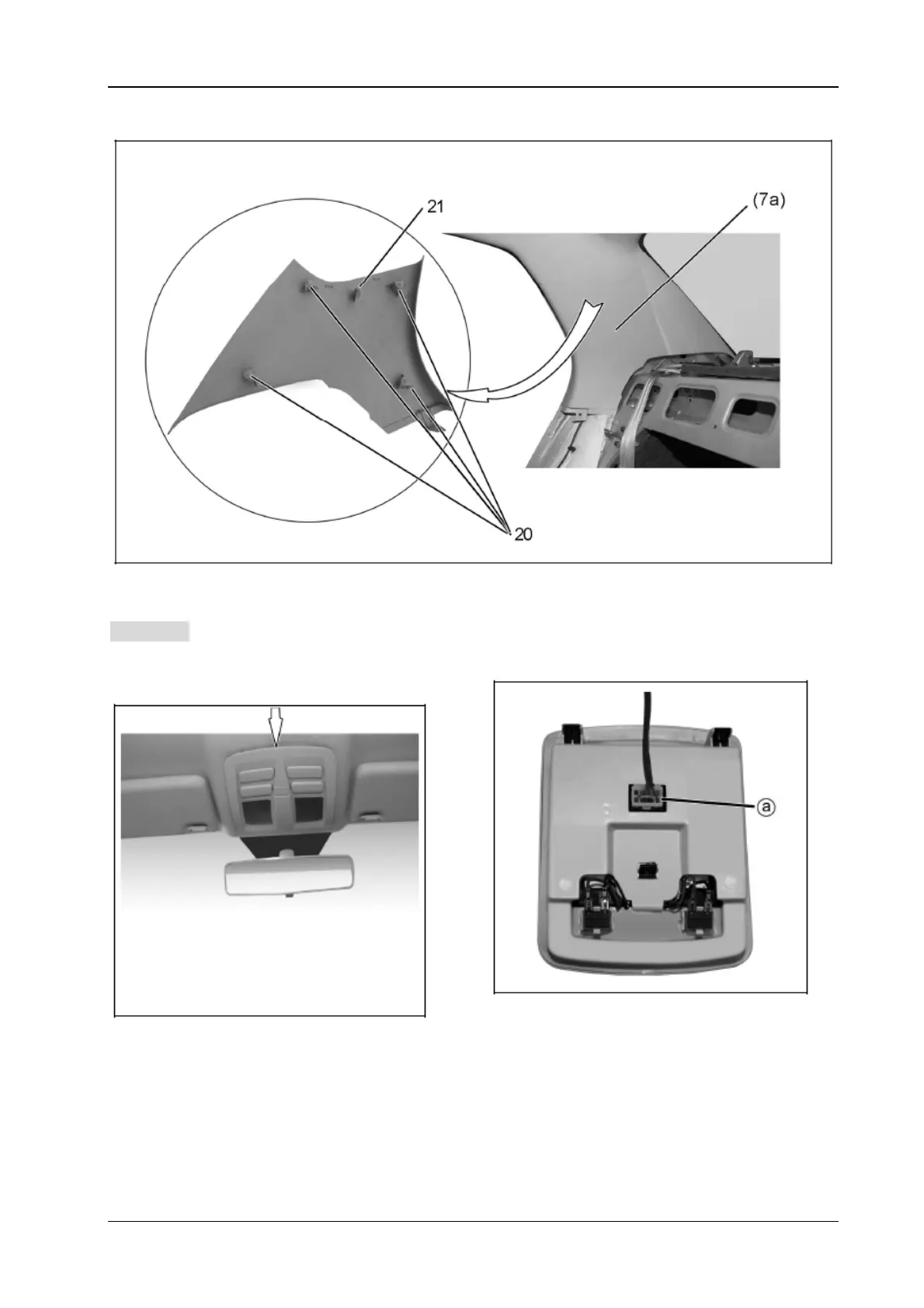

Use tool [1] to remove plastic dowel (20);
Take down upper apron assembly (7a).
Attention Avoid damaging the location pin (21) as shown in the figure.
3.1.9. Disassembly of front roof lamp
Push aside roof lamp seat frame in the
direction as indicated in the figure;
Disengage the connector at “a” point;
Take out front roof lamp assembly.
