DongFeng S30 - Page 240

Sunroof
15-20

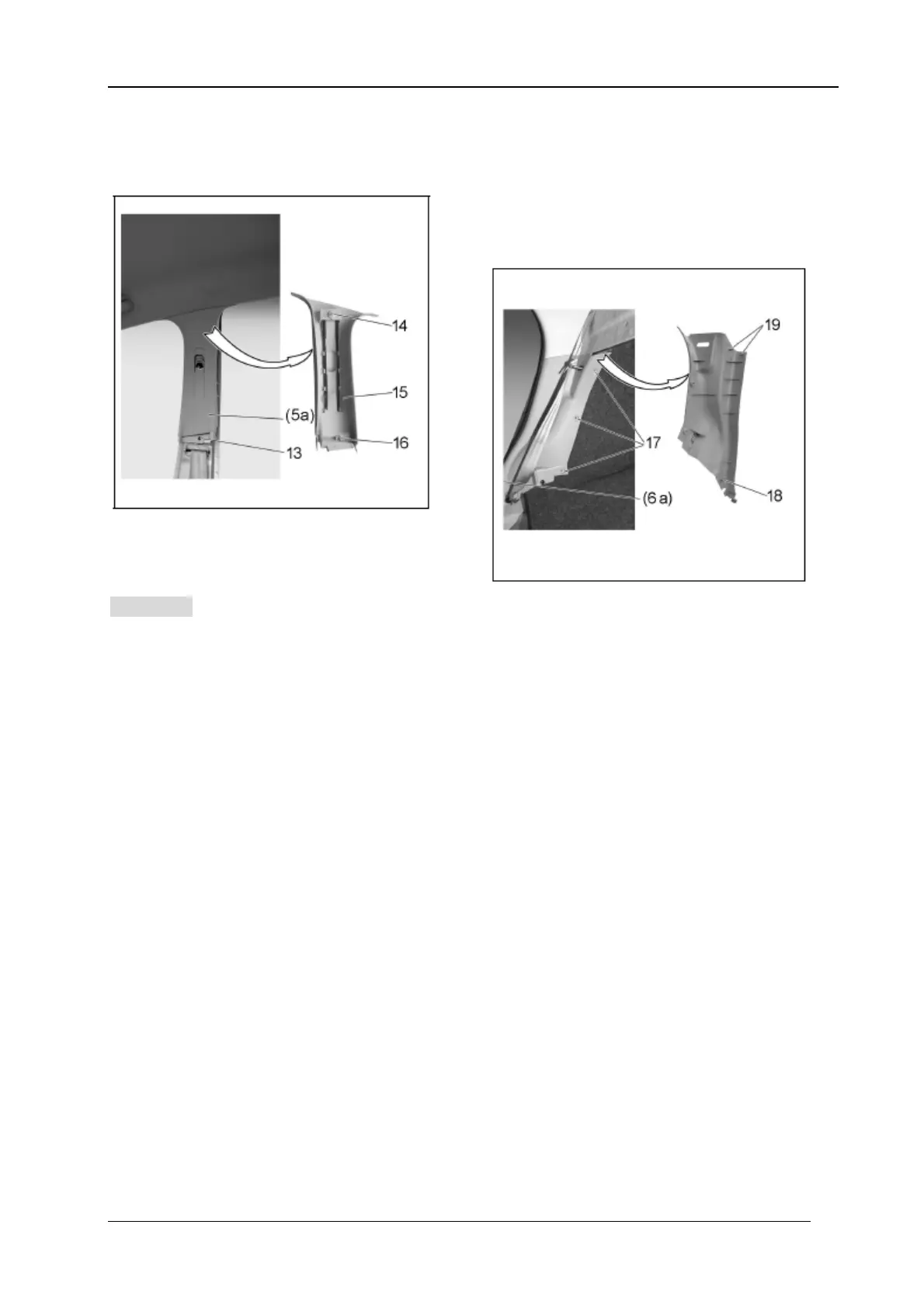

3.1.6. Disassembly of center pillar upper
apron
 Remove screw (13);
 Remove plastic dowel (14);
 Upper apron of center pillar (5a).
Attention Be careful to avoid damaging the
snap detents (15) and (16) as shown in the
figure.
Tips: remove rear seat back and lift rear
cushion for the convenience of operation.
3.1.7. Disassembly of rear pillar lower
apron
Preparation:
 Remove rear seat
 Remove rear seat belt
 Screw (17);
 Use tool [1] to remove plastic dowel (18);
 Use tool [1] to disengage snap (19);
 Lower apron of rear pillar (6a).
