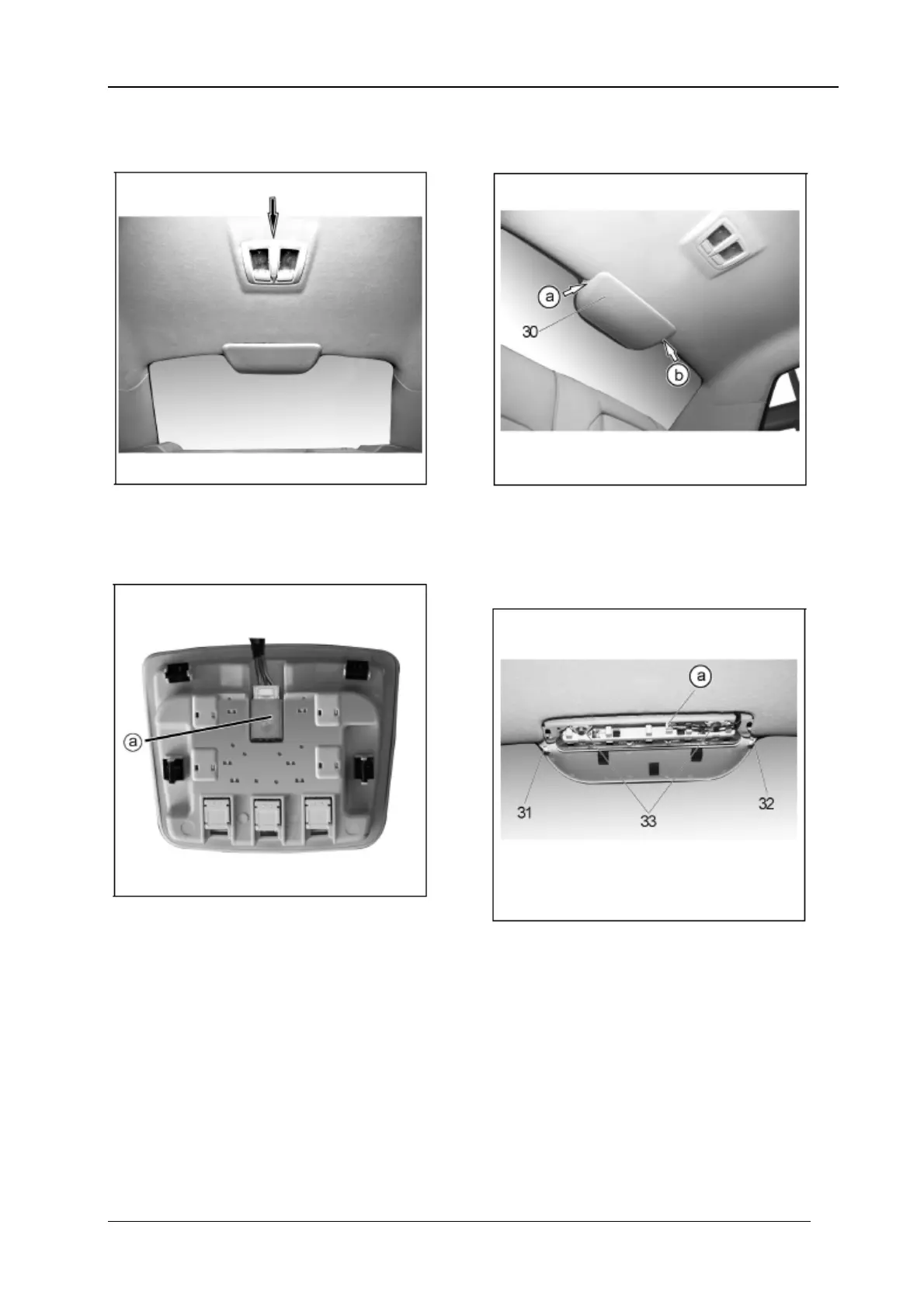

3.1.13. Disassembly of rear roof lamp
Push aside seat frame outward in the
direction as indicated in the figure.
Disengage the connector at “a” point;
Take out rear roof lamp assembly.
3.1.14. Disassembly of the 3rd brake light
Press and hold the snaps at “a” and “b”
points.
Dismantle the cover (30) as shown in the
figure.
Snaps (31) and (32).
Disengage the connector at “a” point;
Bolt (33);
Remove the 3rd brake light assembly;
Remove inner roof trim panel.
Tips: pull out roof from boot.
3.2. Disassembly and assembly of sunroof
