Sunroof
15-25

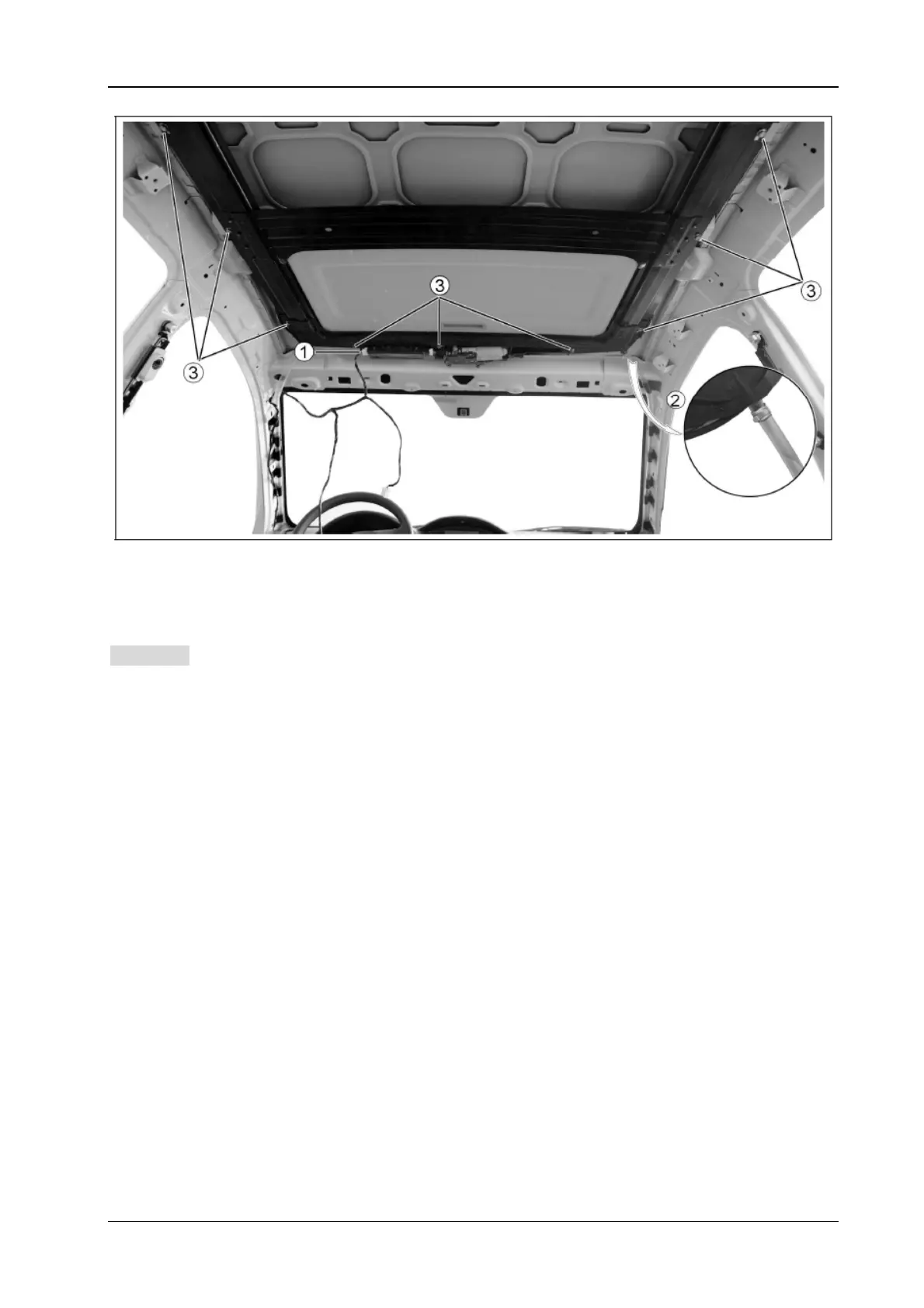

Press down connector snap and disengage connector (1);
Remove plastic hose and metal clamp (2) and remove tool BF1103;
Remove the screw (3) of sunroof mounting support.
Attention: the mounting torque of screw (3) and roof is 8±2 N·m.
Attention Assistance is needed during removing screw (3) to avoid accidental fall of sunroof.
4. Assembly
Assembly is in the reverse order of the disassembly.
