SYNC IN/OUT
SYNC IN:

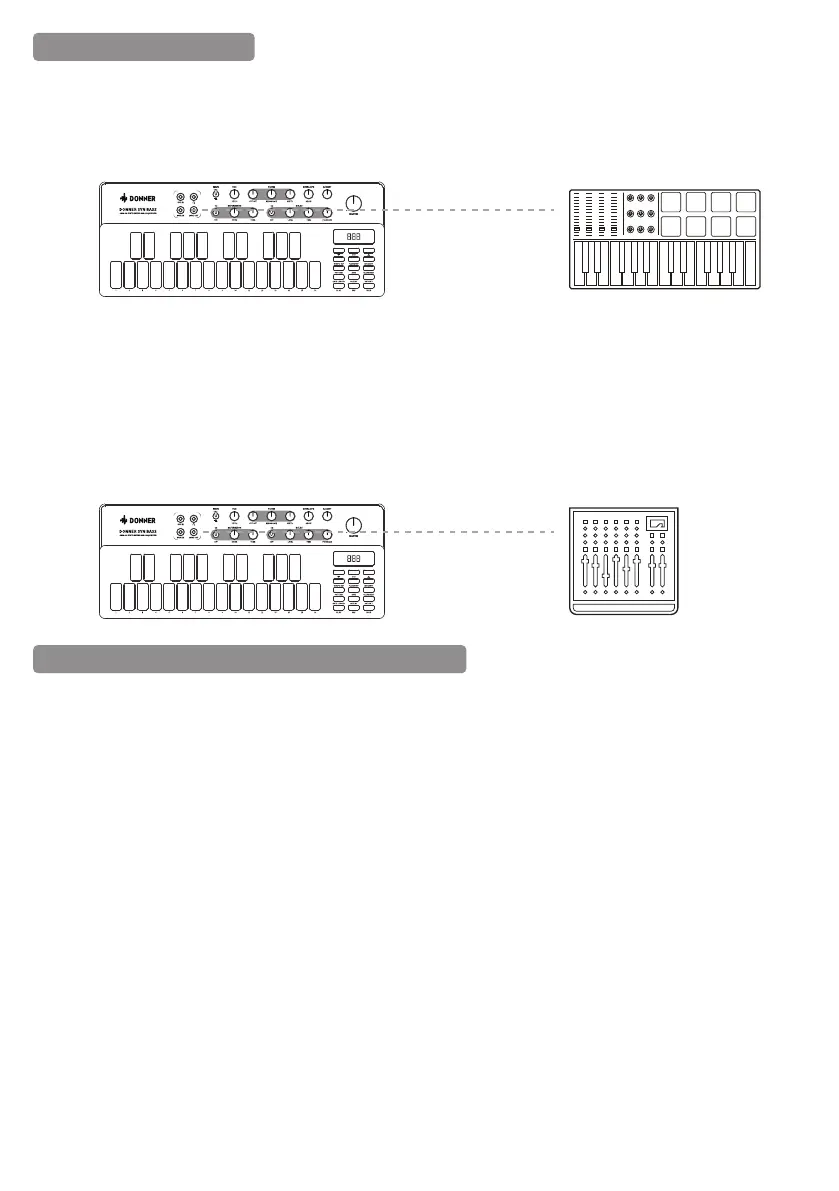

- Connect the SYNC IN connector of the B1 to the SYNC OUT connector of an external device with a
Sync Cable so that the B1 can be synchronized with the pulse signal of the external device.
SYNC IN/OUT RELATED SETTINGS
CLOCK SOURCE
To use SYNC IN, you need to set the Clock Source to TRG or AUTO on the APP or boot command so
that the B1 can synchronize with external devices.
-Note that SYNC OUT is on by default at all times, no additional setting is required.
SYNC POLARITY
- To complete synchronization of the B1 with external devices, the polarity of SYNC IN/OUT may
need to be set as appropriate. This setting can be changed on the APP.
SYNC IN
- Rise - B1 will perform synchronization when the input pulse reaches the wave peak.
- Fall - B1 will perform synchronization when the input pulse reaches the wave trough.
SYNC OUT
- Rise -- B1 will output a pulse at the wave peak.
- Fall -- B1 will output a pulse at the wave trough.
SYNC OUT:
- Connect the SYNC OUT connector of the B1 to the SYNC IN connector of the external device with a
Sync Cable, so that the B1 can output pulses and control the external device.
- Note that you also need to set the Clock Source of the slave device to TRG (or SYNC IN) and check
whether the pulse type settings are match (1PPS/2PPQ/24PPQ/48PPQ, etc.) to ensure proper operation.
