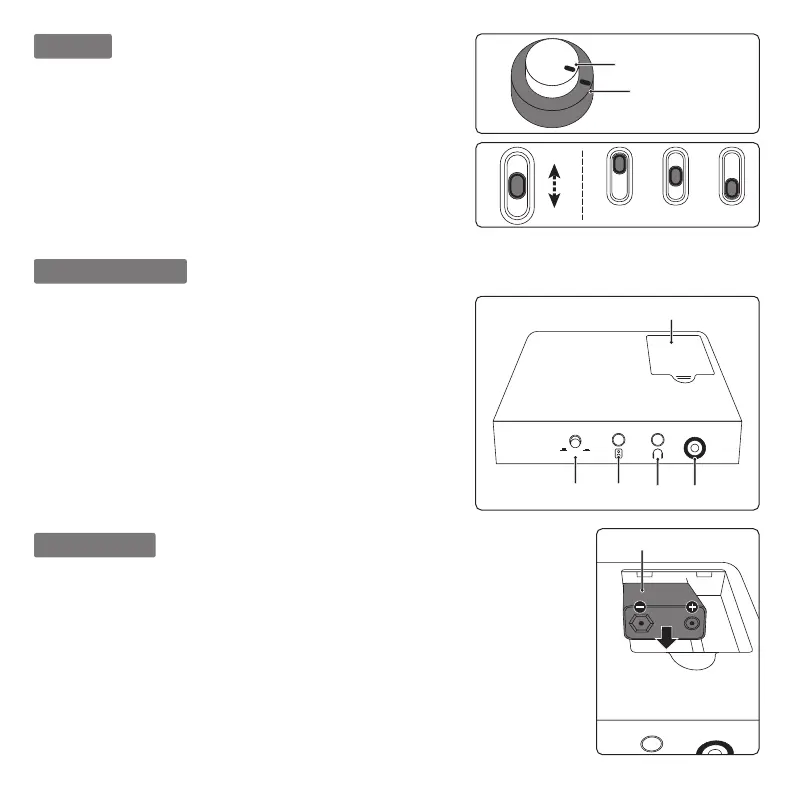

PICKUPS
Volume Potentiometer: Control the total output level of the guitar volume.
Tone Potentiometer: Control the brightness of the guitar tone.
Switch: Select different pickups from top to bottom respectively (3 gears).
① Single-Coil Pickup
② Humbucker Pickup + Single-Coil Pickup
③ Humbucker Pickup
INTERFACE MODULE
① Battery Holder ② 6.35mm（1/4”) Output
③ 3.5mm（1/8”) Output ④ AUX-IN Jack
⑤ Active/Passive Switch Toggle：
1) Since the Active Pickups require a 9V battery to function, the AUX-IN function
and headphone output function only can be used if you install the 9V battery
(AUX-IN signal can be input to 6.35mm output at the same time).
2) Only in Active mode, the AUX-IN signal can be output to the 6.35mm jack.
3) Passive Pickups work without any outside power source, the main purpose of
Passive mode is to enable users to use it without a battery.
4) There is no special treatment in tone in Active mode and Passive mode.
Volume
Tone
HU SH -X
Passi v e/ A ct i v e
⑤④③②
①
POWER SUPPLY
The product comes with a built-in headphone amplifier for guitar practice and needs battery for power.
When battery power becomes low, the volume will be decreased, and noise and distortion will be present.
Please replace the battery with a new alkaline battery as soon as possible.
Note:
● Make sure to use the 9V alkaline battery, do not use a 9V rechargeable battery for powering.
● When using a battery, please use an alkaline battery. Battery life is also dependent upon the type of
battery used, the use of a manganese battery will result in an extremely shorter battery life.
● When connecting the battery, pay special attention to the polarity mark (+ / -). Improper insertion
may damage the circuit or result in fire.
● In order to avoid possible damage to the instrument and unnecessary power consumption due to
battery leakage, please remove the battery from the instrument when it is not used for a long time.
9V Battery
①②③
