Doohan iTango - Dashboard and Combination Switch

Sequence of Operation
Spare parts name
Quantiti
es
Remarks
1
2
3
4
5
Remove front wheel
Hexagon socket head cap screws, M5×10
Trim strip, Front axle.
Hexagon socket head cap screws M10×25
Front aluminum rim
Front tire
2
1
4
1
1
Disassemble parts in order
Attention
To hold up the vehicle by
appropriate bracket to
suspend.
Parts assembling with the
reverse order of
disassembling.

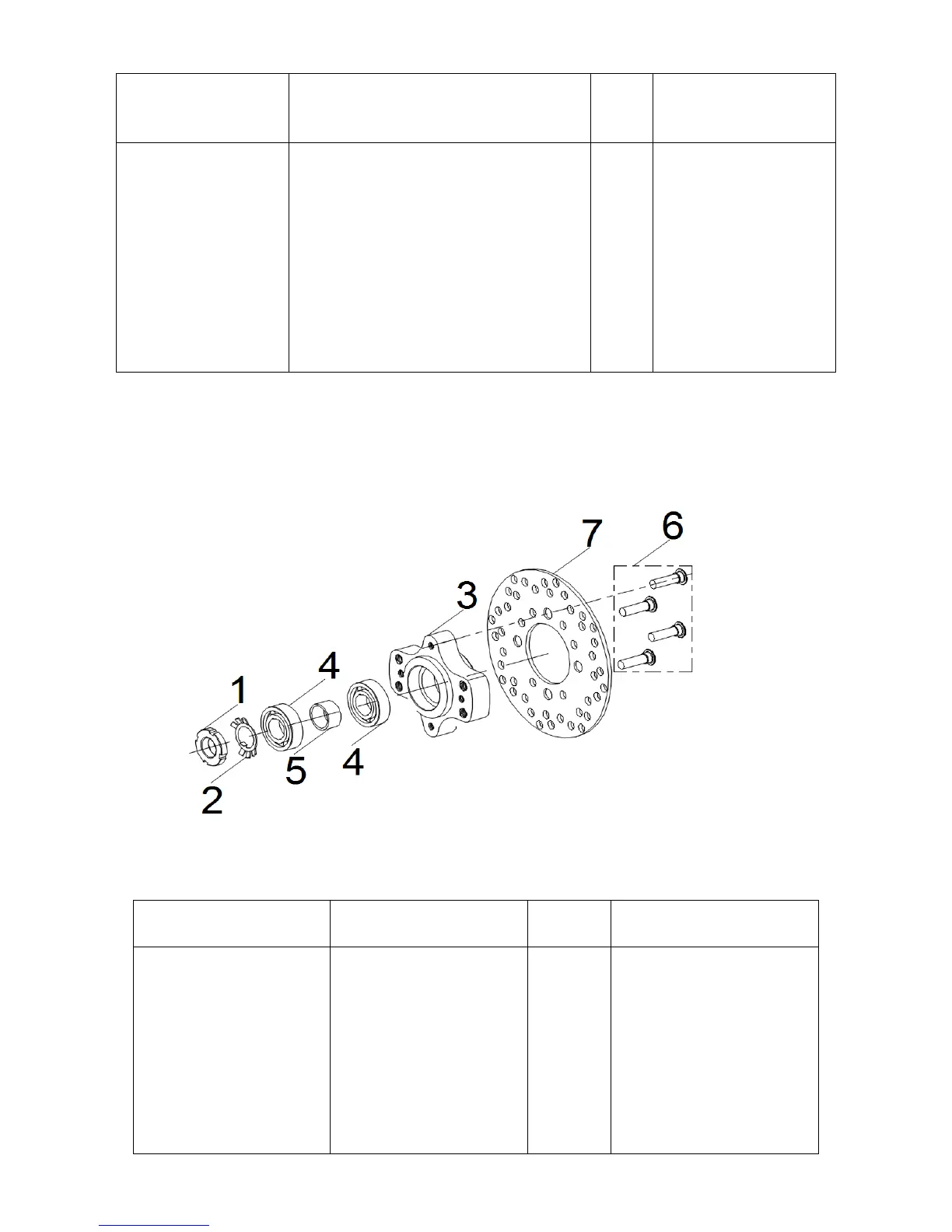

Disc brake & bearing
Sequence of Operation
Spare parts name
Quantities
Remarks
1
2
3
4
5
6
7
Remove disc brake
Round nut
Retaining washer
Disc brake holder
( 6004-2Z )bearing
Bushing
Screw,Disc brake screw
Front disc brake
1
1
1
2
1
4
1
Disassemble parts in order
Attention
To hold up the vehicle by
appropriate bracket to suspend.
Parts assembling with the
reverse order of disassembling.
