Doohan iTango - Chapter 5 Body of Vehicles; Rear Shock Absorber Assy

Sequence
of
Operation
Spare parts name
Quantities
Remarks
1
2
3
Disassemble the front shock
absorber assy
Front shock absorber assy
M10×45 ,Hexagonal flange bolt
M10,Hexagonal flange nylon
self-locking nut
1
2
2
Disassemble parts in order
Parts assembling with the reverse order
of disassembling.
Inspection of shock absorber
⚫ Shock absorber rod
Deformed/damaged--replace shock absorber assy.
⚫ Shock absorber
Leakage--replace shock absorber assy.
⚫ Spring
Wear/damaged--replace.
⚫ Oil seal of dust proof
Wear/damaged--replace
⚫ Bolt
Deformed/damaged/worn out--replace

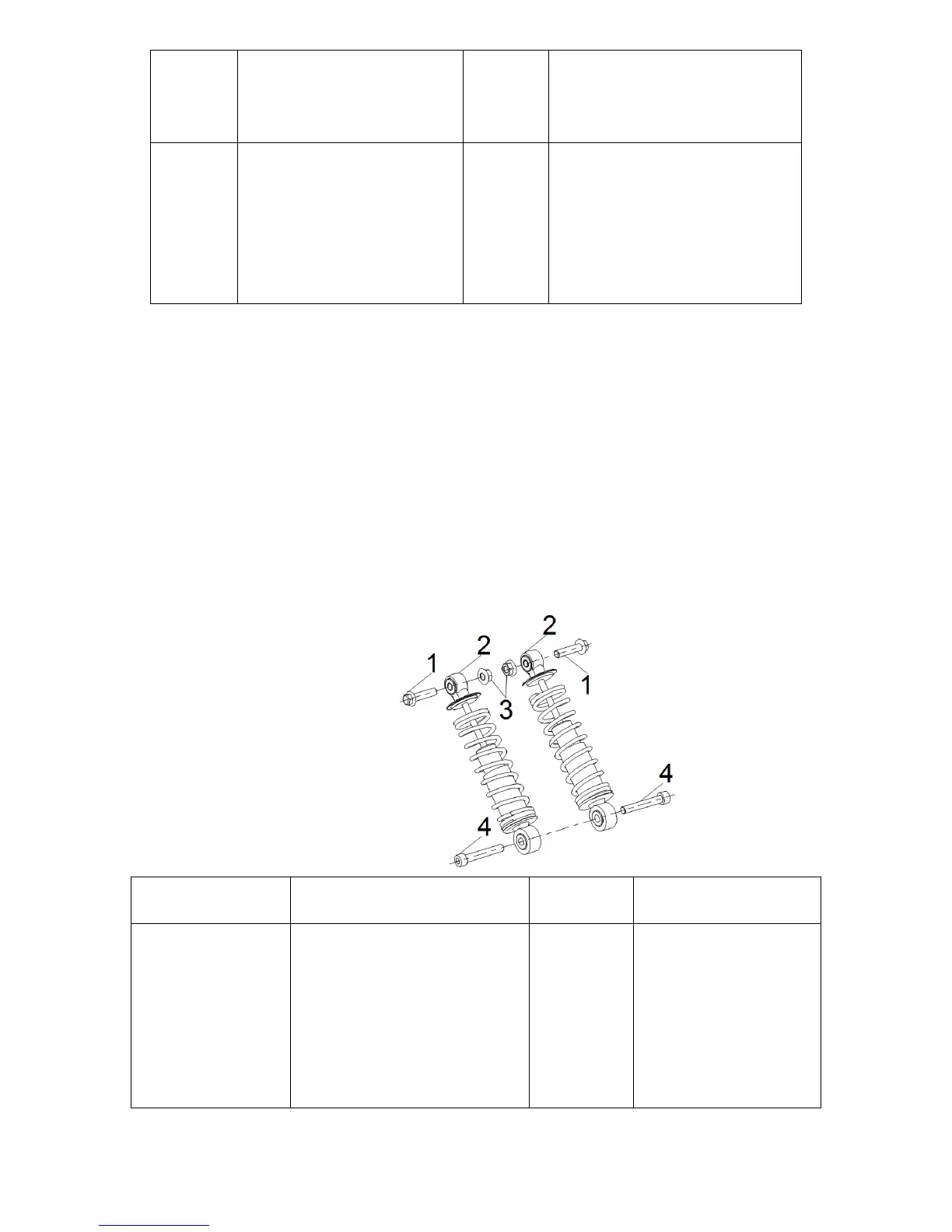

Rear Shock Absorber Assy
Sequence of Operation
Spare parts name
Quantities
Remarks
1
2
3
4
Disassemble rear shock absorber
assy
M10×40 ,Hexagonal flange
Rear shock absorber
M10 Hexagonal flange nylon
self-locking nut
M10×60,Hexagonal round head
screws
2
2
2
2
Disassemble parts in order
Parts assembling with the
reverse order of
disassembling.
