NOTES ON:
SWITCH SELECTION TABLE:
1 NOT CONNECTED
2 OFF NUISANCE DELAY 2 ON NO NUISANCE DELAY
3 OFF ACCESS - CONTROLLED EGRESS 3 ON DELAYED EGRESS
4 OFF LONG DELAY 4 ON SHORT DELAY
3 ON DELAYED EGRESS : IN THIS MODE #4 SWITCH SELECTS SHORT
DELAY OF 15 SECS. OR LONG DELAY OF 30 SECS., AND #2 SWITCH
SELECTS NONE OR A 1 SEC. NUISANCE DELAY.
3 OFF ACCESS CONTROLLED EGRESS : IN THIS MODE #4 SWITCH SELECTS
SHORT RELOCK DELAY OF 30 SEC. OR LONG RELOCK DELAY OF
45 SECS., #2 SWITCH IS DISABLED.
TR GND RES GND TRG1 TRG2 C NC NO
ALARM NO C NC C NO NC AC FAIL
1 2 3 4
AC
SW5 ON - 24V
OFF - 12V
SW5
ON
VR1
DC
+ BAT --- AC AC
AUX ---
FACPLOCK + STRIKE + AUX +COM --
ON

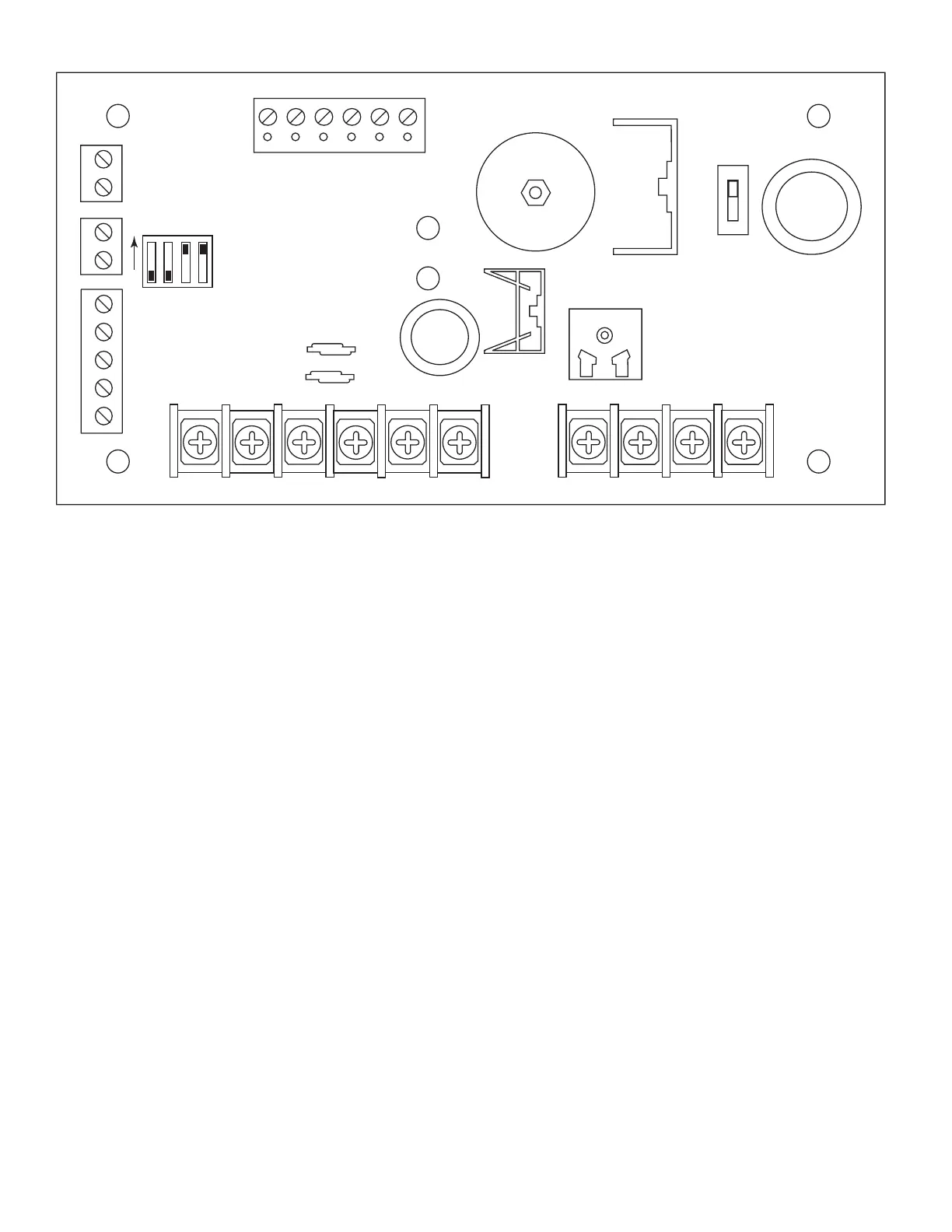

Fig. 2
