60 EXTERNAL VIEWS
7/26E, 7/31E, 7/41

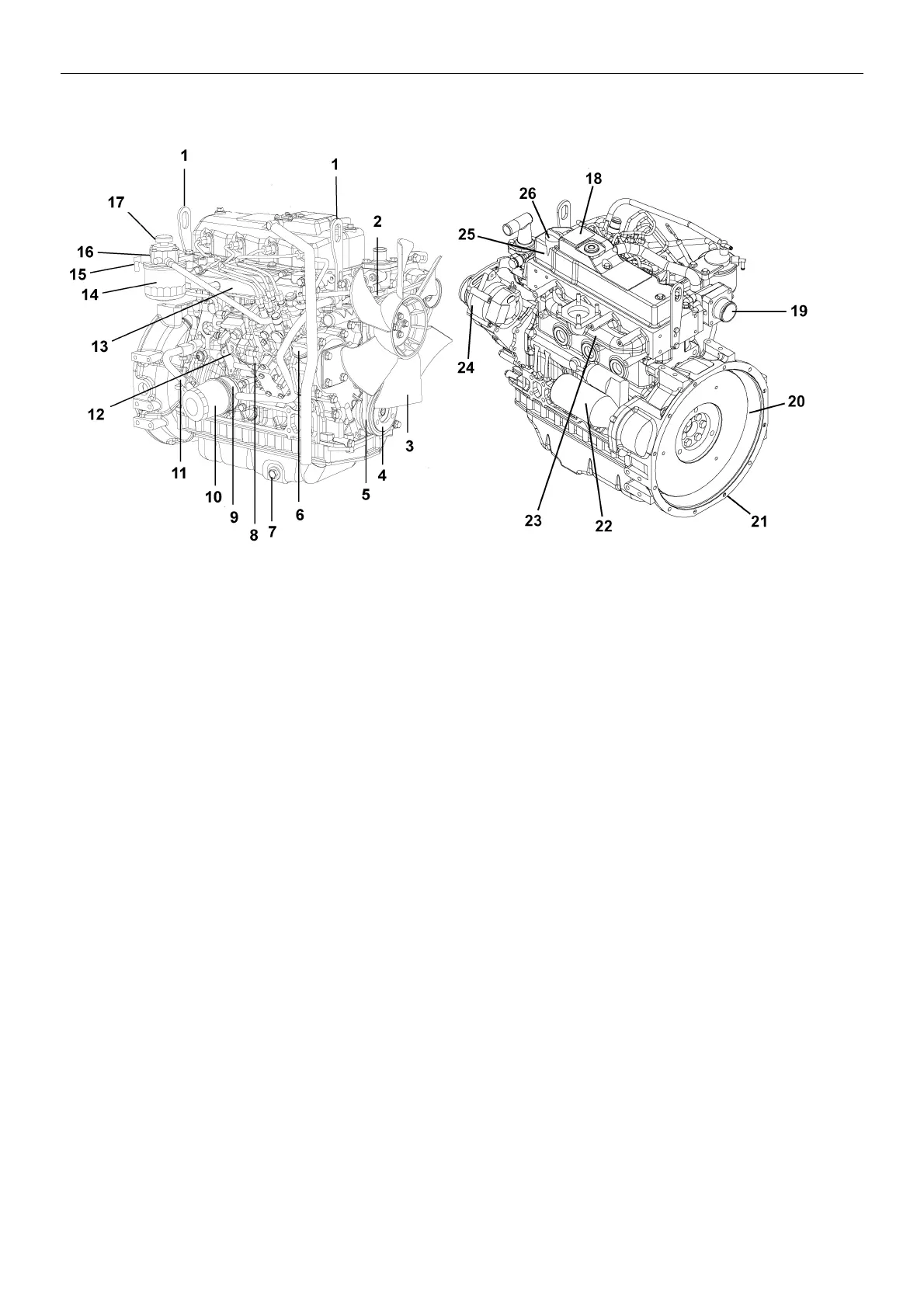

DIESEL ENGINE Engine External View - Model
1. Lifting eye
2. Cooling water pump
3. Cooling fan
4. Crank shaft V-pulley
5. V-belt
6. Filler port (engine oil)
7. Drain plug (engine oil)
8. Fuel injection pump
9. Engine oil cooler (4TNV88)
10. Engine oil filter
11. Dipstick (engine oil)
12. Governor lever
13. Intake manifold
14. Fuel filter
15. Fuel oil inlet
16. Fuel filter mounting with fuel priming pump
17. Fuel priming pump
18. Engine name plate
19. Air intake port
20. Flywheel
21. Flywheel housing
22. Starter motor
23. Exhaust manifold
24. Alternator
25. Rocker arm cover
26. Filler port (engine oil)
