Operation Section
-72-

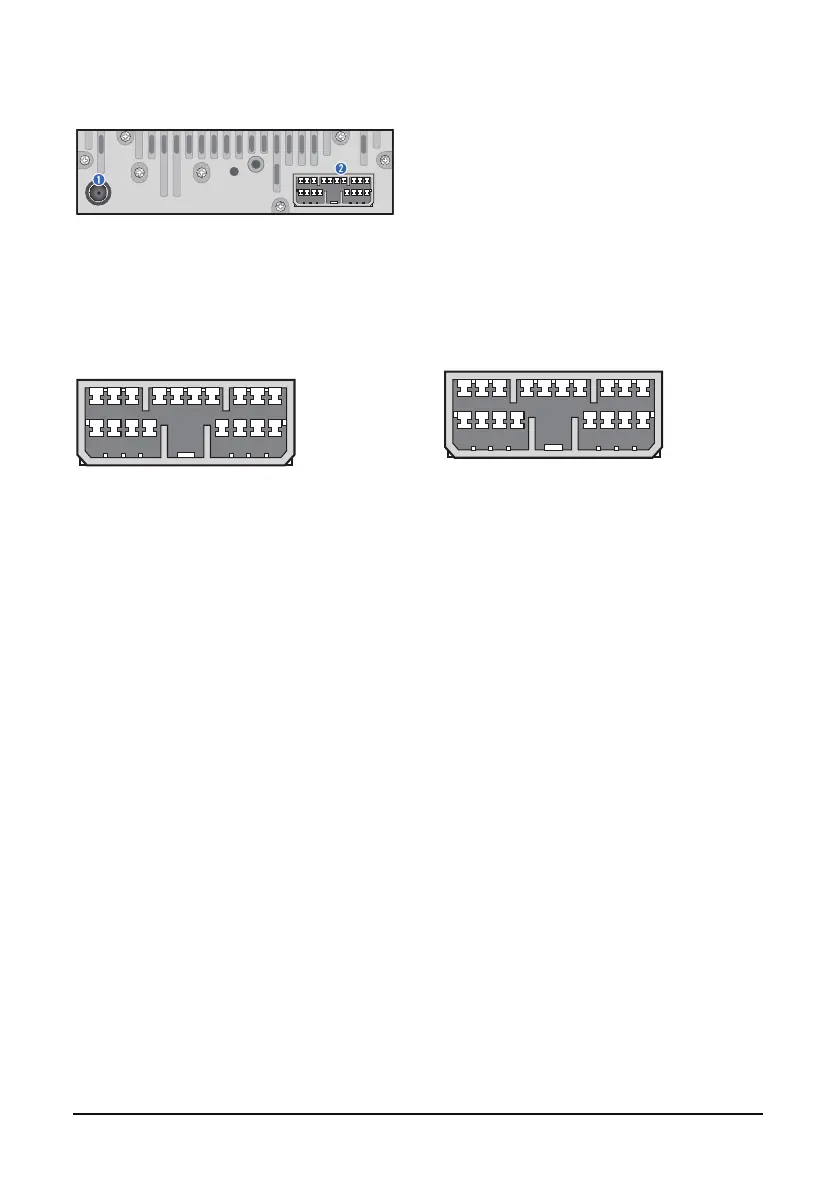

Rear view/Connectors
14
12 15 18911
58
1. Antenna jack: To plug the FM antenna cable.
2. I/0 connector: To plug the 1/0 cable.
<ARA-5080WF: 18 Pin>
14
12 15 18911
58
1. Front R (+)
2. Rear R (+)
3. Illumination (+)
4. ACC (+)
5. Battery (B+)
6. N.C
7. Rear L (+)
8. Front L (+)
9. Front R (-)
10. Rear R (-)
11. N.C / Illumination (-)
12. N.C
13. REM GND
14. GND
15. 5V Output
16. REM Data
17. Rear L (-)
18. Front L (-)
<ARA-5081WF: 18 Pin>
14
12 15 18911
58
1. Tel Mute
2. Rear R (+)
3. Illumination (+)
4. ACC (+)
5. Battery (B+)
6. DMB GND
7. Rear L (+)
8. DMB L-CH
9. H/F GND
10. Rear R (-)
11. DMB Det
12. DMB Mute
13. REM GND
14. GND
15. 5V Output
16. REM Data
17. Rear L (-)
18. DMB R-CH
