5. About the engine
97

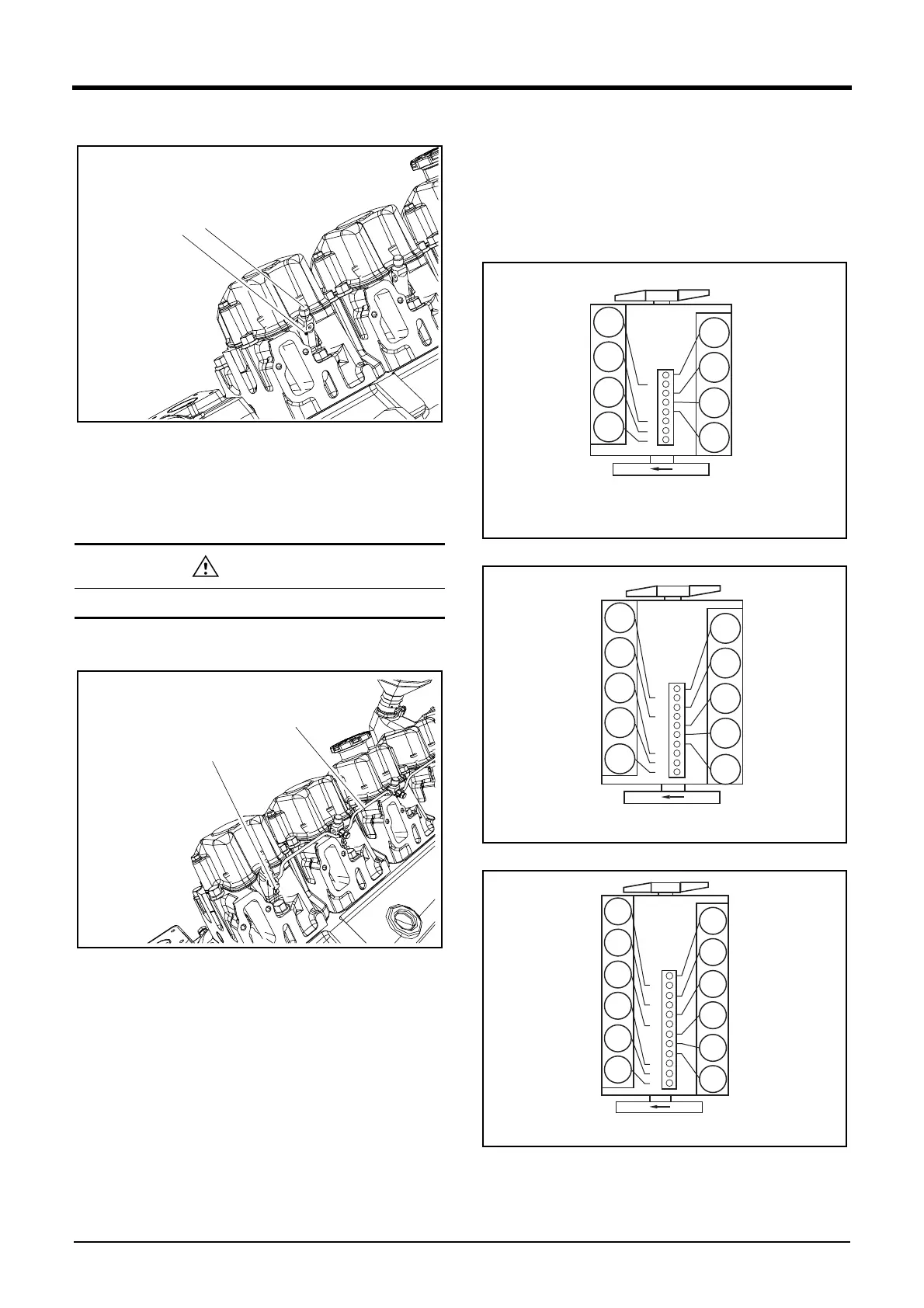

26. Attach the injectors.
DV2213073A
1) Attach the seal ring and then attach the injector(A).
2) Tighten the injector holder fixing nut with the jig for injec-
tion nozzle detach(60.99901-0036).
3) Attach 12 injectors as the same procedure.
27. Attach the fuel return pipe.
DV2213069A
1) Attach the fuel return pipe(B).
2) Attach the double seal ring.
3) Tighten the hollow screw(A) at a tightening torque
0.8kgf·m ± 0.12kgf·m.
4) Attach the other fuel return pipe as the same procedure.
28. Adjust the valve clearance. (Method 1)
1) Rotate the crankshaft so that #1. cylinder may be posi-
tioned at the compression TDC(Top Dead Center).
Note) #1. Cylinder is located at the side where cooling water
pump was installed.
Note) In case of 8/12 cylinder engine, #6. cylinder is posi-
tioned at the valve overlap when #1. cylinder is posi-
tioned at the compression TDC(Top Dead Center).
Note) In case of 10 cylinder engine, #7. cylinder is positioned
at the valve overlap when #1. cylinder is positoned at
the compression TDC(Top Dead center).
DV2213042A
DV2213213A
DV2213043A
2) Loosen the lock nut of the #1. cylinder rocker arm.
Be careful not to damage the fuel pipes.
5
6
7
8
1
2
3
4
8
7
6
5
4
3
2
1
8 Cylinder engine
6
7
8
9
10
1
2
3
4
5
10
9
8
7
6
5
4
3
2
1
10 Cylinder engine
7
8
9
10
11
12
1
2
3
4
5
6
12
11
10
9
8
7
6
5
4
3
2
1
12 Cylinder engine
To Next Page
