5. About the engine
104
9) Tighten 1 fixing bolt(A) and 2 fixing nuts(B).

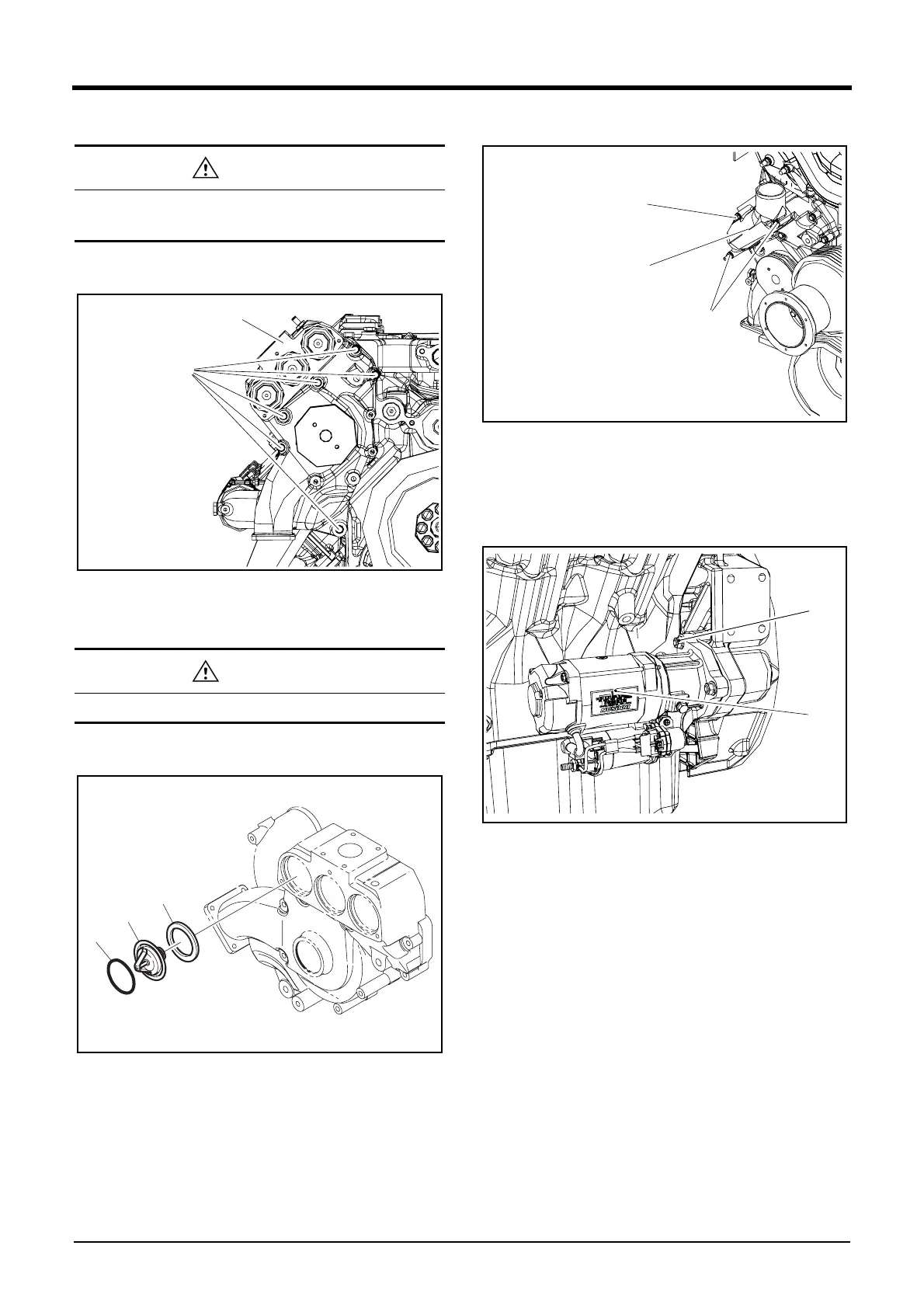

51. Attach the water pump.
DV2213097A
1) Attach the water pump assembly(B).
2) Tighten 16 fixing bolts(A).
52. Attach the thermostat.
DV2213172A
1) Attach the gasket(C).
2) Attach the thermostat(A).
3) Attach the o-ring(B).
4) Attach 3 thermostats as the same procedure.
53. Attach the cooling water pipe.
DV2213078A
1) Attach the cooling water pipe(C).
2) Tighten the fixing bolts(A) and nuts(B) at a tightening
torque 2.2kgf·m ± 0.33kgf·m.
54. Attach the starter.
DV2213053A
1) Attach the starter(B).
2) Tighten 3 fixing bolts(A) at a tightening torque 4.4kgf·m ±
1.2kgf·m.
Make sure that the cooling fan pulley can be rotated
after attaching.
Be careful not to mix the fixing bolts each other.
A
B
C
