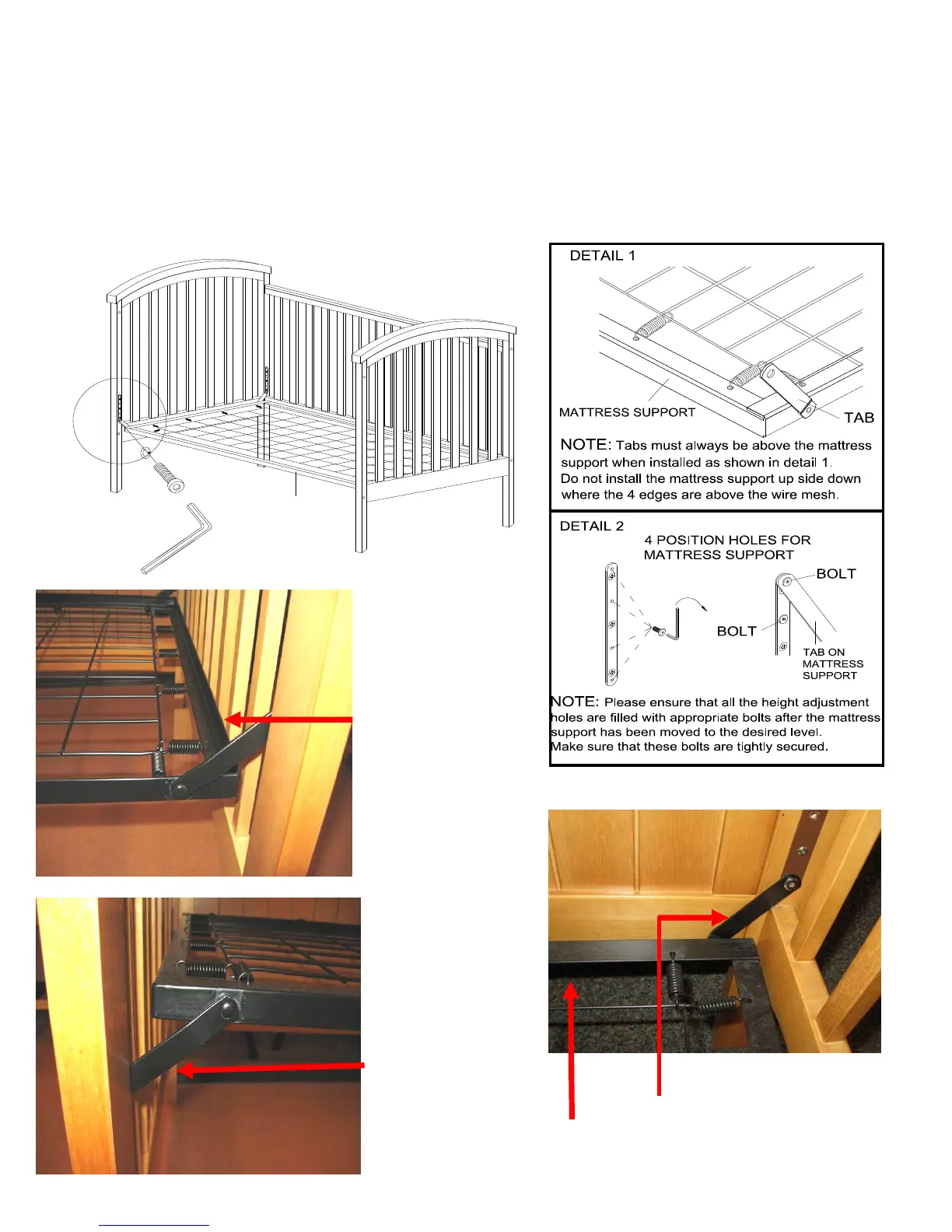

STEP 2:
Attach mattress support (D) to the 4 corner posts with bolts (2) and spring washers (7). Use Allen Key
(3) to tighten bolts. Refer to details 1 and 2 for direction on how to properly attach the mattress
support.
2-IN-1CRIB
DA4162ND
INCORRECT-
Tabs on corners
of mattress
support should
point up.
INCORRECT-
Raised edge
should face
down -this photo
shows mattress
support is upside
down.
CORRECT
*Tabs to point UP.
* Flat surface of mattress support to face
up - mattress must sit on flat surface.
7
A
A
B
D
3
2
-5-
