Dorel DA4162ND - Page 7

2-IN-1CRIB
DA4162ND

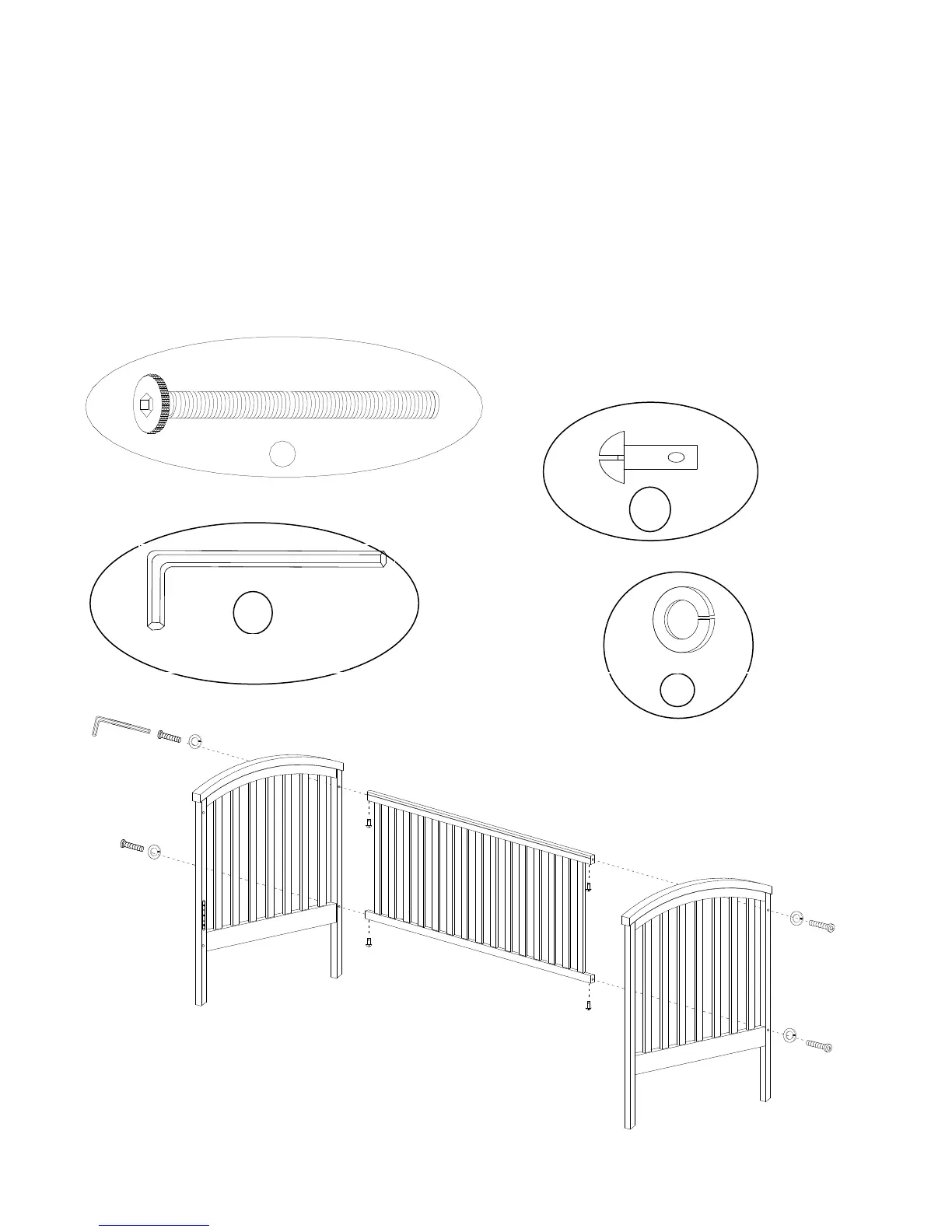

STEP 1
Attach left and right side frames (A) to stationary side (B) with hex socket
head bolts (1), spring washers (7) and barrel nut (4) . Use Allen key (3) to
tighten hex socket head bolts (1).
4
3
7
7
7
7
7
1
A
A
1
1
3
1
1
4
4
4
4
B
HARDWARE LIST
ALLEN KEY
1 PC
GATE PIN
2 PCS
BOLT
2 PCS
HEX SOCKET HEAD BOLT
16 PCS
RUBBER STOPPER
2 PCS
HEX SOCKET HEAD BOLT
6 PCS
6 mm x 3/4"
1/4" x 2-1/2"
1
4
5
63
2
3/16" x 3/8"
BARREL NUT
4 PCS
7
8
BARREL NUT
2 PCS
HARDWARE LIST
ALLEN KEY
1 PC
GATE PIN
2 PCS
BOLT
2 PCS
HEX SOCKET HEAD BOLT
16 PCS
RUBBER STOPPER
2 PCS
HEX SOCKET HEAD BOLT
6 PCS
6 mm x 3/4"
1/4" x 2-1/2"
1
4
5
63
2
3/16" x 3/8"
BARREL NUT
4 PCS
7
8
BARREL NUT
2 PCS
-4-
