Dorel DA6580 - Step-by-Step Assembly Instructions; Headboard Assembly Steps

LOFT BED WITH DESK
DA6580

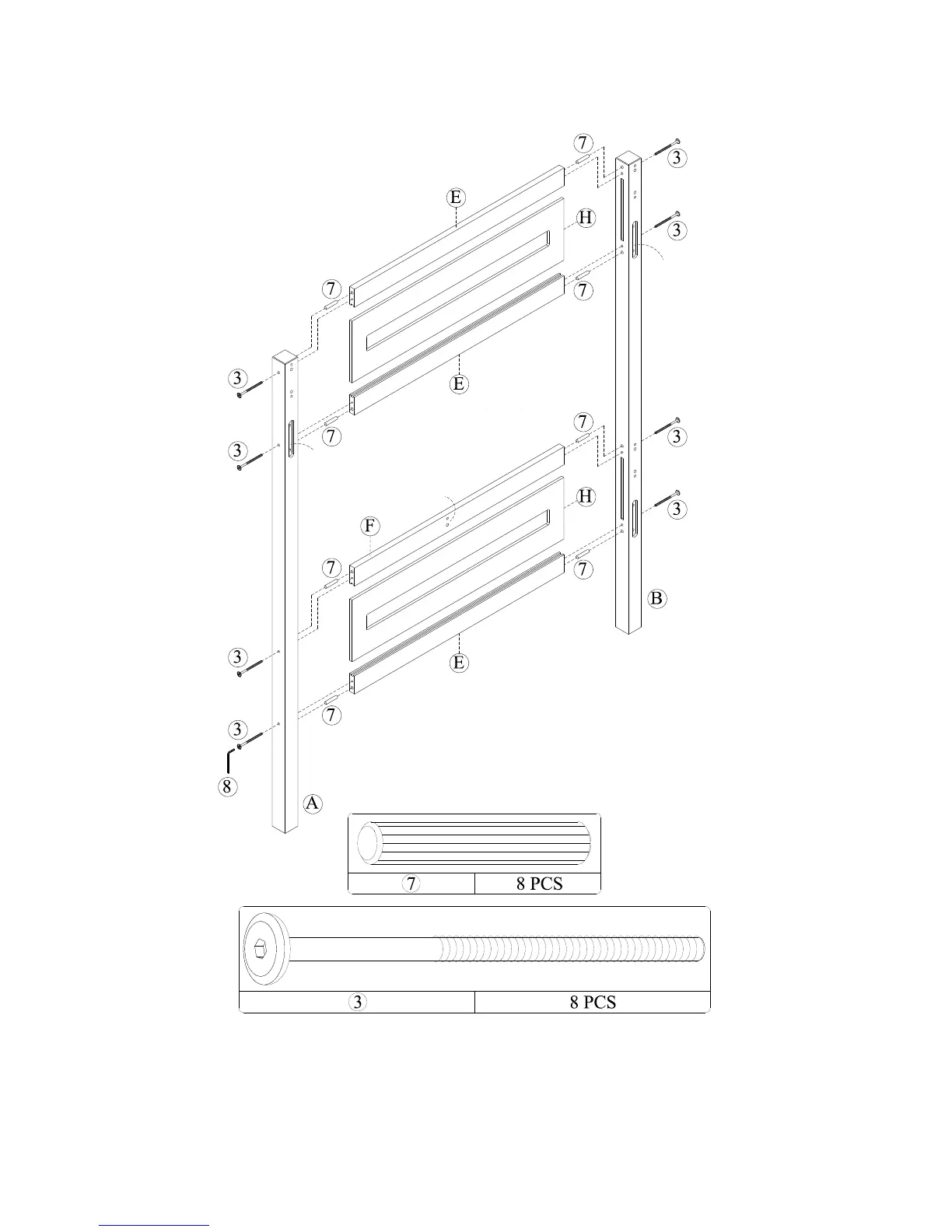

STEP 1
Insert wood dowels (7) into the ends of headboard cross (E) and headboard center cross (F).
Insert headboard panel (H) into the grooves of the headboard cross (E) and headboard center cross
(F).
Attach the assembled headboard (EHE) and (FHE) to left front post (A) and left back post (B) with
wood joint connectors (3) as shown. Use Allen key (8) to tighten the wood joint connectors (3).
One of the headboard crosses (E) has a warning label on it. Do not use it in this step.
The 2 holes on cross
(F) face the same
direction as the grooves
on posts ( A & B).
groove
groove
2 holes
