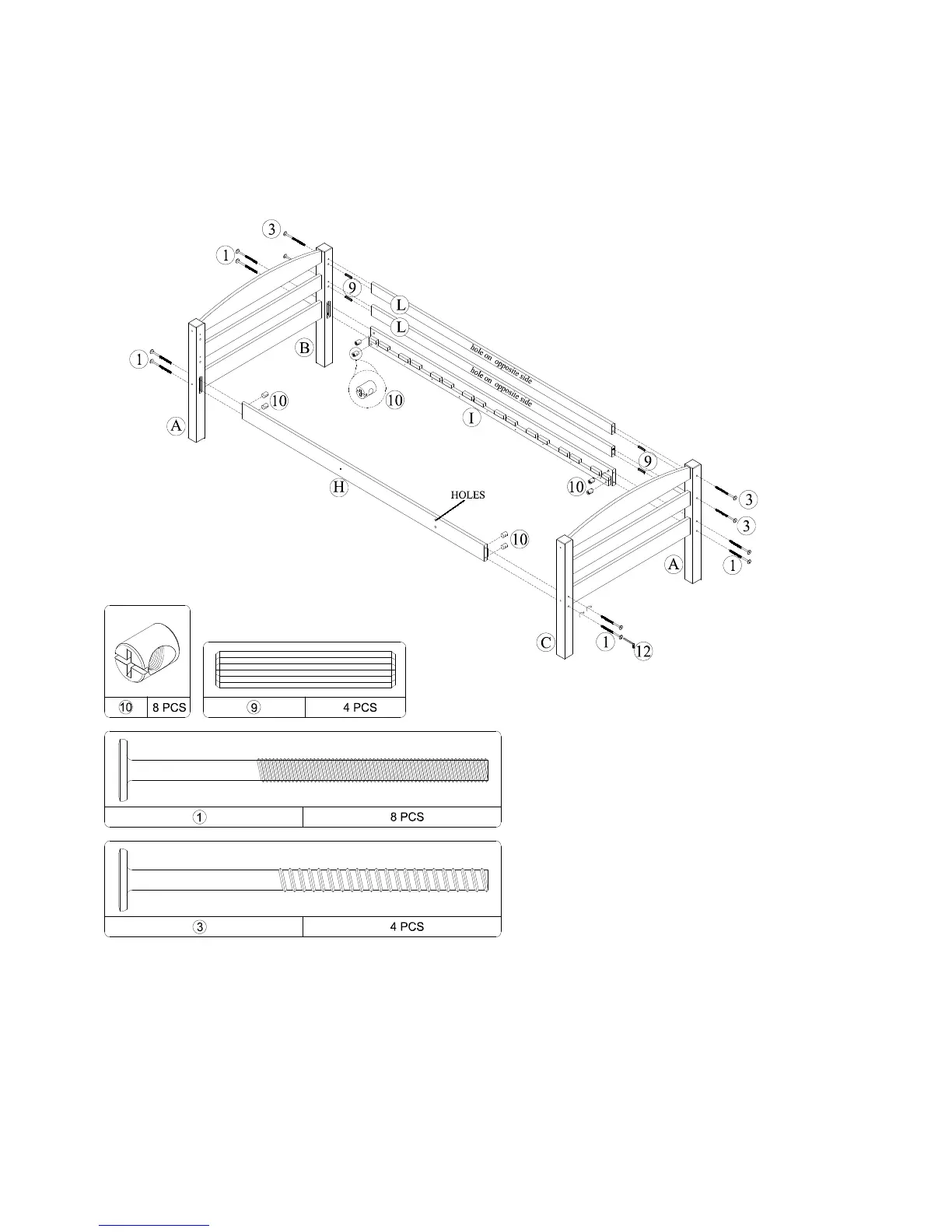

STEP 5
Insert wood dowels (9) into each end of the long guardrails (L).
Insert barrel nuts (10) into top side rails (H & I).
Attach two long guardrails (L) and two top side rails (H and I) to top posts (A and B) & (A and C) as
shown using joint connectors (1) & (3).
Use Allen key (12) to tighten all joint connectors.
This is the upper bunk.
TWIN/FULL BUNK BED
DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
