Dorel DA6940E - Page 9

STEP 2
TWIN/FULL BUNK BED

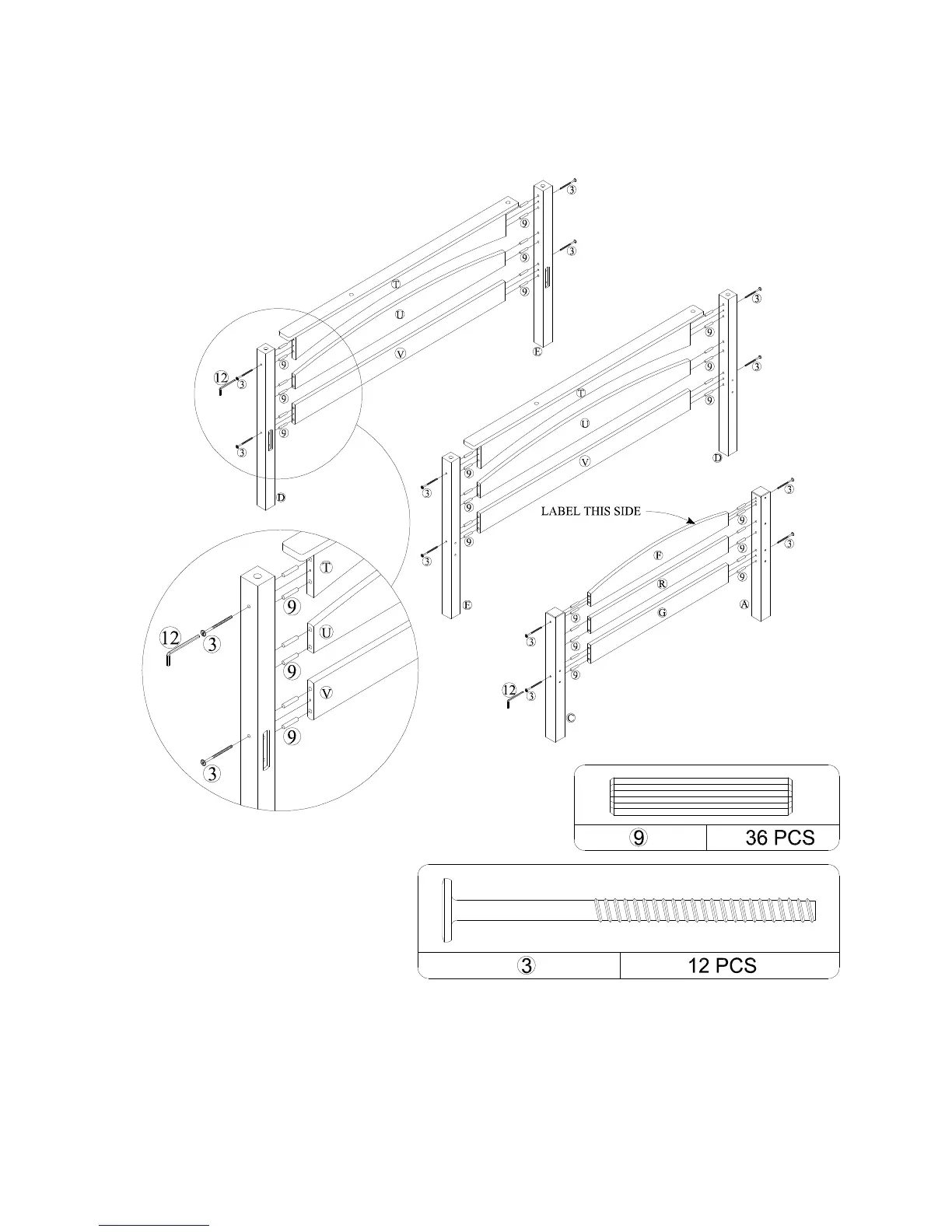

Repeat the previous step to assemble the remaining three sets of headboards. Be sure to pair the
bottom posts (D) and (E) for one pair; (E) and (D) for another; and the top posts (C) and (A) for the
last pair.
NOTE: Use headboard top cross (F) with the label attached to it between top posts (A) and (C). See
illustration for label orientation.
DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
