Dorel DA6940E - Page 10

TWIN/FULL BUNK BED

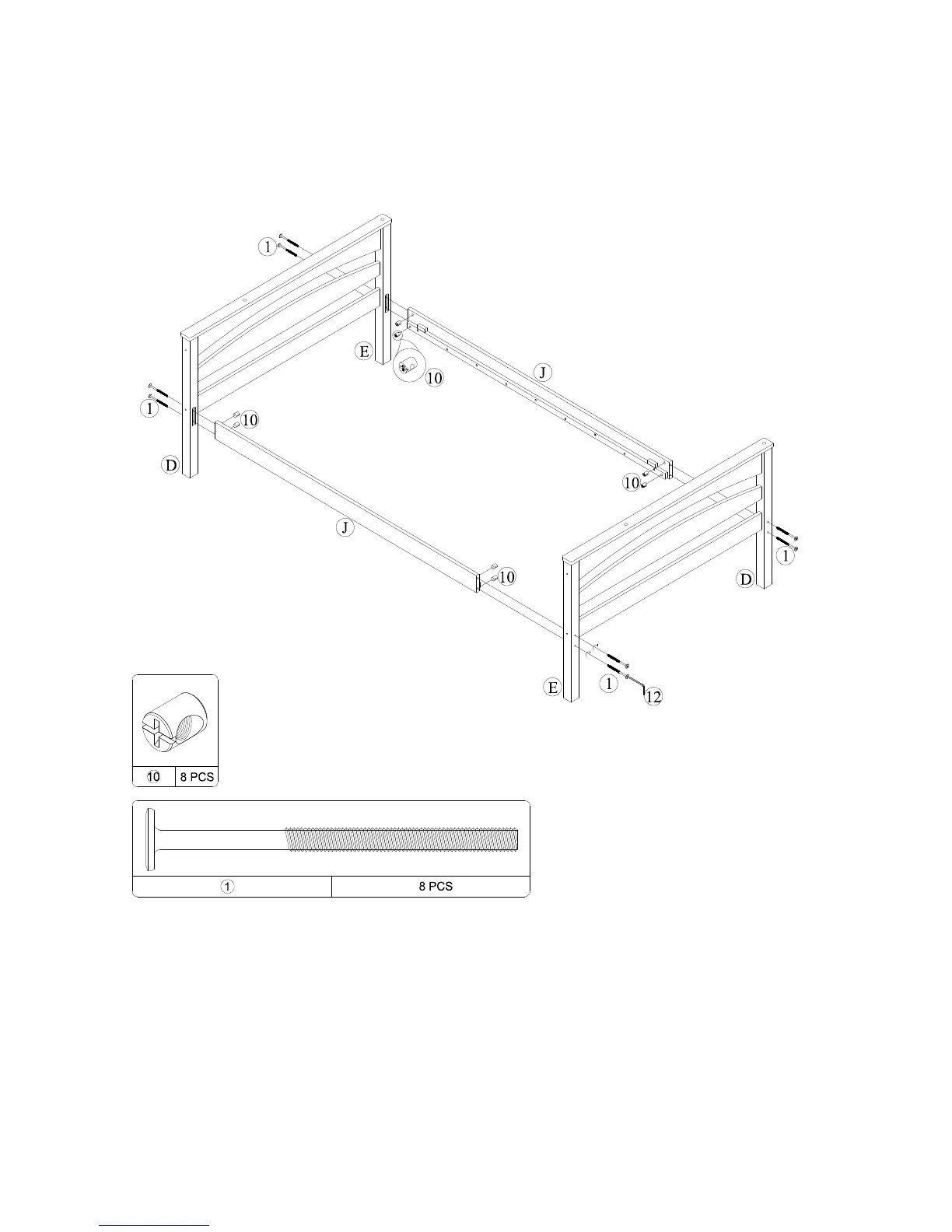

Insert barrel nuts (10 ) into bottom side rails (J) as shown.
Attach the two headboards with bottom posts (D and E) to bottom side rails (J) using joint
connectors (1) and Allen key (12).
Note: This is the lower bunk.
STEP 3
DA6940E (ESPRESSO) / DA6940W (WHITE)/ DA6940BL(BLUE)
