1. Introduction
MIDI to CV box (MCV-10) is a product designed by DOREMiDi for converting MIDI signals into
analog voltages. The MCV-10 is used for MIDI control of analog synthesizers, Eurorack modules, and
more. The MCV-10 has USB MIDI and MIDI IN interfaces, which can be connected to a computer or
MIDI devices. MCV-10 supports V/Oct, Hz/V, 1.2V/Oct, S-Trig, V-Trig, and also supports various MIDI
CC controllers and auxiliary outputs for parameters.
2. Appearance

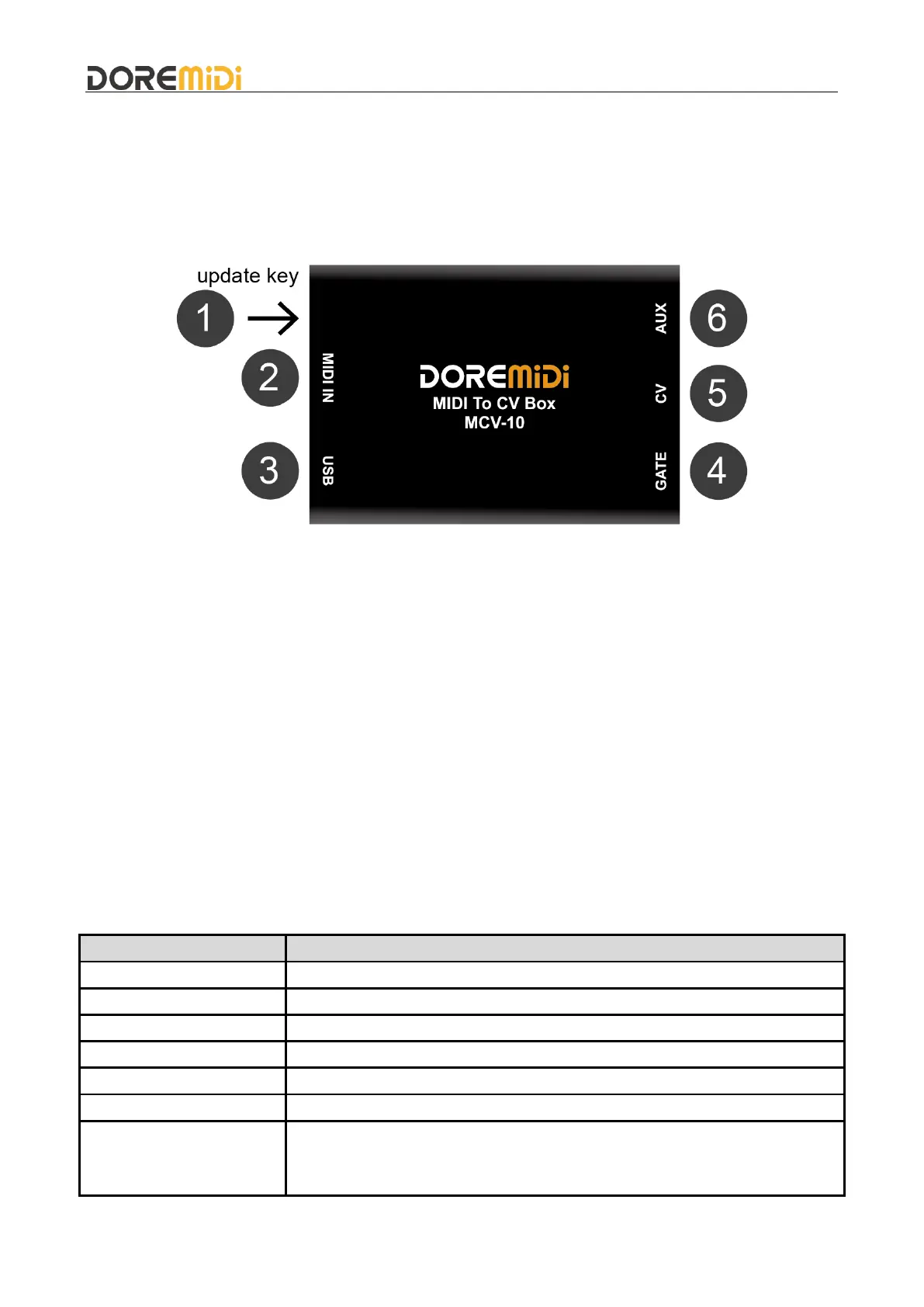

❶ Update Key: Press and hold the button, then connect the computer via USB, the product will enter the
update mode, and the indicator light will flash.
Press and hold for 5 seconds to restore factory settings, and the indicator light flashes 5 times.
❷ MIDI IN: MIDI-TRS 3.5mm interface, connect 3.5 to MIDI five-pin cable, input MIDI messages.
❸ USB: USB-C interface, with USB MIDI function, used to connect to a computer and supply power to
the product at the same time.
❹ GATE: Mono TRS 3.5mm interface, used to connect the GATE port of the synthesizer and output the
gate control signal.
❺ CV: Mono TRS 3.5mm interface, used to connect to the CV port of the synthesizer, and output the
gate analog voltage.
❻ AUX: Mono TRS 3.5mm interface, used to connect to the AUX port of the synthesizer, and output
analog voltage.
3. Product Parameters
3.1. Product Parameter Table
Name
Description
Model
MCV-10
Size (L x W x H)
63*44*24mm
Weight
50g
Consumption
62mA@5V.
USB Compatibility
Standard USB MIDI device, compliant with USB class, plug and play.
Power Supply
Powered by USB, 5VDC.
USB indicator
Always on after power on.
Flashes 5 times during factory reset.
Blinks when entering upgrade mode.
