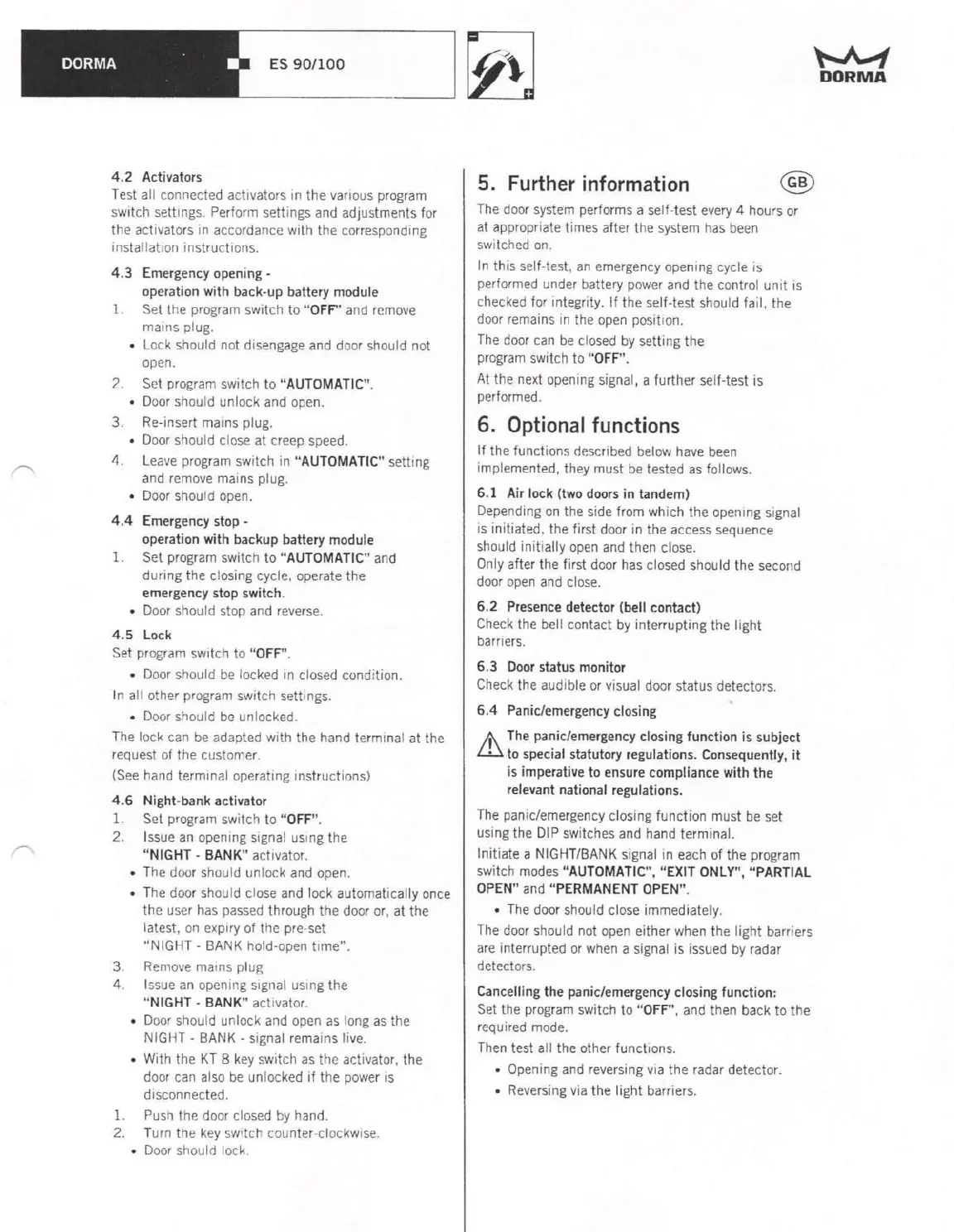

DORMA
4.2 Activators
Test all connected activators in the various program
switch settings. Perform settings and adjustments for
the activators in accordance with the corresponding
installation instructions.
4.3 Emergency opening -
operation
with
back-up battery module
1. Set the program switch to "OFF" and remove
mains plug.
Lock should not disengage and door should not
open.
?
Set program switch to "AUTOMATIC".
Door should unlock and open.
3. Re-insert mains plug.
Door should close at creep speed.
4. Leave program switch in "AUTOMATIC" setting
and remove mains plug.
Door should open.
4.4 Emergency stop-
operation
with
backup battery module
1. Set program switch to "AUTOMATIC" and
during the closing cycle. operate the
emergency stop switch.
Door should stop and reverse.
4.5 Lock
Set program SWitch to "OFF".
• Door should be locked in closed condition.
In all other program switch settings.
• Door should be unlocked.
The lock can be adapted with the hand terminal at the
request of the customer.
(See hand terminal operating instructions)
4.6 Night-bank activator
1. Set program switch to "OFF".
2. Issue an opening signal uSing the
"NIGHT - BANK" activator.
The door should unlock and open.
The door should close and lock automatically once
the user has passed through the door or, at the
latest, on expiry of the pre. set
"NIGHT - BANK hold.open t,me",
3. Remove mains plug
4. Issue an opening SIgnal using the
"NIGHT. BANK" activator.
Door should unlock and open as long as the
NIGHT. BANK - signal remains live.
With the KT 8 key switch as the activator, the
door can also be unlocked if the power is
disconnected.
1. Push the door closed by hand.
2. Turn the key switch counter-clockwise.
Door should lock.
5. Further information
The door system performs a self-test every 4 hours or
at appropriate times after the system has been
switched on.
In this self-test, an emergency opening cycle is
performed under battery power and the control unit is
checked for integrity. If the self-test should fail, the
door remains in the open position.
The door can be closed by setting the
program switch to "OFF".
At the next opening signal, a further self-test is
performed.
6. Optional functions
If the functions described below have been
implemented, they must be tested as follows.
6.1 Air lock (two doors in tandem)
Depending on the side from which the opening signal
is initiated. the first door in the access sequence
should initially open and then close.
Only after the first door has closed should the second
door open and close.
6.2 Presence detector (bell contact)
Check the bell contact by interrupting the light
barriers.
6.3 Door status monitor
Check the audible or visual door status detectors.
6.4 Panic/emergency closing
It' The panic/emergency closing function is subject
ill
to special statutory regulations. Consequently, it
is imperative to ensure compliance with the
relevant national regulations.
The panic/emergency closing function must be set
using the DIP switches and hand terminal.
Initiate a NIGHT/BANK signal in each of the program
switch modes "AUTOMATIC", "EXIT ONLY", "PARTIAL
OPEN" and "PERMANENT OPEN".
• The door should close immediately.
The door should not open either when the light barriers
are interrupted or when a signal is issued
by
radar
detectors.
Cancelling the panic/emergency closing function:
Set the program switch to
uOFF",
and then back to the
required mode.
Then test all the other functions.
Opening and reversing via the radar detector.
• Reversing via the light barriers.
