Dormakaba Quantum II RFID ECU - Components; Quantum II RFID ECU Exploded View

2 Quantum II RFID ECU PK3724_T 05-19
1 Components

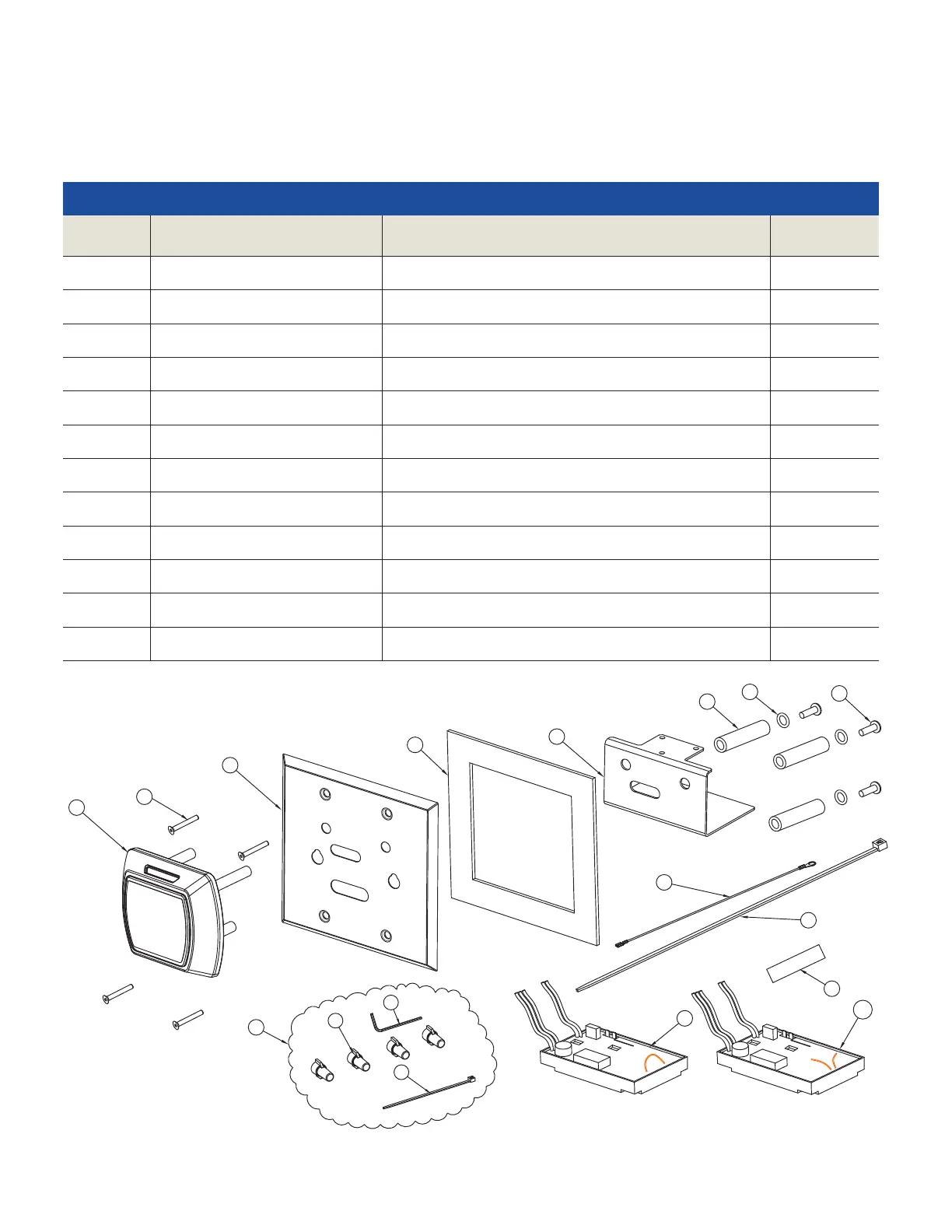

Quantum II RFID ECU Exploded View
2
3
4
7
6
8
9
11
1
12
13
10B
10C
10D
10
5
5A
Figure 1
Quantum II RFID ECU
ITEM
NO.
PART NUMBER DESCRIPTION QT Y.
1 A21710-COLOR Quantum II RFID Reader Assembly 1
2 A32760-COLOR Quantum II RCU Faceplate 1
3 94640 RCU Gasket 1
4 A22770 Mounting Bracket 1
5 A28732-RMO PCB Assembly / RFID MT2 1
6 A37010 Sleeve, Quantum II RCU 3
7 A37000 Washer, Flat, #8 Screw 1
8 73400-014 Screw, #8-32 /1/2” PH, Philips 3
9 A27490 Tie Wrap, 14”, RCU 1
10 55250 Nut, Wire 4
11 A28360 Wire Harness RCU PCB 1
12 50170-COLOR Screw, #6-32 x 1” FH 4
