Quantum II RFID ECU PK3724_T 05-19 5
3.38
2.30
1.20
2.05
.54
1.71
2.37
ELEVATOR PANEL
3X Ø.281
.20
1.75
.87
1.50
.50
.30
TOP
C
L
Ø.88
4 Installation Steps
Flush Mount Reader

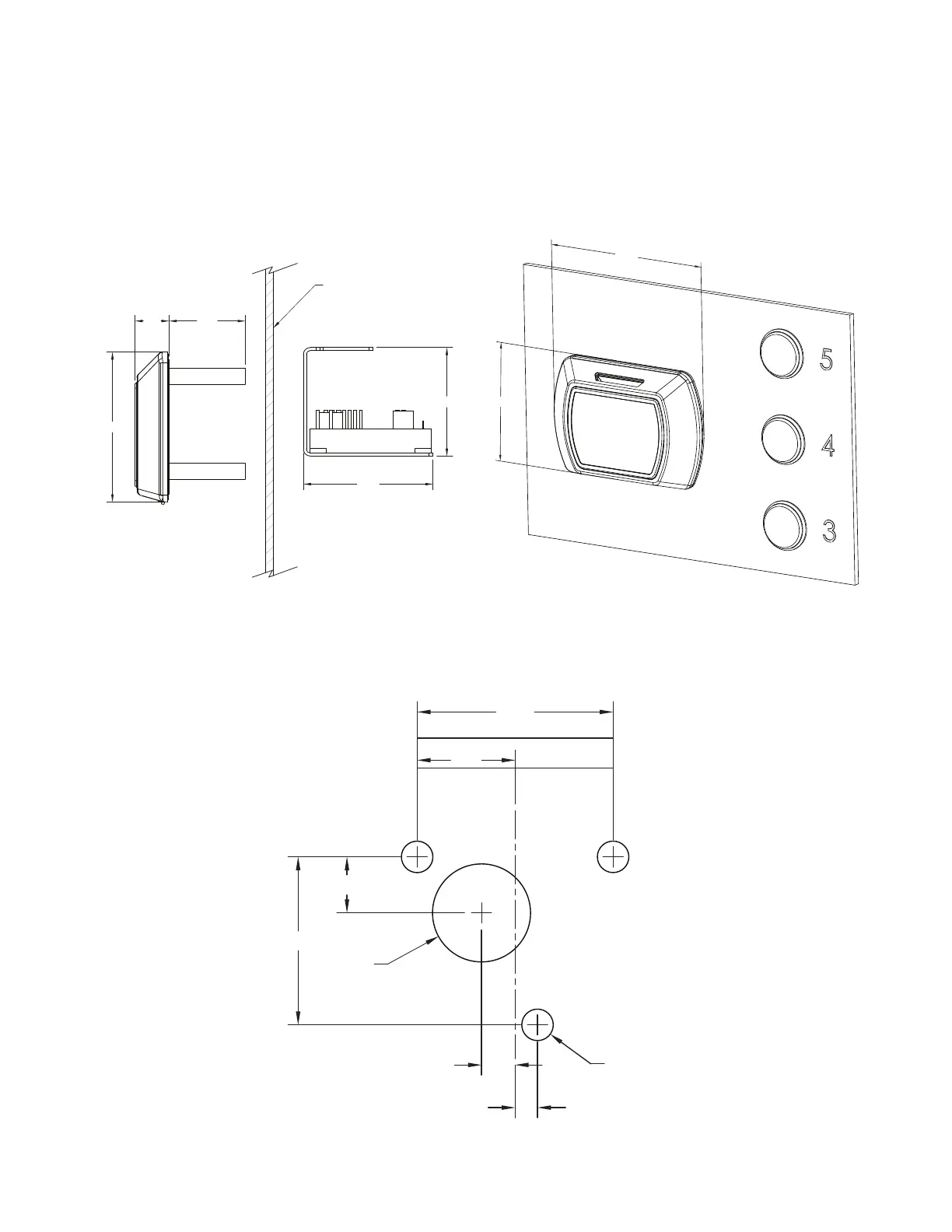

Figure 4
Flush Mount Reader Installation Dimensions
Figure 5
Flush Mount Reader Installation Template
