1. LC display
2. Exposure OK indicator
3. Mode setting indicator TTL/manual
4. Beeper indicator
5. Power level indicator in manual mode
6. Flash range distance bar
7. OFF / Automatic power shut o
8. Zoom position indicator
9. Film Speed indicator
10. F/Stop (aperture indicator)
Nikon / Sony-Minolta / Olympus / Panasonic Models
Pentax / Samsung Model
Canon Model
Reecting Plate
Diuser Plate
Flash Head
Battery
Compartment
Slave Sensor
AF- Red Light
Lock Ring
Hot shoe
Digital Power Zoom Flash
DÖRR DAF 42
Instruction Manual

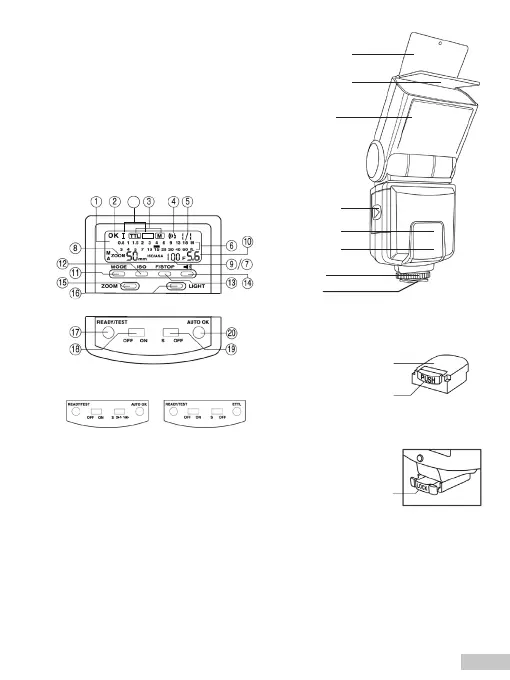

Nomenclature:
Sony/ Minolta Model
Hot Shoe
Release
Button
Olympus Model
Hot Shoe
11. MODE button to select ash mode
12. ISO button to select lm speed
13. F/Stop button to set aperture
14. Beeper ON/OFF button
15. ZOOM selector button automatic/manual
16. LIGHT button to illuminate LCD
17. Flash READY indicator and TEST button
18. Power OFF/ON switch
19. Slave mode switch
20. AUTO OK (exposure OK indicator)
21. Mode Indicator (Nikon only)
