-3-
EVC10B R20140821

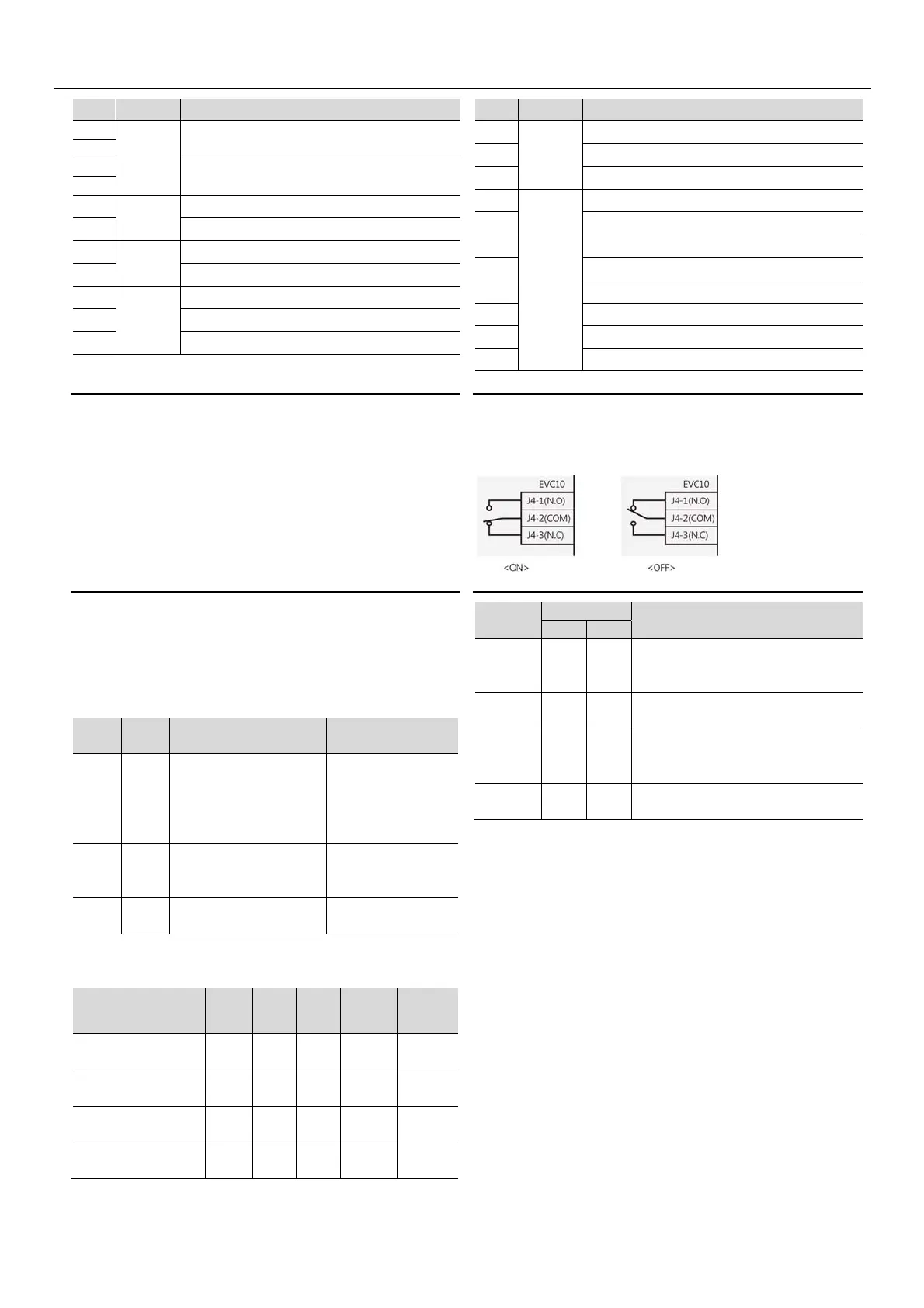

: Details of terminal
No. Definition Description
J1.1
AC / DC
24V
+24V Power input AC24V or DC24V+
J1.2
J1.3
-24V Power input AC24V or DC24V-
J1.4
J2.1
RUN
SIG Run / Stop signal input
J2.2 GND Signal common
J3.1
RS485
TRX+ RS485 comm. TRX+(A)
J3.2 TRX- RS485 comm. TRX-(B)
J4.1
AUX-RLY
N.O Auxiliary relay - Normal Open contact
J4.2 COM Auxiliary relay - common
J4.2 N.C Auxiliary relay - Normal Close contact
No. Definition Description
J5.1
P-SENS
+5V Power output for pressure sensor(+5V)
J5.2 S1 Pressure sensor signal input
J5.3 GND Pressure sensor power signal common
J6.1
T-SENS
S2 Temperature sensor
J6.2 GND Temperature sensor common
J7.1
EEV
MOTOR
A EEV phase 1(A)
J7.2 B EEV phase 1(B)
J7.3 A# EEV phase 2(A#)
J7.4 B# EEV phase 2(B#)
J7.5 COM EEV common
J7.6 COM EEV common
1) Operation start and stop instruction
If SIG signal is short circuited (on), it will start to run. In case of opening (off),
operation will be stopped and expansion valve is closed immediately.
2) Utilization of auxiliary rely
Auxiliary relay can be used for alarm or compressor ON/OFF or liquid valve
ON/OFF In case of Pd= Off, use it as an alarm purpose.
If users enter pump down time (1~180 sec), it will be used for ON/OFF signal of
compressor.
3) Selection of electronic expansion valve
First of all, EVC10B needs to setup EEV mode to fit features of electronic
expansion valve. If EEV mode does not meet operation features of electronic
expansion valve, there can be malfunction. Please check it without fail. Operate
only number 2 and 3 of DIP SWITCH (DSW). After changing of setting, push
RES button on the right of product and restart. Users may input power
again.
DIP
SW 2
DIP
SW 3
MAKER & MODE SPEC.
OFF OFF
SANHUA-DPF(Q), DPF(R)
JAHWA-SEV, JHEV
FUJIKOKI-CAM
SAGINOMIYA-
UKV,SKV,VKV,PKV,AKV
1-2 PH excitation type
500 PULSE
30 PPS
OFF ON
SANHUA-DPF(O)
FUJIKOKI-EDM
GREEN-GV321,521,641
2 PH excitation type
2000 PULSE
100 PPS
ON ON Direct input by user
Setup at
parameter 3 group
※ In case of DPF(O)-8.0, change set value after altering into user mode.
(DIP SW 2,3 = ON)
Function CODE Min. Max. Default
Changed
Value
Expansion valve
excitation type
EVD
0 1 2 2
Expansion valve TOTAL
PULSE
EVP
100 999 200 250
Expansion valve OPEN
PULSE
EVO
0 999 100 100
Expansion valve DRIVE
SPEED (PPS)
EVS
1 18 1 5
4) Selection of control mode
Operation
mode
DIP SW
Description
1 4
Automatic
mode
OFF OFF
- Superheat control
- Possible to operate valve via
RS485 comm.
Drive ON ON
- Operate valve receiving external
signal from J5 port
Manual
operation
ON OFF
- Operate valve using UP/DOWN button.
- Possible to operate valve via
RS485 comm.
Temp.
control
OFF ON
- Precise temp. control by controlling hot gas
bypass
※ It does not detect alarm at drive and manual operation mode.
