Step 7:

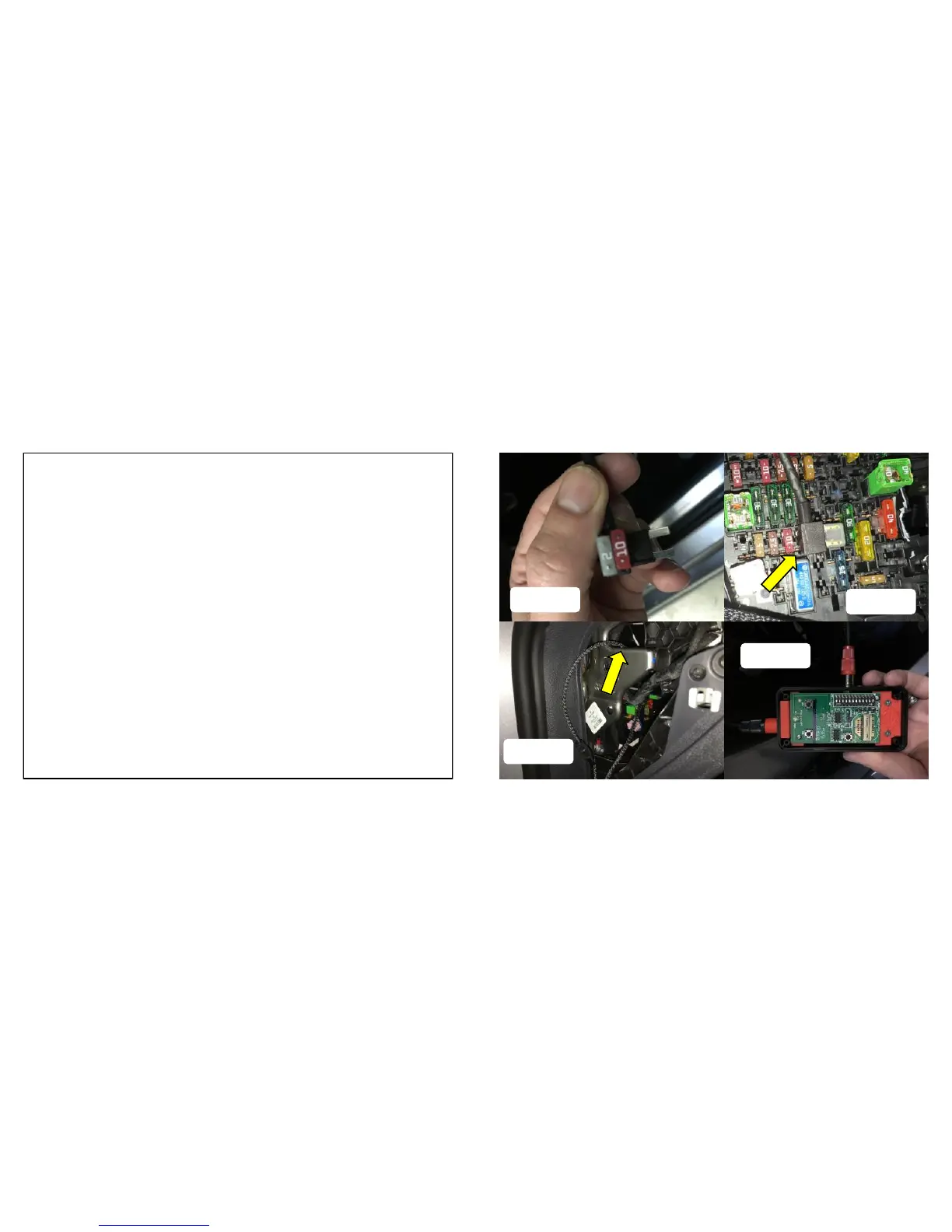

1. Insert the provided 2 amp fuse into the Add-A-Fuse in the position
shown. If your vehicle was equipped with a fuse in location F36, insert
it into the 2nd position on the Add-A-Fuse. Figure A
2. Insert the Add-A-Fuse in the orientation shown in Figure B.
3. Route the end of the button harness over the top of the metal dash
support inside the end compartment. Figure C
4. Connect the power harness to the red RCA jack on the control module
and connect the button harness to the black RCA jack. Figure D
For two button kits, the RCA plug corresponding to the 1st button on
the button assembly is labeled SW1.
