Step 6:

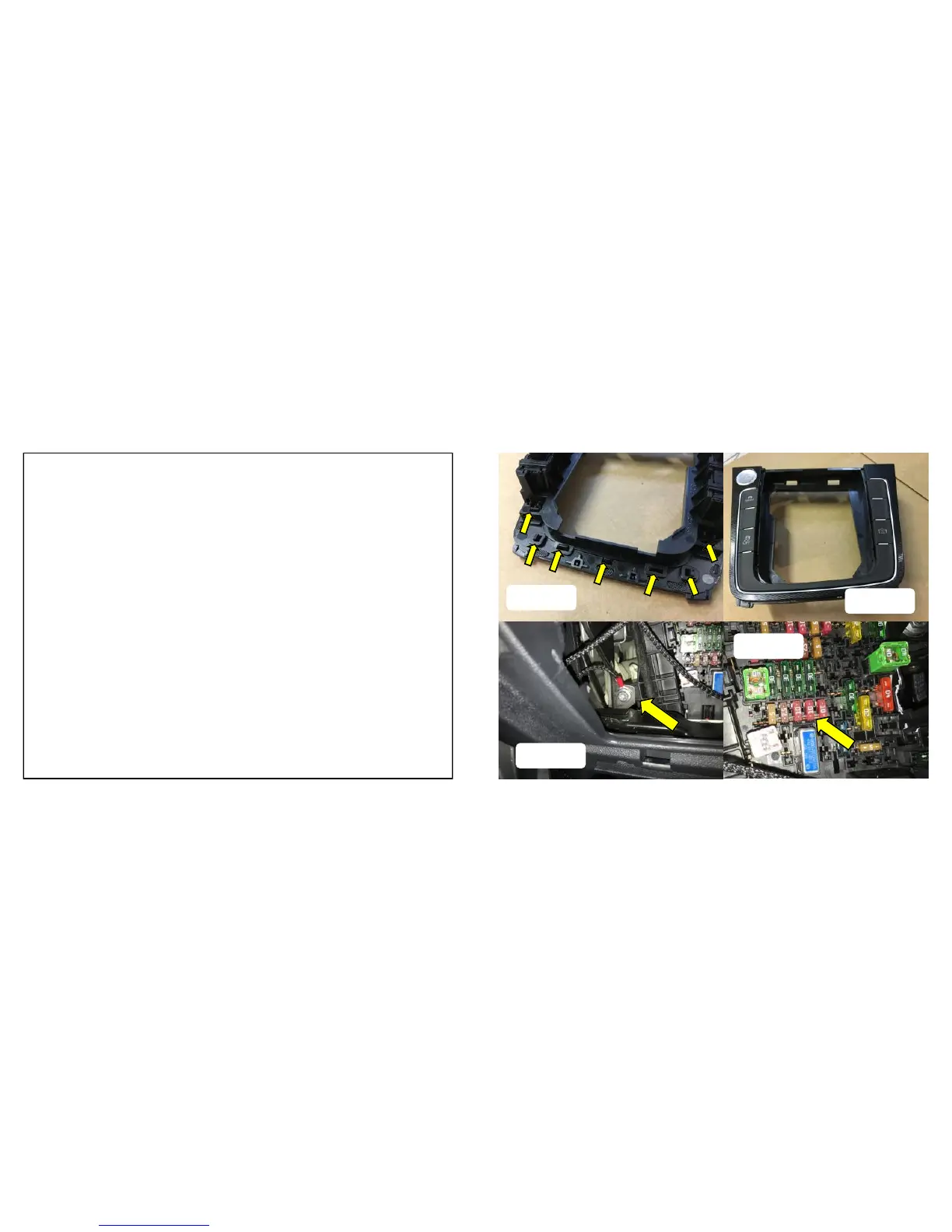

1. Remove the thin black trim piece on the back side of the button
cluster by releasing the tabs on the bottom. Figure A
2. Push out the right side button blanks and replace with the Gar-
age Control button assembly. Replace the thin black trim. Fig-
ure B
3. Re-install the button cluster. Reconnect all of the connectors
and make sure the short leads on the Garage Control button
harness sit in the recess behind the shifter. Don’t secure the
trim with the Torx screws yet.
4. Secure the Y terminal on the Garage Control power harness
behind the T30 Torx bolt on the left side of the fuse panel. Fig-
ure C
5. Remove the 10 amp fuse in postion F36 if equipped. Figure D
To Next Page
