2
9

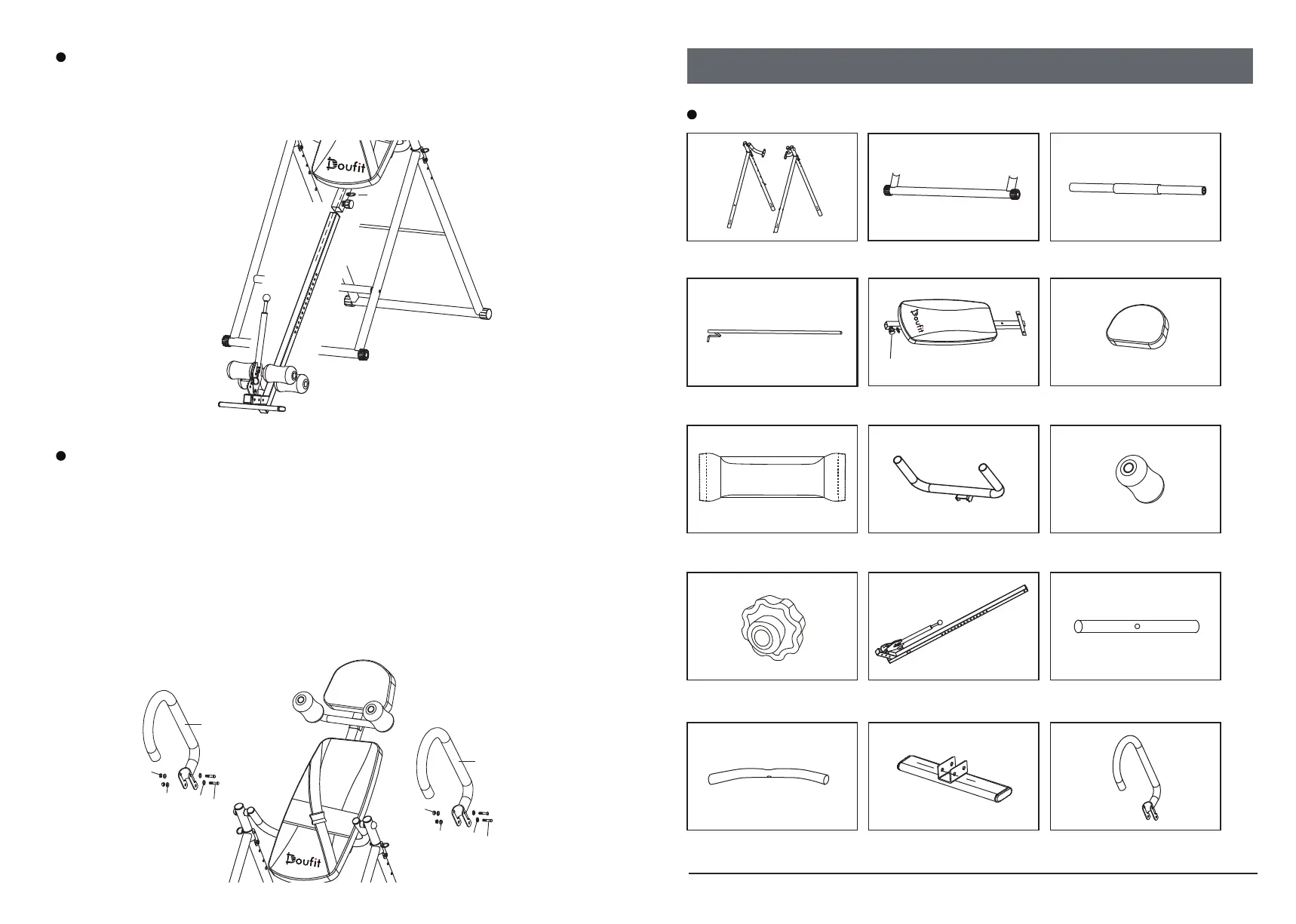

Parts List
1.Support 2.Foot pipe x 2pcs 3.Front preventing bar
4.Rear preventing bar
5.Backrest
6.Headrest
7.Lumbar pad 8.Shoulder holder 9.Sponge sleeve x 6pcs
10.Knurled clamping nut 11.Height adjustment 12.Rear ankle bar
13.Front ankle bar 14.Footrest
15.Handlebar x 2pcs
Component
knob
Step 7: Assemble the height adjustment
Insert the height adjustment to the backrest assembly and then twist the knob
and insert the detent pin(No.16) to fix it.
Step 8: Assemble the handlebars
For this step, please prepare two handlebars(No.15), four M8 lock nuts(No.19),
eight M8 flat washers(No.20), four M8*55mm Hex bolts(No.21), M13 wrench
(No.25) and M14 wrench(No.26).
Attach a handlebar to the support. Screw two M8*55mm bolts, four M8 flat
washers and two M8 lock nuts by using two wrenches. (One washer is on each
side of the bolt.The assembly of two handle is same.)
16
15
19
20
20
21
15
19
20
20
21
