NAVAIR Ol-40AVM-l
STORE DRAG IN DEXES AND GRO SS WE I GH TS
DRAG INDEX FOR CLEAN CONFIGURA T ION (2) = 0
Section XI
Par t 1
MODE L: A- 4M
ENGINE: JS2-P-408
DATA AS OF. 1 DECEMBER 1970
DATA BASIS: ESTIMATEO
STATIO N
STATION
1 2
4
,
500
U
)POUNDS
UP TO
500(l)POUNDS
STORES UP TO
STORES UP TO
1200(I)POUNDS
1200
U
)POUNDS
NOTE:
AI RCRAFT WEIGHT (POUNDS I
ESTIMATED W EIGHT EMPTY (~) - - - _ - - 11,326
TW020MMGU NS (N QAMMOJ------_ 344
TWO AERO 20 A AI RACK-PYL ONS ON
STATIO N 75 (2 AN D 4)- - - - - - -- - _ 140
TWO AERO 20 4-1 RACK-PYLONS ON
STATI ON1l3.7 5(lANDS)------ - - 128
TWO JOe-GALLON AERO-lO
EX TERNAL FUEL TANKS{EMPTYl_____ 398
ARMORPLATE __ ___ __ ____ __ 101
TOTAL OPERATI NG WEIGHT EMPTY - _ _ _ 12,437
(l J REFER TO N AVAIR Ol -4 0AV - IT FOR CA RR IAGE AND
RELEASE L IMI T ATIONS, ANO EXCEPTIONS FOR CARRIAGE
OF CE RTAIN S TORE S WEIG H I NG MORE THAN STATION
LIMITAT IONS SHo\'VN.
( 2) CLEAN A IRCRAFT CO N FIGURATIO N DOES NOT I NCLUDE
GUNS AND WING PYLONS.
( J) OPERATING WEIGHT IN CLUDES A CENTERLINE AERO 7 A-I
RACK (WITH FAIRI NG ) PILOT ENGINE OIL, TR APPED
FUEL AND OIL, lIQU16 OXYGEN (10 LI T ERS), DRAG CHUTE,
ECM EQUIPMENT, AND MISCELLANEOUS EQUIPMENT
(PARAKITS, ETC).

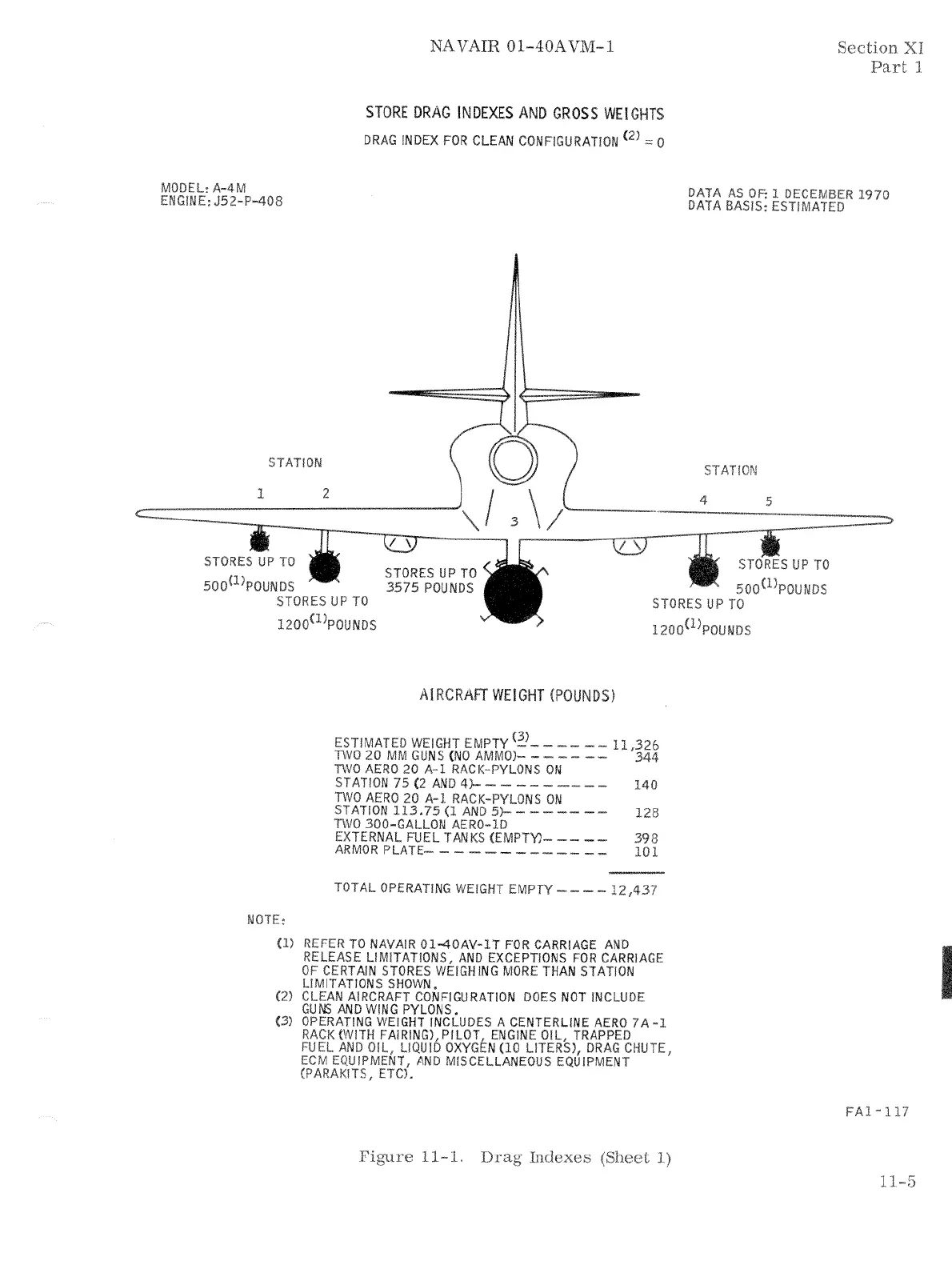

Figure 11-1. Drag Indexes (Sheet 1)
FAl-l17
11-5
