99.826.05 1.2/02/20 99.826.05 1.2/02/20
English English
VCD 203 VCD 203
6/16 7/16
Closing edge protection
In the "CLOSE" direction the drive has an active
protection for the main closing edge. If there is an
overload in the closing ranges 3 and 2, the drive runs
"OPEN" for 20 seconds, then "CLOSE" again. If
closing is not possible after three attempts, the drive
remains in this position.
In addition, the drive is equipped with passive
protection. The closing speed in closing range 2 and
1 is reduced to 5 mm/s.
Significantly greater forces can be
exerted at the secondary closing edges.
Danger of crushing hands and fingers!

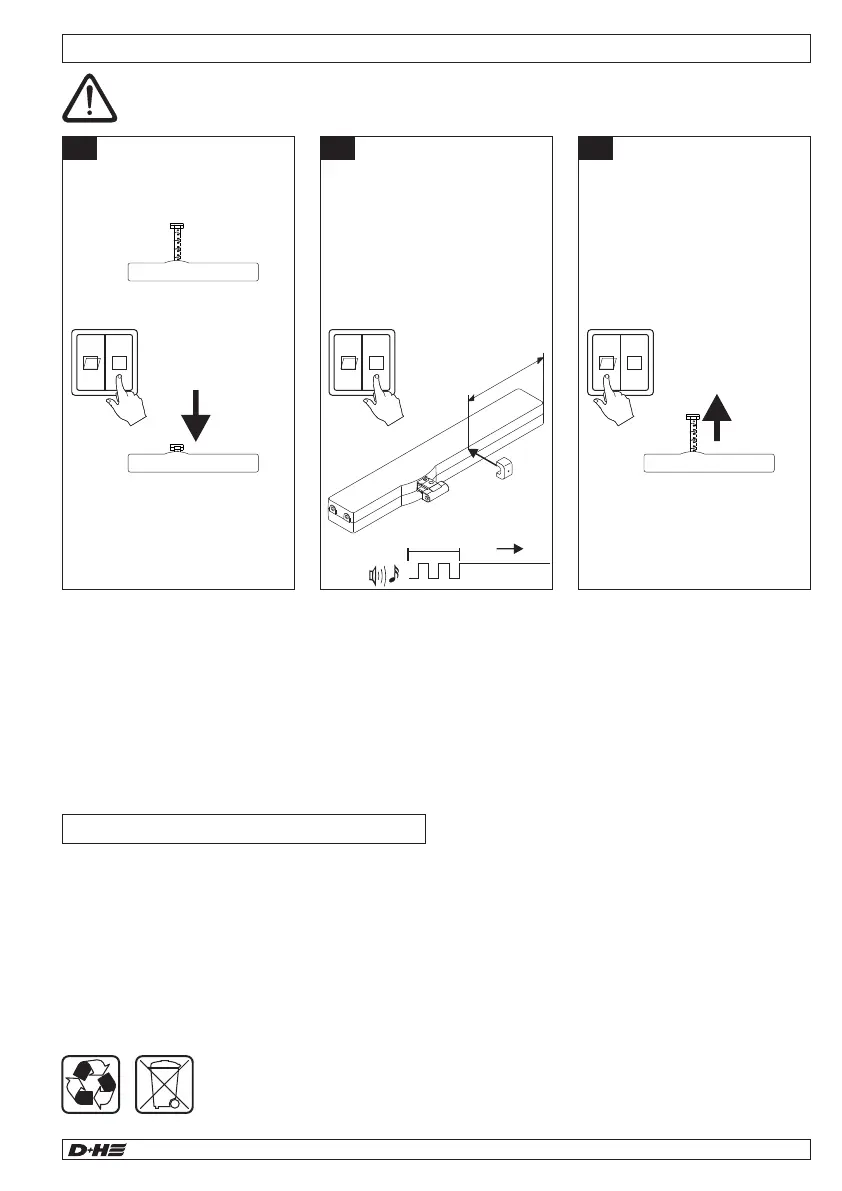

Stroke limiting with magnets
Voltage must continue to
be applied to the drive when
moving in the “CLOSE”
direction. Hold the magnet next
to the drive as shown in the
diagramme (2 sec.) until you hear
a pulsating ton > The drive is now
in learning mode. The magnet can
now be removed and the drive no
longer has to be under voltage.
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
Disposal
Close drive.
1
Allow the drive to run
“OPEN” until you reach the
required stroke.
If the stroke is set incorrectly,
the procedure is accidentally
interrupted or the drive
continues to the full stroke
length, please return to point 1
and start again.
STOP
3
learning mode
appr. 2 sec.
2
When using two VCD 203 on one window, both drives must be electrically connected in order to
set the stroke, although only one drive needs to be switched to the stroke learning mode with the
magnet.
All forces + approx. 20 % switch-off reserve (temporary)
Running speed and forces
Closure Ranges
~6 mm/s
200 N
5 mm/s
150 N
77 mm
~6 mm/s
200 N
23 mm
Main closing edge
Beside closing edge
Beside closing edge
ca.120 mm
Type VCD 203
Power supply 24 V DC / ± 20 %
Nominal current 0,35 A
Nominal force 200 N
Nominal locking force approx. 2000 N (Excluding bracket)
Service life >20 000 double strokes
Duty cycle 30 % (With cycle time 10 minutes)
Housing Zinc-diecasting, powdercoated
Ingress protection IP 30
Temp. range 0 ... +60 °C
Emission sound pressure level LpA ≤ 46 dB(A)
/
Nominal stroke length * ** 250 mm
Additional functions ** Closing edge protection activated (3 stroke repeatings);
Locking relief activated
*Adjustable with PLP 1 ** Programmable with PLP 1 and SCS
Technical data
