50 DR
®
LEAF and LAWN VACUUM

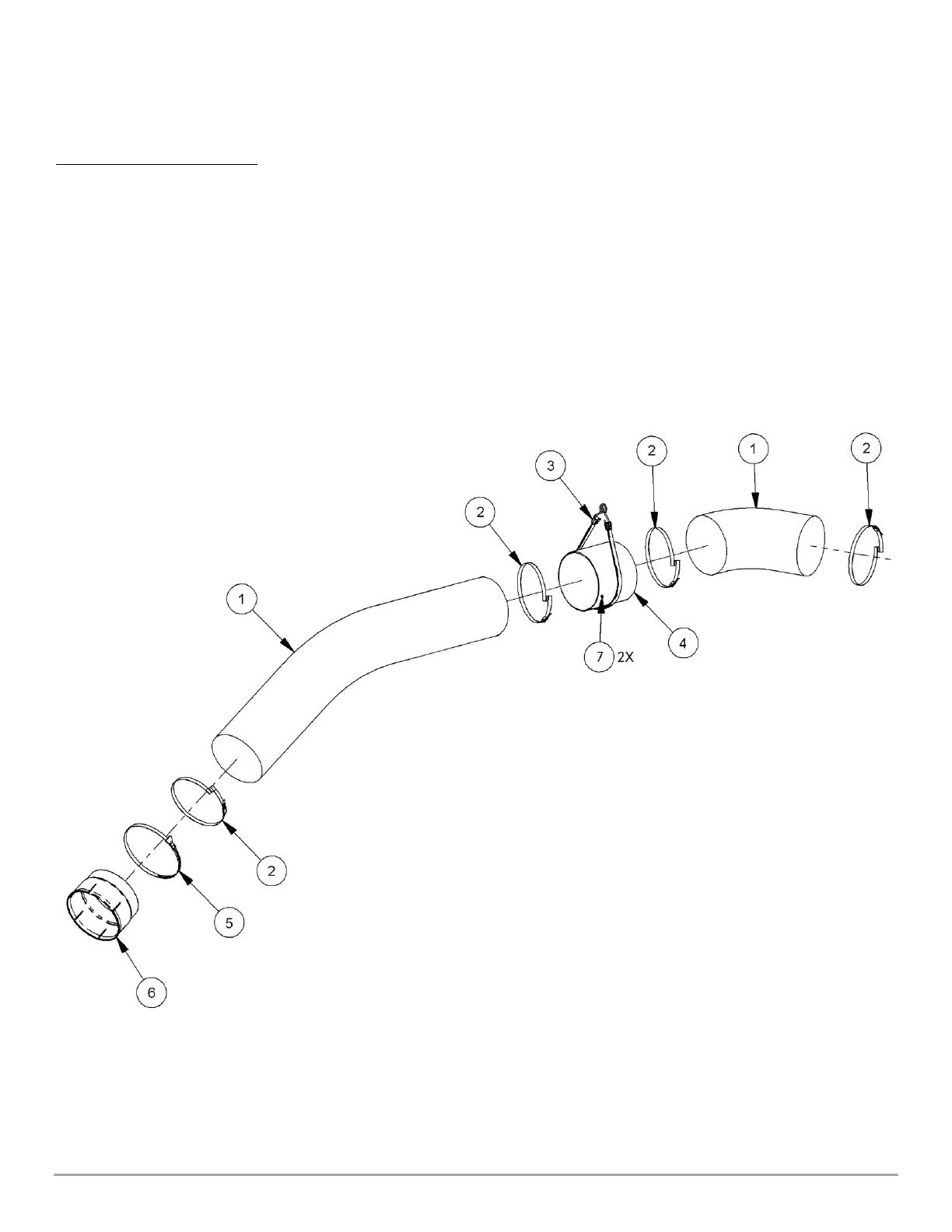

Parts List and Schematic – HOSE ASSEMBLY
Note: Part numbers listed are available through DR Power Equipment.
Ref# Part# Description
1 337951 Hose, 8" ID X 72" Long, PVC (cut into two pieces – 56" section and 16" section)
2 337961 Clamp, Hose, 8", Bridge
3 354421 Strap & Hook Set
4 351981 Coupling, Hose, 8″
5 337971 Clamp, Hose, 8", Thumbscrew
6 342481 Cuff, Hose, 8"
7 164141 Rivet, Pop, 3/16″ X 3/16″
