Wiring Instructions
1. Move the "ON-OFF" Switch on the ROTO-HOG Control Box to the “OFF”
position (Figure 12).
2. Attach the Spreader Cable Connector to the Motor Mount Assembly
Connectors (Figure 13).
3. Plug the Green Wire Connector from the Spreader Cable into the Green Wire
Connector from the Tiller (Figure 14).
4. Remove the Nylon Locknut from the Ground Stud on the Battery Mounting
Bracket.
5. Install the Black Wire Terminal from the Spreader Cable onto the Ground
Stud and reinstall the Nylon Locknut.
6. Use the Nylon Ties provided to safely secure the wiring and Flow Control
Cable away from hot engine parts, rotating parts and pinch points.
Mounting the Flow Control Lever Assembly
1. Find a place on your tow vehicle to mount the Flow Control Lever Assembly
where you can operate while sitting on the vehicle. If there is not a hole in
the area to mount a 5/16” bolt then you must create one.
2. Using a 5/16" x 1-3/4" Carriage Bolt and Wing Knob from the Hardware
Package, mount the Flow Control Lever Assembly to your Tow Vehicle
(Figure 15).
3. If a different mounting position is required, use the Mounting Clamp from
your Hardware Package to change the position of the Flow Control Lever
Assembly. You will need to provide the hardware to mount the Mounting
Clamp to the tow vehicle.

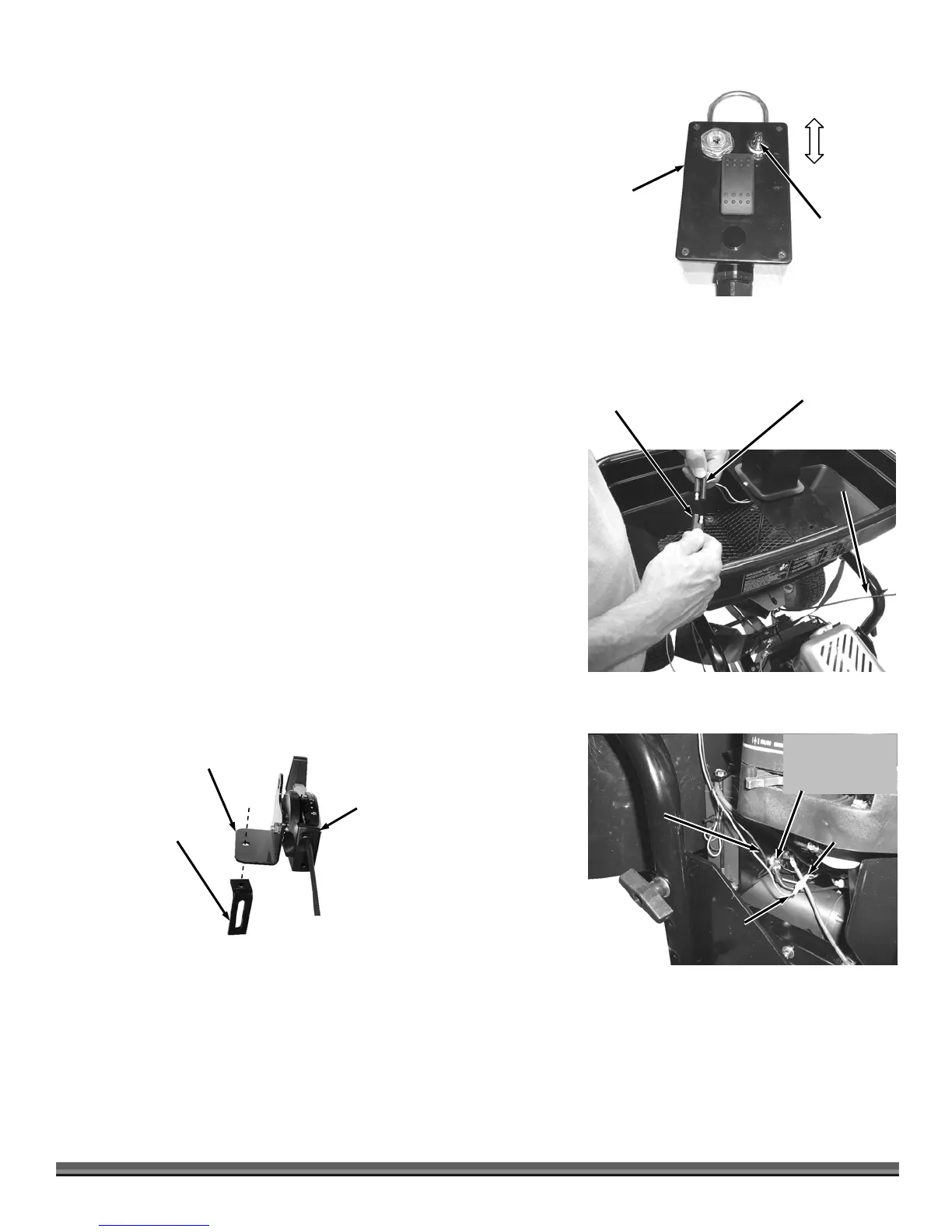

Figure 12
“ON-OFF”
Switch
“OFF”
“ON
ROTO-
HOG
Control Box
Flow Control
Lever
Assembly
Figure 15
Mounting
Clamp
Bracket
Tiller Wire Harness
Connector
Motor Mount
Assembly
Connectors
Figure 13
Flow Control
Cable
Figure 14
Black Wire
from
Spreader
Cable
Green Wire
from Spreader
Cable
Green Wire
rom Tille
Ground Stud on
Battery Mounting
Bracket
