DR VERSA TRAILER PRO XL2000 - Installing the Dump Bed

20 DR
®
VERSA TRAILER™
Make sure all Nuts and Bolts are tight. Inspect all Hardware on your Trailer
before proceeding any further.
 The Bed of the Trailer is very heavy and must be lifted out of the Shipping
Crate and on to the Trailer by at least two adults.
 Always be aware of where your Hands and Feet are positioned as they can
be crushed if you lose your grip while lifting the Bed from the Shipping
Crate.
 Never allow children or pets to play around you, the Bed, Shipping Crate, or
Trailer when you are performing these steps.
 Check that all Latches are firmly engaged and locked before lifting the Bed
of the Trailer.
11. Loosen the Locking Handles for the Stabilizer Legs and raise them to the
highest position for towing. Re-tighten the Locking Handles and rotate the
Trailer Jack to the Tow position (Figure 42).
12. Torque the Lug Nuts on each Wheel to 70-80 ft-lbs using a Torque Wrench,
a 5" Extension and 21mm Socket.
Inserting the Log Hauling Extenders
NOTE: If you wish to use the Trailer in the Log Hauling configuration initially,
please follow these steps, if not please skip to the next section that covers installing
the Dump Bed.
1. Insert the Log Cradles (Figure 43), with the angled portion of the Cradles
facing outwards.
2. Insert the Log Cradle Extensions by first passing the Chain through the
Square opening(s) of the Log Cradles.
3. Install the Log Cradle Extension Caps.
Removing the Blue Plastic Protective Film and Installing the Dump Bed
Tools Needed:
 Utility Knife
 Protective Goggles or Safety Glasses
 Gloves
1. Remove the Bed from the steel-shipping Crate with the assistance of at least
one other person by lifting the Bed straight up, and out of the Crate by the
Tailgates. Make sure all four Latches on the Tailgates are properly latched
(Figure 44) before lifting the Bed out of the Crate and placing it on the
ground.
2. To remove the Blue Plastic Protective Film from the Inside and Outside of
the Bed, use your Fingernail, or the point of a Utility Knife to peel up one end
of the plastic at the edges of the Bed and begin to peel off the Film.

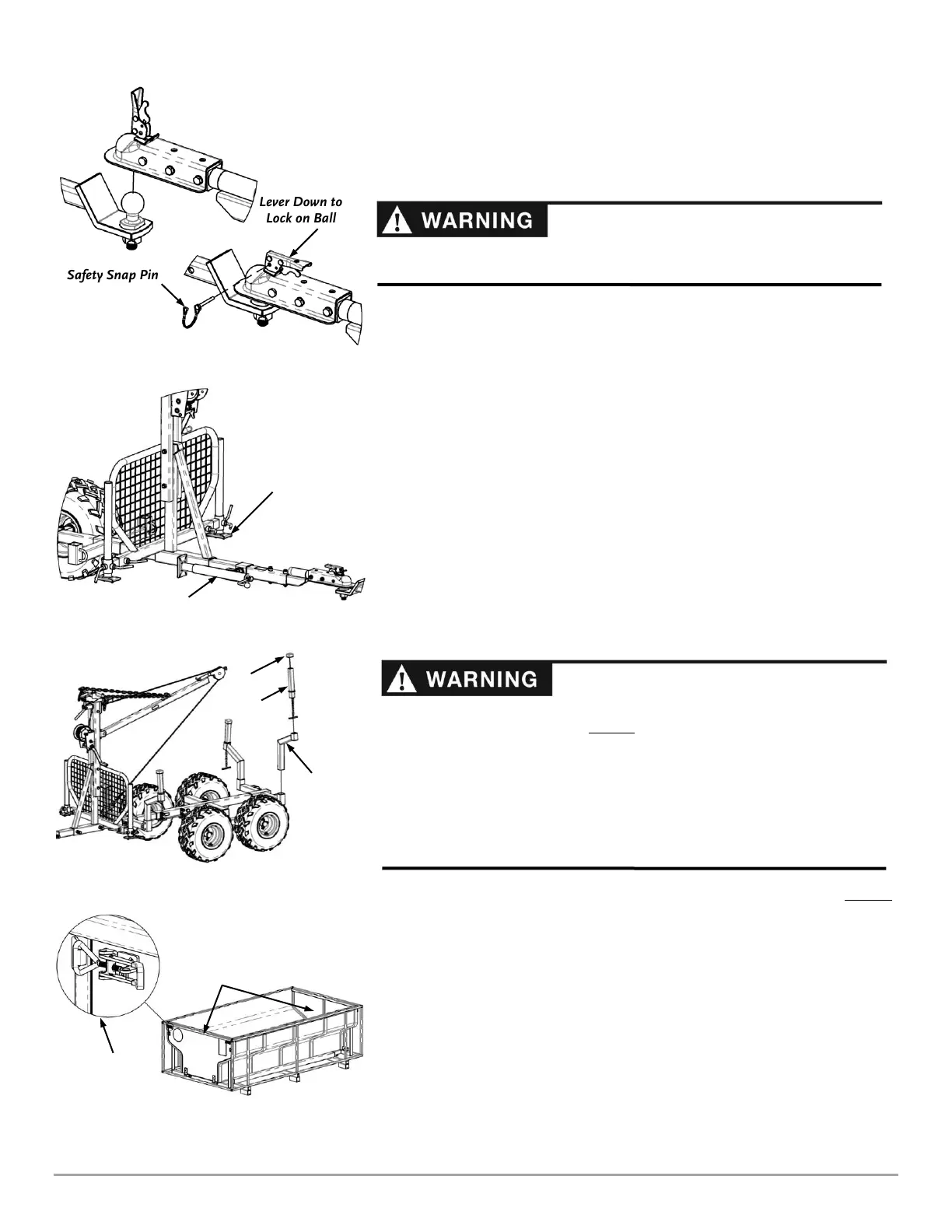

Figure 44
Latch
Tailgates
Figure 41
Safety Snap Pin
Lever Down to
Lock on Ball
Jack in Tow Position
Figure 42
Stabilizer(s) in
Tow Position
Log
Cradle(s)
Extension(s)
Cap(s)
Figure 43
