DR VERSA TRAILER PRO XL2000 - Using the Dump Bed

To Next Page

To Previous Page

 Never stand in, or under the Bed when dumping material from the Bed.

 Never place anything under the raised bed and always ensure that no other

adults, children, or pets are near, or around the Bed when lowering it back

into place.

 Never load more than 650 lbs of material into the Bed if you are intending

to dump it.

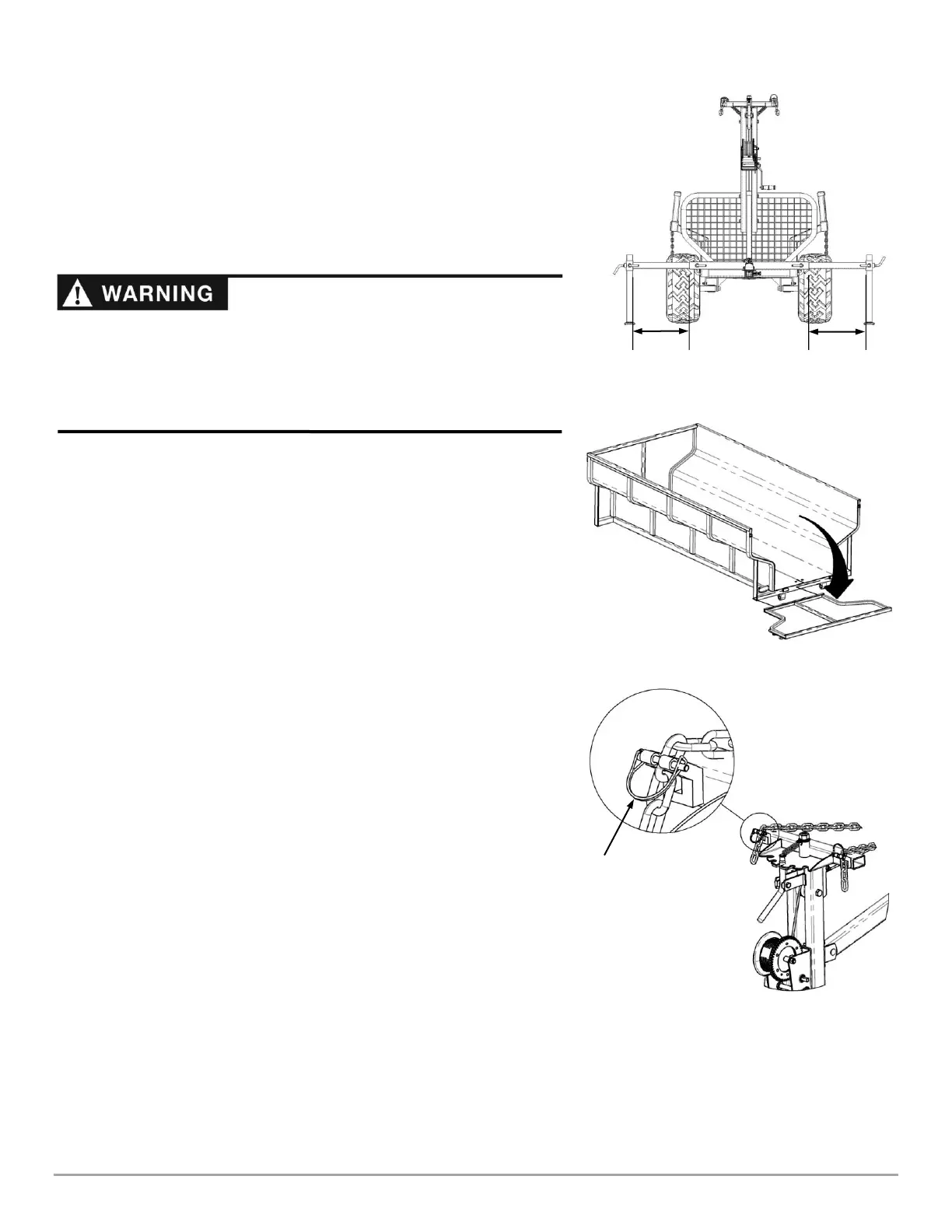

Before loading the Trailer with the Winch, extend the Outriggers no more than 15"

outwards from the end of the Operator Guard (Figure 49) and lower the Adjustable

Stabilizer Legs to the ground and tighten the Locking Handles. Once you have

finished loading the Trailer, raise the Adjustable Stabilizer Legs and retract the

Outriggers for travel.

NOTE: If you are loading material into the Bed that you wish to dump, make sure the

Winch Hook is properly secured to the U-Bolt inside the Bed (Figure 48).

Using the Dump Bed

1. The Dump Bed may be used to haul and dump a number of things from

dirt, rocks, stones and logs, to name a few. To dump material from the

Bed of the Trailer, remove the Rear Tailgate.

NOTE: To remove the Tailgate(s) release the Latches on the Tailgate by pulling the

Red Handles of the Latches away from the Tailgate. Pivot the Tailgate

down and then push the Tailgate to the Left to uncouple the Hinge

(Figure 50).

2. Once the Tailgate has been removed, use the Winch to raise the Bed to

dump the material out.

NOTE: The Chains for the Boom need to be adjusted to the ideal length for the

Dumping of the Bed. Adjust the length of the Chains so the 10th link of

the Chain (from the free end of the Chain) is captured and securely

pinned in place, with the supplied Safety Snap Pins, on the Boom Pivot.

It is recommended to have the assistance of one other person to support

the weight of the Crane while you adjust the length of the Chains

individually. Remove one Safety Snap Pin, adjust the Chain, then re-

seat the Chain in the Retainer on the Boom Pivot and re-insert the

Safety Snap Pin (Figure 51). Repeat for the other Chain to have the

Boom centered on the Trailer and ready for dumping.

15"

Figure 49

Figure 50

Figure 51

Safety Snap Pin
