8 DR
®
VERSA TRAILER™

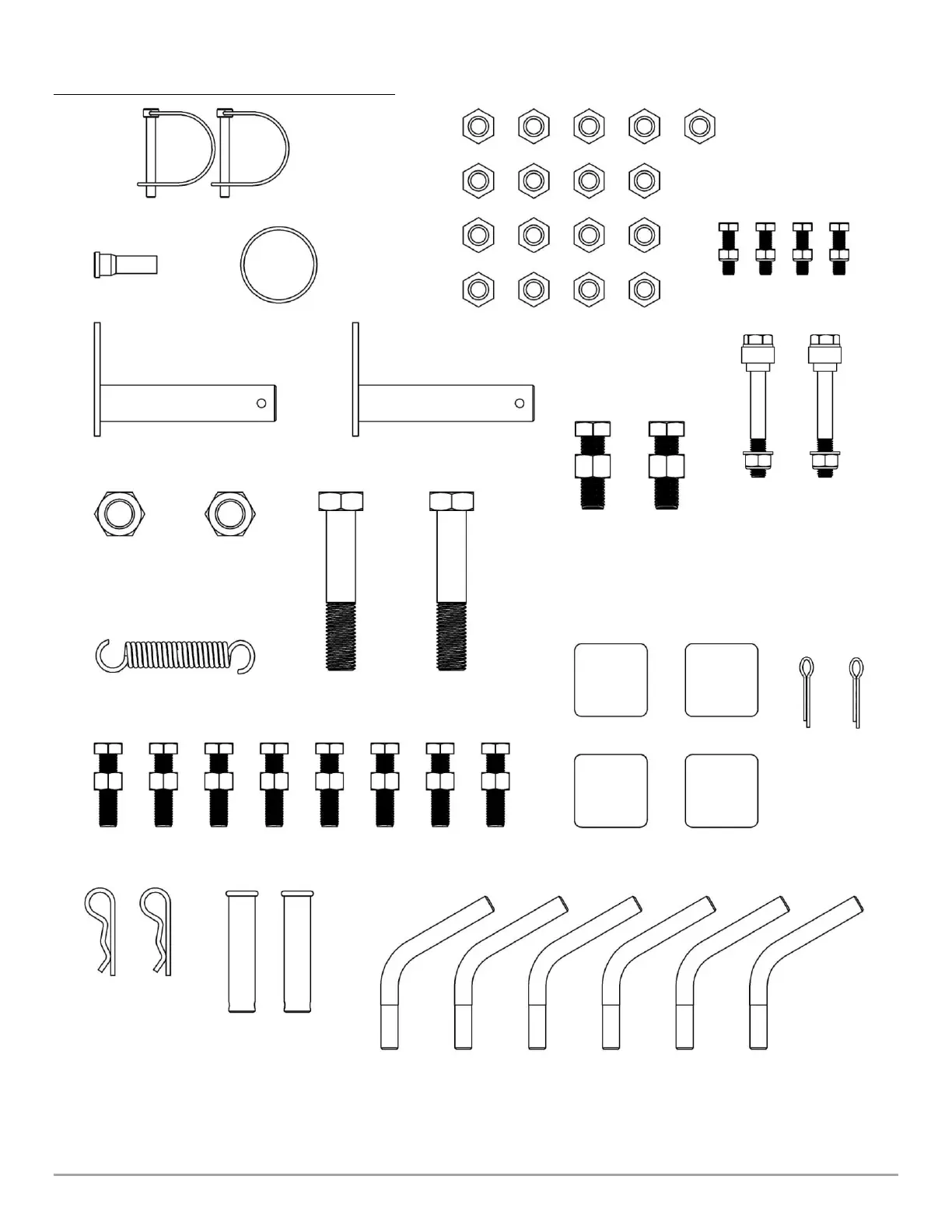

Figure 3
(2) Safety Snap Pin (302751)
(2) Axle Pivot Pin (302441)
(2) M20 Lock Nut (277201)
(2) M20 Bolt x 110mm (277191)
(17) Lug Nut (299781)
(8) M12 Bolt x 50mm (302391)
(8) M12 Hex Nut (302401)
(4) Box Tubing Cap (299681)
(2) Dump Bed Pin
(277221)
(2) M10 Bolt x 90mm (302511)
(2) Tow Hitch Spacer (302841)
(2) M10 Lock Nut (302491)
(4) M8 Bolt x 30mm (302451)
(4) M8 Lock Nut (302461)
(2) Hitch Clip Pin
(160031)
Pivot Lock Spring (302571)
(2) M16 Bolt x 50mm (30238)
(2) M16 Hex Nut (30237)
Wheel Stud (299601)
Wheel Dust Cap
(299611)
(6) Stabilizer Lock Handle (277331)
The Parts shown here are included in the Hardware Kit Bag
(2) Cotter Pins
3/16" x 2-1/2"
(253111)
