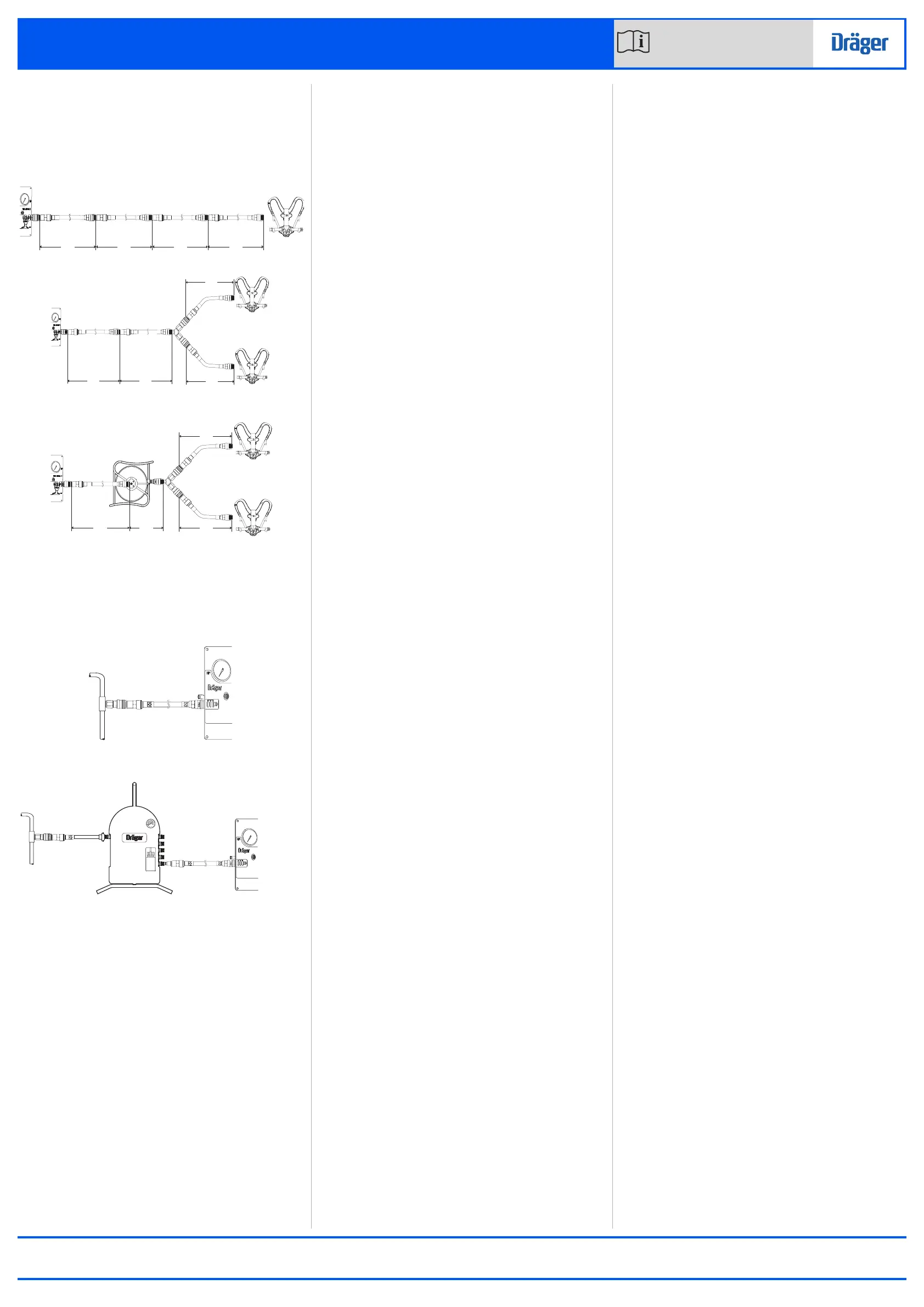

9.1.1 Dräger airline equipment and breathing apparatus
No more than five couplings are permitted per line on the output side of the
PAS AirPack Pneumatic Assembly (a Y-piece is treated as two
connections). Additionally, the maximum combined length of the extension
hoses is 100 m in the whole system. The figures below (not to scale) show
some examples of the maximum number of connections (C1 to C5) and
maximum hose lengths that are permissible in an output configuration
using Dräger equipment.
One breathing apparatus wearer
Two breathing apparatus wearers
Two breathing apparatus wearers (with stand-alone hose reel)
9.1.2 Medium-pressure Input
The medium-pressure input is from a factory airline or compressor using
a suitable extension hose, and filter unit if required. Any airline equipment
that is used in the input line must allow the medium-pressure input
requirement to be met (see Section 8).
Input with extension hose
Input with Dräger airline filter unit
45 m
C1
C2
C3
C4
C5
45 m
5 m 5 m
3240
30 m
C1
C2
30 m
C3
20 m
C4
C5
C5
C4
20 m
3242
30 m
50 m
(HOSE REEL)
10 m
10 m
C1 C2 C3
C4
C4
C5
C5
3241
3244
3243
