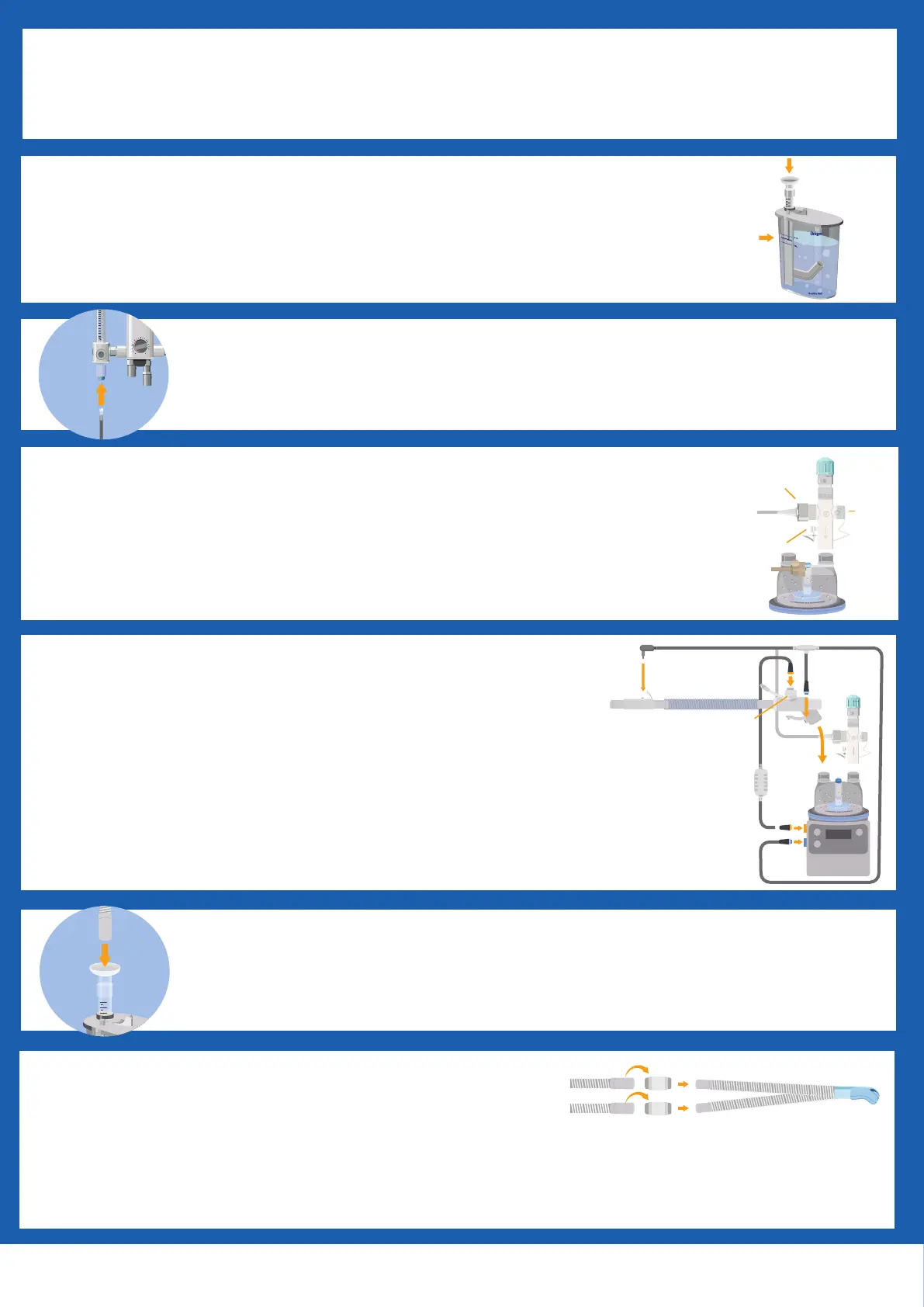

Dräger Seattle PAP plus - Setting Up the Bubble CPAP System; Humidifier and Water Reservoir Preparation; Connecting Gas and Breathing Circuit Components; Leakage Test and Therapy Initiation

17 cm H₂O
17 cm H₂O
Connect the heated inspiratory hose (B) to the humidifier chamber.
Connect the two temperature sensors (D, E) to the inspiratory hose (B).
Set the flow and the oxygen concentration to the required values.
Permitted flow limits: 4 to 12 l/min. Recommended 8 l/min.
Insert the humidifier chamber in the Fisher & Paykel humidifier MR850 and remove the caps.
Puncture the water bag with distilled water and open the vents of the water supply hose.
Ensure that the humidifier chamber fills with water.
Use the funnel to fill the water reservoir with max. 0.9 l of distilled water.
To adjust the water level, use a syringe to add or remove distilled water until the
correct water level line is reached.
Connect the adapter of the O
2
hose (H) to the lateral opening of the connector
with the pressure relief valve (fixed limit of 17 cm H
2
O).
The lateral opening (L) of the connector can be used for oxygen measurement
if necessary. The opening (I) can be used for external pressure measurement.
Connect the O
2
hose to the blender.
K
H
I
L
E
F
D
B
Set the CPAP value at the bubble CPAP chamber and lock it in place
with the safety tube lock.
Connect the expiratory hose of the breathing circuit to the filling funnel.
Performing a leakage test by closing the BabyFlow adapter for prongs or neo masks using the thumb.
Set the CPAP value to 10 cm/H
2
O and the flow to 1 l/min. Proper setup will be indicated by bubbles in the
bubble CPAP device.
Start CPAP therapy.
Connect BabyFlow plus directly to the breathing hoses.
O2 21
30
40
50
60
70
80
90
100%
15
14
13
12
11
10
9
8
7
6
5
3
4
1
2
0
32
30
20
10
3,2
O
2
O
2
2
2
O
2
O
2
2
2
PDF-9508 | 19.06-1 | Subject to modifications | © 2019 Drägerwerk AG & Co. KGaA
