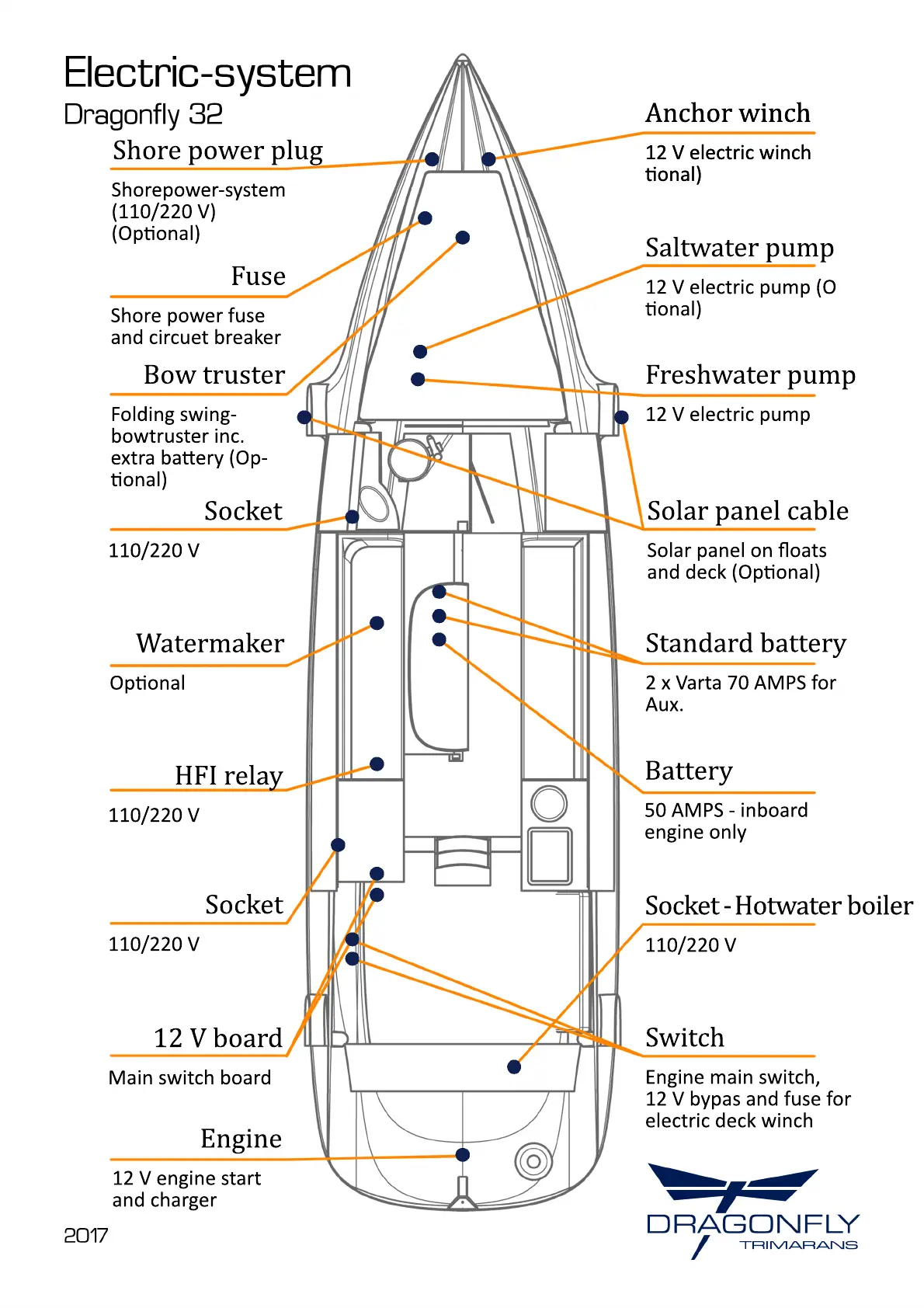

Dragonfly 32 Swing Wing - Page 75

Switch
Engine main switch,
12 V bypas and fuse for
electric deck winch
Socket - Hotwater boiler
110/220 V
Solar panel cable
Solar panel on floats
and deck (Oponal)
Freshwater pump
12 V electric pump
Saltwater pump
12 V electric pump (Op-
onal)
Anchor winch
12 V electric winch (Op-
onal)
Anchor winch
12 V electric winch (Op-
onal)
Battery
50 AMPS - inboard
engine only
Standard battery
2 x Varta 70 AMPS for
Aux.
Shore power plug
Shorepower-system
(110/220 V)
(Oponal)
Bow truster
Folding swing-
bowtruster inc.
extra baery (Op-
onal)
Fuse
Shore power fuse
and circuet breaker
Engine
12 V engine start
and charger
12 V board
Main switch board
Socket
110/220 V
Socket
110/220 V
HFI relay
110/220 V
Watermaker
Oponal
