Draper 36754 - IMPORTANT; IMPORTANT INFORMATION; INSTALLATION; INSTALLING BATTERIES

4. TECHNICAL DESCRIPTION
3. INTRODUCTION
5. IMPORTANT
5.1 IMPORTANT INFORMATION
- Recommended Water Pressure: : 0.5 – 12
bar. In higher pressure areas, use a
pressure reducer.
- Recommended Operating Temperature:
4° to 60°. It is recommended to remove
the timer from the tap during colder
months and when temperatures drop
below 4°. The timer should not be
subjected to freezing temperatures or
frost.
- Recommended Water Source: Use cold
mains water only. If you are using a
gravity fed watering system, ensure that
you use a tap filter. Do not use any bore
or unfiltered water. Do not use any kind
of pump to draw water. Do not use if the
water supply is unstable. Do not use any
liquids other than water.
6. INSTALLATION

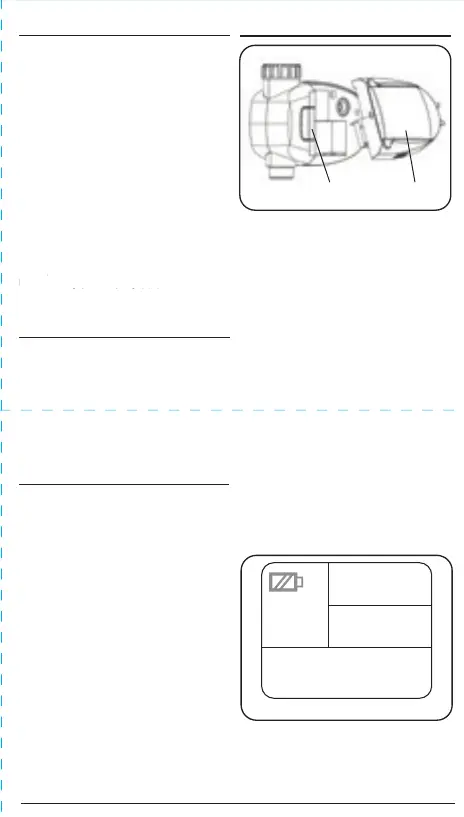

6.1 INSTALLING BATTERIES - FIG. 1
- 1x 9V Alkaline battery required.
- To remove/install a new battery please do
the following:
i The timer is split into 2 sections.
ii Use your thumb on your left hand to
push the green switch to the left.
iii Using your right hand, grip the front
section of the timer  and pull the
section towards you.
iv The front section will remove and you
will see the battery compartment at
the rear of the removed section.
v Replace the battery as normal and
then replace the front section back to
its original position. Make sure it clicks
firmly back in place.
vi The LCD screen should now be on and
the backlight will be lit. The clock icon
will be flashing.
6.2 LOW BATTERY INDICATOR -
FIG. 2
- When the screen is blank and you see a
flashing battery symbol, it is time to
change the battery.
- The timer will shut down automatically
and close the valve before the battery
becomes completely flat.
• The Draper Water Timer is best suited to
a cold mains fed system.
• The timer connects to the tap using the
1" connector or ¾" reducer supplied.
• Using a hose connector (not supplied),
connect the hose directly to the timers,
½" connector.
• Set the required watering time on the
dial before turning the water on.
3.1 SCOPE
This water timer allows you to easily set a
watering program to water every 8 hours to
every 5 days. A manual override, a backlit
LCD screen and simple controls make this
timer the choice of professionals.
PLEASE NOTE: You cannot program the
current date and time on this water timer. If
you require a timer with this capability you
may purchase Draper’s Electronic Ball Valve
Timer (Stock No. 36750)
3.2 SPECIFICATION
Stock No................................................36754
Part No.............................................. WTSOL1
Inlet.............................. 1"BSP Female with a
....... ¾"BSP female adaptor ring with filter.
Outlet.......................¾" BSP Male with a ½"
.............................................. hose connector
Battery ....................................................... 9V
3.3 HANDLING & STORAGE
Do not drop this machine.
Store out of the reach of children.
FIG.1
FIG.2
 
