Draper 47812 - Introduction to the Oil Suction Gun; Scope of Use; Product Specifications; Technical Description and Identification

- 2 - - 3 -
1. INTRODUCTION
2. TECHNICAL DESCRIPTION
1.1 SCOPE
A rugged transfer gun designed for use with gear oils to get them both into and out of gear boxes,
transfer cases and differentials.
3. ASSEMBLY
3.1 ASSEMBLY
• Attach the PVC hose to the end of the suction gun, Slide the flexible tube onto the hose fitting.
• A light coating of motor oil may be used as a lubricant if the joint is extremely tight.
4. OPERATION
4.1 OPERATION
• The suction gun operates simply by pulling back on the handle to remove fluids and pushing
down on the handle to add or top up a fluid.
• Fluids that are difficult to extract cold will extract easier when warmed up slightly by operating
the vehicle.
• The suction gun can be filled and used to add oil to gear boxes where the filler hole has poor
accessibility. Whenever adding fluids make sure the gun is cleaned out before filling with clean
oil.
5. MAINTENANCE
5.1 MAINTENANCE
The rubber packing on the suction piston and the tube cap rubber gasket are oil resistant but may
swell and become soft if used with some non lubricating fluids. It is recommended that these
rubber parts be cleaned and must be wiped dry after they come in contact with non petroleum
fluids.

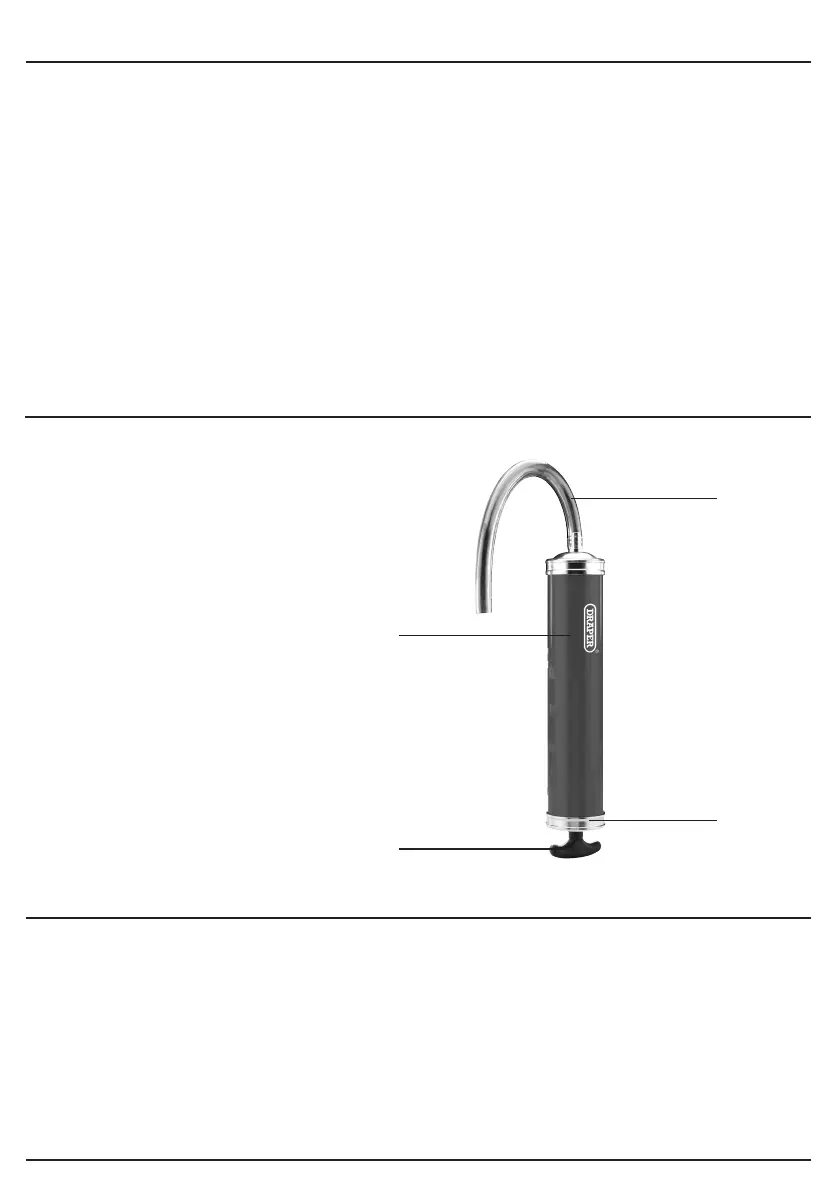

 300mm PVC Hose
 Barrel.
 End cap.
 T-handle.
2.1 IDENTIFICATION




1.2 SPECIFICATION
Stock No’s. ............................................................................................................................... 47812
Part No’s. .................................................................................................................................. A5/G
Hose type ...................................................................................................................... 300mm PVC
Plunger type .......................................................................................................................... Rubber
Handle style...............................................................................................................................T grip
Capacity ........................................................................................................................ 500ml (16oz)
Do not use with: ........................................................................................ Gasoline or Diesel fuel
