Foundation
™
for LED Panels
LED
CABINET
Mounting Holes

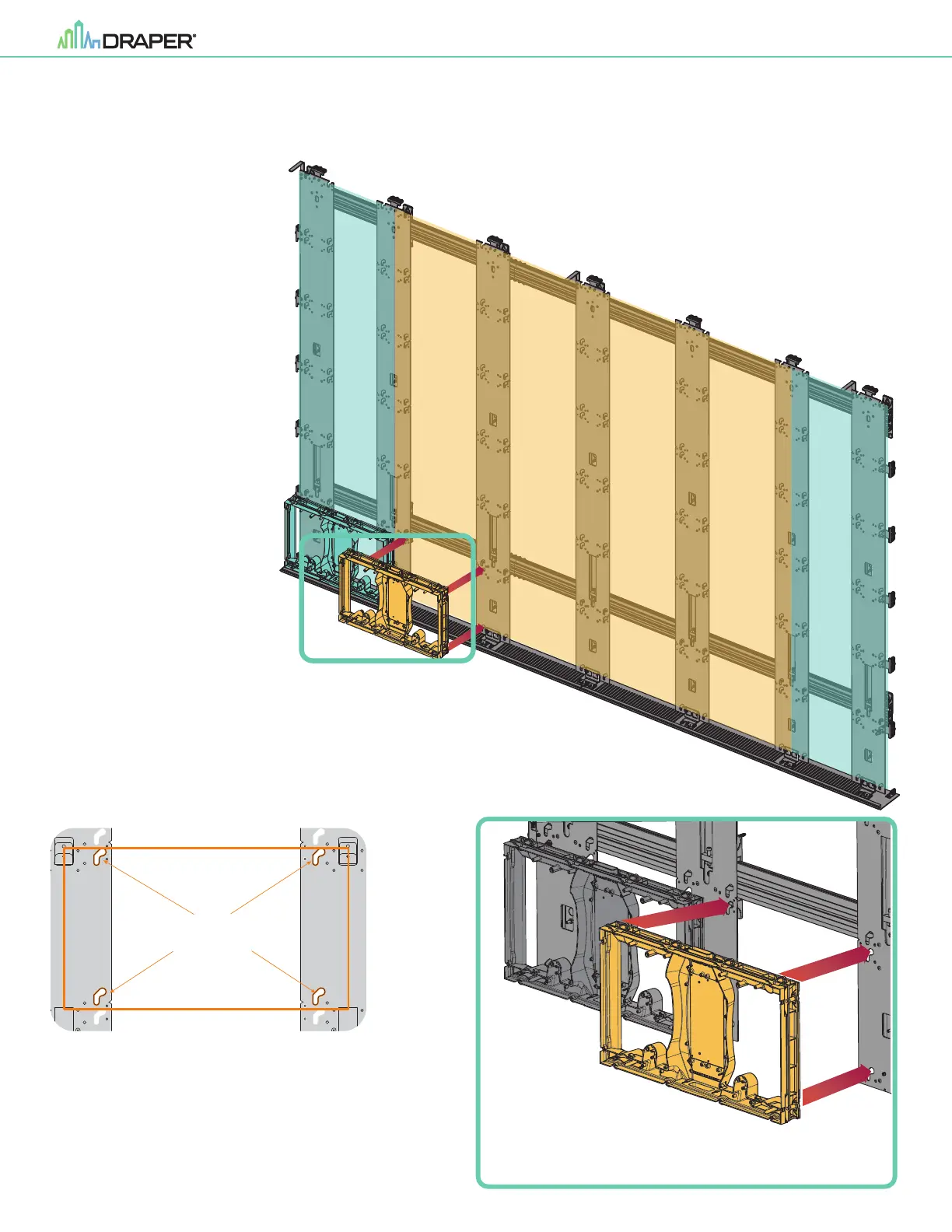

LED PANEL PLACEMENT
INNER COLUMNS
2. Attach the next LED cabinet direct to the right of the first. Continue until the first row is complete.
3. Working from left to right, attach the row of LED cabinets.
4. Continue until all LED cabinets are installed.
