Draper LVC-IV Wiring Instructions

Section 5 - RS232 / RS485 Information
COMMAND HEX COMMAND STRINGS
REMARK
UP 9A / 01 / 01 / 00 / 0A / DD / D7 / 0A
ID No. : 1 / Channel : 01
STOP 9A / 01 / 01 / 00 / 0A / CC / C6 / 0A
ID No. : 1 / Channel : 01
DOWN 9A / 01 / 01 / 00 / 0A / EE / E4 / 0A
ID No. : 1 / Channel : 01
Please Note: Command Strings are Hex values; not ASCII.
For more detailed programming instructions or group control go to:
http: // www.draperinc.com / DraperPro
(registration required)
RS232 / RS485 CommPort Parameters:
Frequency (BAUD Rate) 2400
Data long code 8
Parity Check N
Start bit 1
Stop bit 1
Flow Control NONE
FUSE - 3.15 AMP
250 VAC 5x20mm
PIN 6 - RS485-B or RS232-Rx
PIN 5 - RS485-A or RS232-GND
PIN 4 - Ground
PIN 3 - Up
PIN 2 - Down
PIN 1 - 5VDC Output
6 5 4 3 2 1
PINS
6 5 4 3 2 1
PINS
110-120V LVC-IV Low-Voltage Control Module
page 3 of 4
FUSE - 3.15 AMP
250 VAC 5x20mm
Low-Voltage wiring by others
Factory wiring
DASHED WIRING BY ELECTRICIAN
Low Voltage
Trigger
4-28 VDC

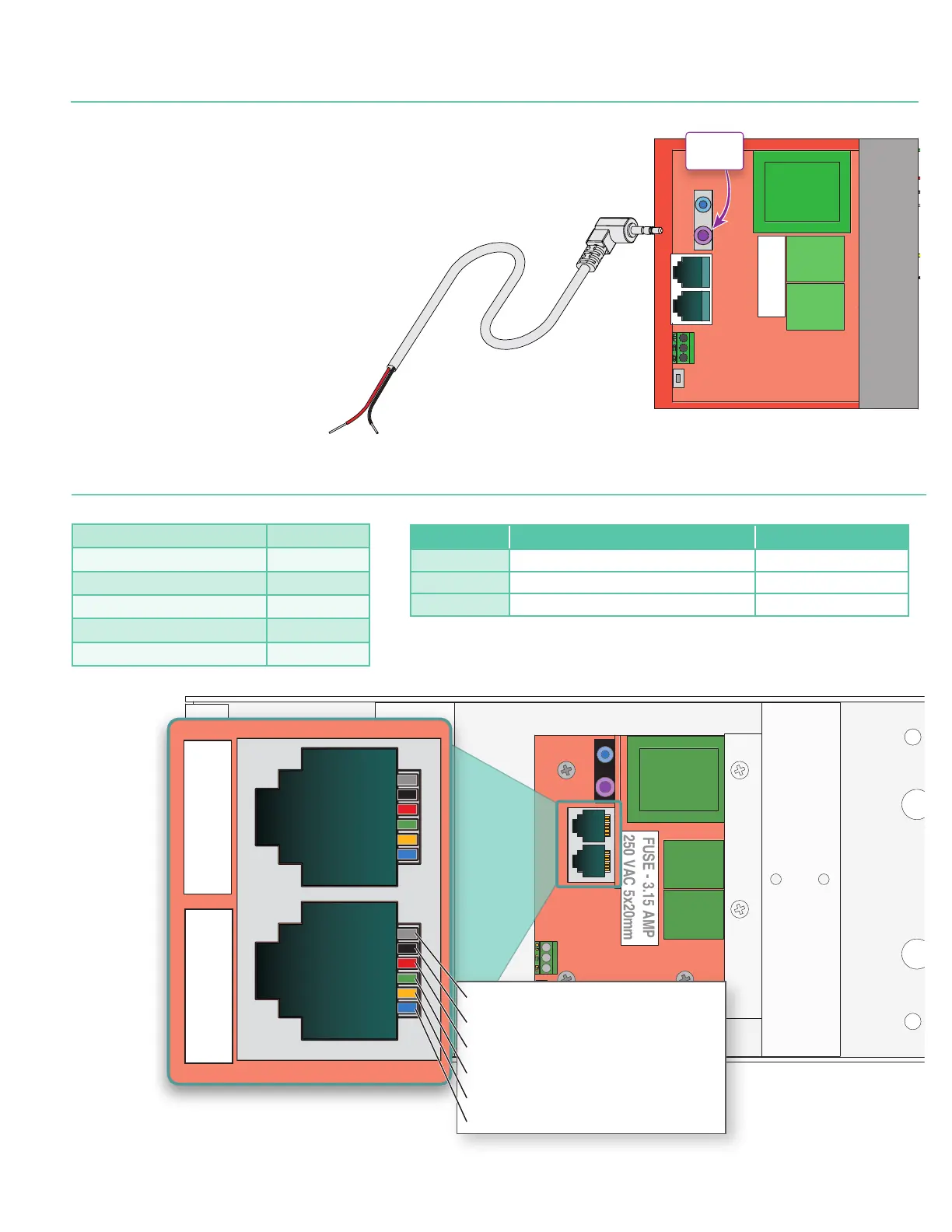

Section 4 - DC Low-voltage Trigger
The LVC-IV comes with built-in connection for sending a DC trigger (4-28 VDC) from the projector to the projection screen.
1. Connect remote trigger voltage from projector to the low-voltage trigger cable.
2. Plug the mini-jack plug of the low-voltage trigger cable to the LVC-IV (Figure 4).
3. When projector is 'ON' the low-voltage output of the projector will cause LVC-IV to
deploy projection screen. When projector 'OFF' the low-voltage is removed from
LVC-IV and projection screen will retract into case.
Positive Lead
Red 24 AWG
Negative Lead
Black 24 AWG
.60" Max.
Figure 4
