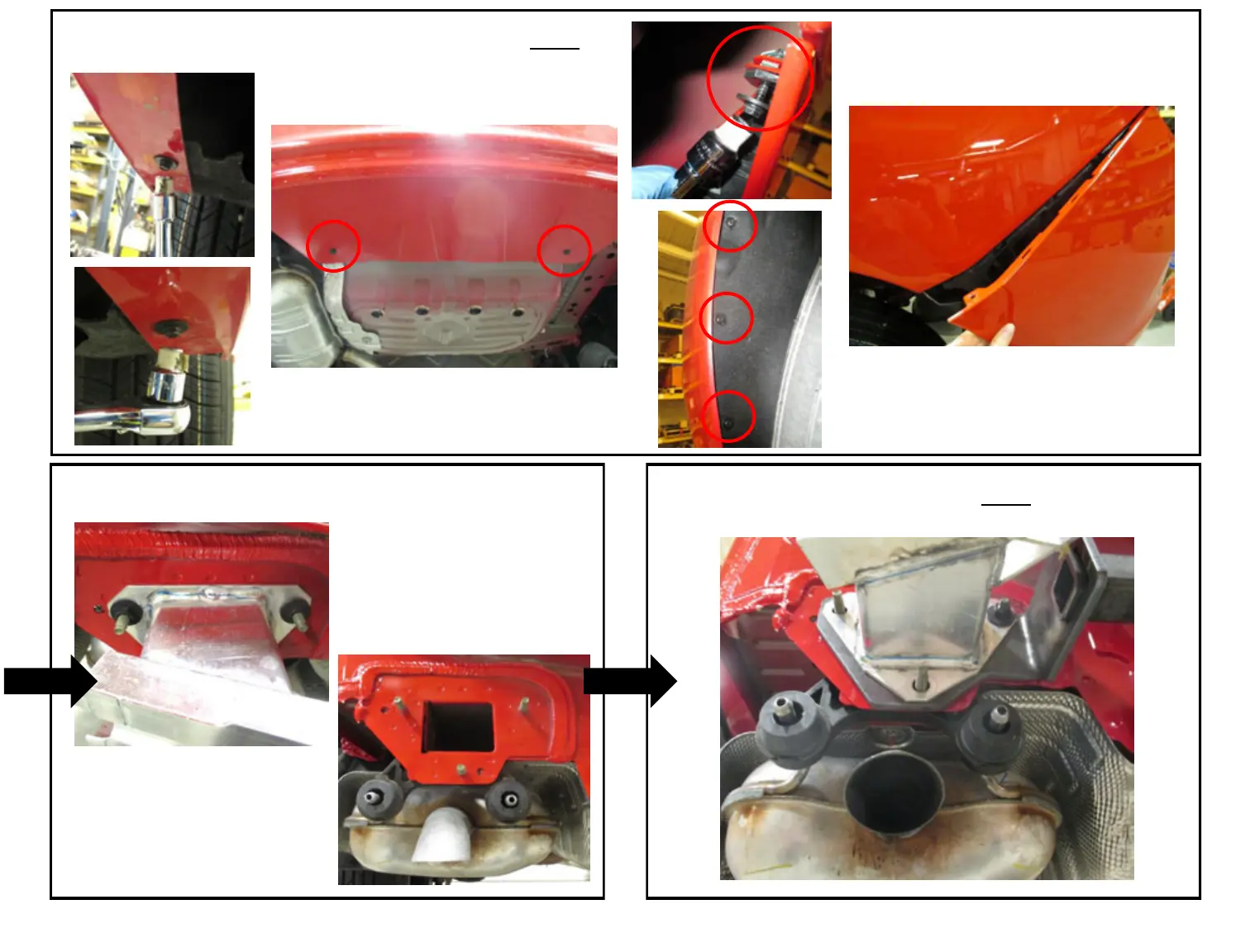

1. Fascia removal – use 7 mm socket to remove (4) bolts from bottom fascia. Use T15
driver and 7 mm socket to remove (4) bolts from wheel well each side, see Figure 2.
Open the trunk and gently remove the fascia. Carefully set the bumper fascia aside.
2. Bumper beam removal – use 15mm socket to remove (3) flange nuts from
bumper plate each side. Gently remove bumper beam and set it aside.
3. Hitch installation – raise the hitch and hang it on the studs on the end panel.
Raise the bumper beam to sandwich the hitch, see Figure 1. Reuse the bumper
flange nuts and loosely fasten them.
