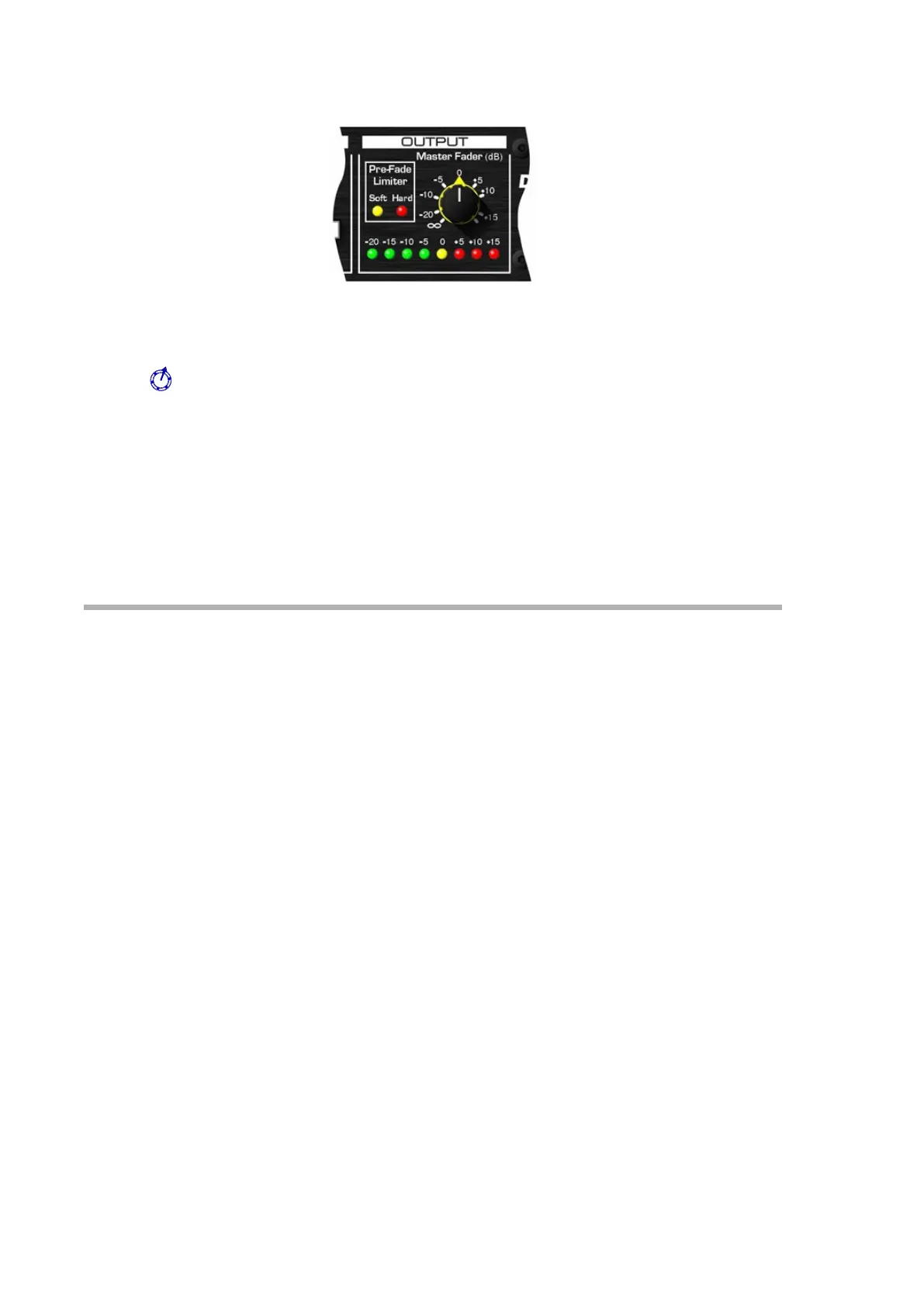

OUTPUT STAGE
Master Fader Sets the overall output level of the MX60 from off to
+15dBu. An eight-section LED mater shows the output level
from ! 20dBu to +15dBu. (Levels referenced to +4dBu.)
Pre Fade Limiter
Hard The output stage includes a fixed threshold limiter set at
+16dBu. A red LED lights when hard limiting is taking place
Soft An amber LED will illuminate for soft limiting to show that
the signal level is approaching the hard limit point.
12
